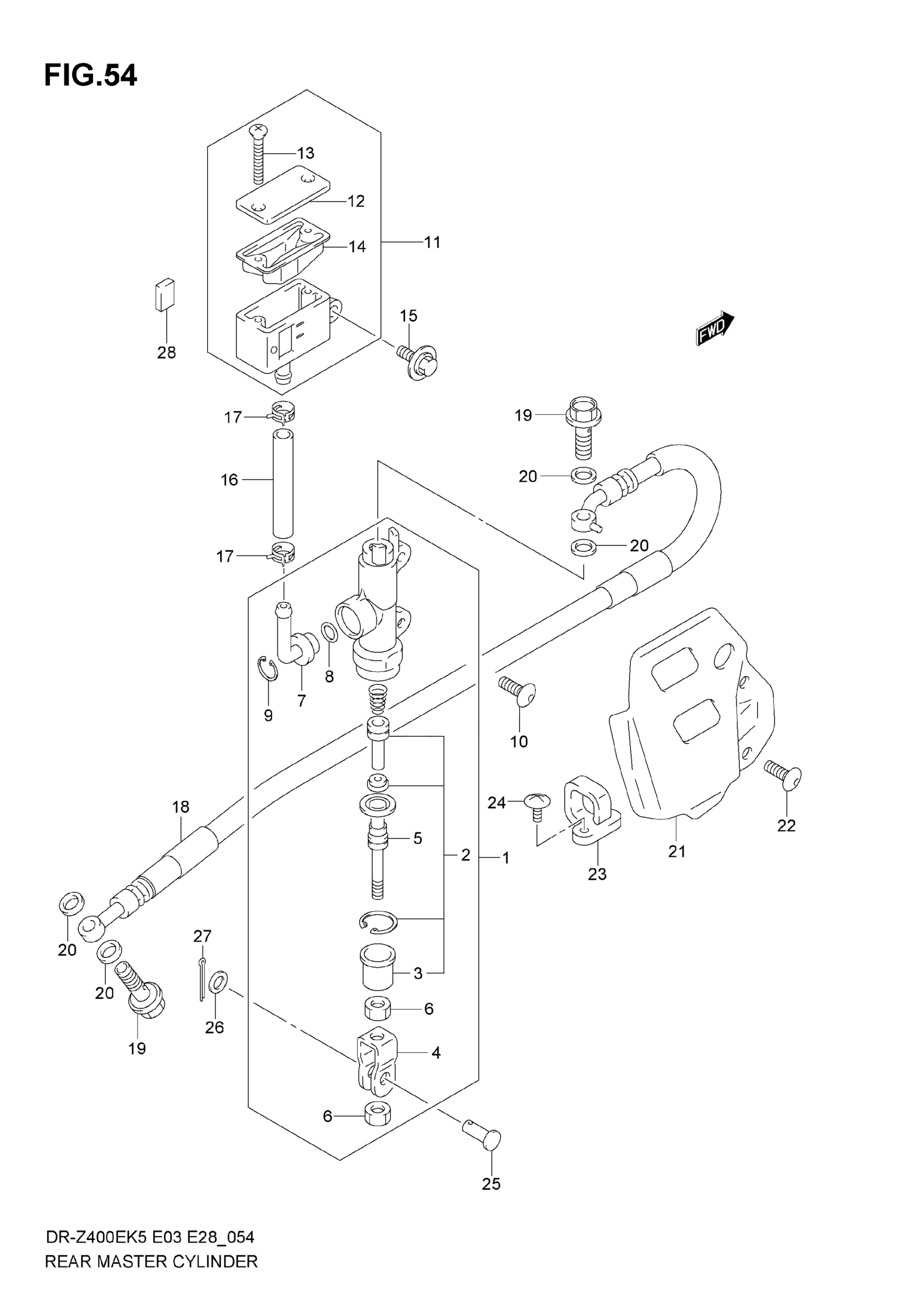

Suzuki DR-Z400E (2007) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-29F00

$301.50

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-29F00

$21.77

5

ROD, PUSH

69670-36E00

$29.65

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

11

TANK ASSY,RESER | Includes Item(s) 12 - 14 This part replaces 69740-36E00.

69740-36E01

$69.88

12

CAP

59669-27C01

$23.32

13

SCREW

69689-36E00

$3.23

14

DIAPHRAGM

59667-14500

$10.12

15

BOLT (6X16)

09116-06170

$2.50

16

HOSE, RESERVOIR TANK (L:85) | CUT 85!70

59731-42E00

$16.65

17

CLAMP, RESERVOIR HOSE

69735-00B20

$4.10

18

HOSE, REAR BRAKE This part replaces 69480-29F00.

69480-29F02

$149.48

19

UNION This part replaces 09360-10042.

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

GUARD, REAR MASTER CYLINDER

43571-36E20

$58.92

22

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

23

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$6.17

24

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

25

PIN

09200-08048

$2.92

26

WASHER This part replaces 09160-08119.

09160-08090

$2.39

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

28

CUSHION, TANK (9X17X4)

69749-29F00

$5.17
