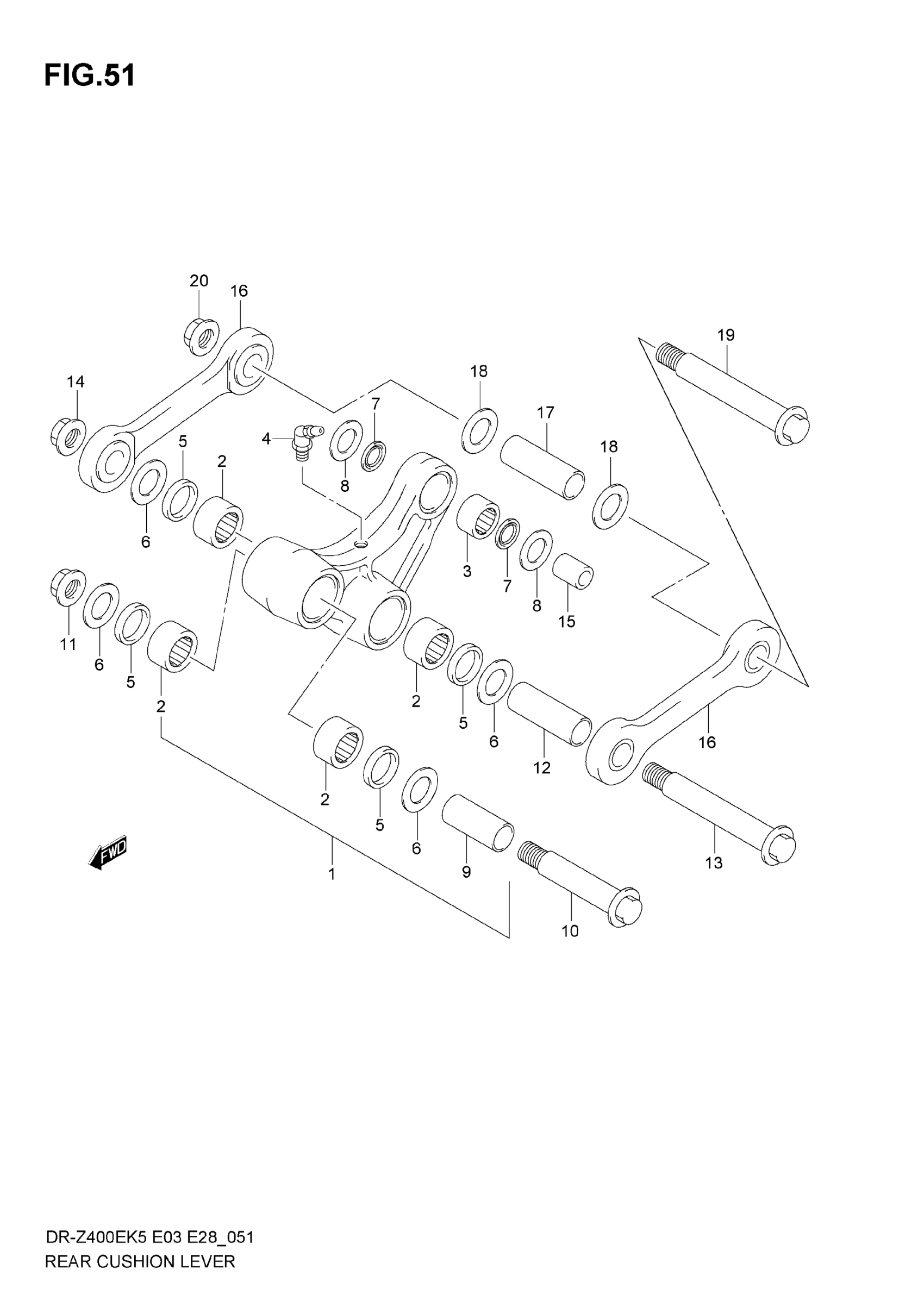

Suzuki DR-Z400E (2007) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,RR CU | Includes Item(s) 2 - 4 This part replaces 62600-29820.

62600-29821

Unavailable

2

BEARING (20X27X15)

09263-20086

$16.47

3

BEARING (16X22X12)

09263-16033

$20.26

4

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

5

SEAL, DUST (19X27X4)

62624-14500

$6.01

6

THRUST WASHER (20X32.5X1.6)

62647-37E00

$4.34

7

OIL SEAL (16X22X2.5)

09284-16005

$6.95

8

WASHER, THRUST LVR CUSHION RR

62685-37E00

$4.43

9

SPACER, FRONT (15X20X45)

62317-37E10

$24.77

10

BOLT, FRONT (12X76)

62658-37E01

$15.95

11

NUT

09159-12056

$7.37

12

SPACER, CENTER (15X20X57.4)

62646-37E10

$24.77

13

BOLT, CENTER (12X100)

62621-37E01

$22.92

14

NUT

09159-12056

$7.37

15

SPACER, RR CUSHION LEVER RR

62684-36E10

$15.42

16

ROD, REAR CUSHION LEVER

62640-37E11

$181.73

17

SPACER, ROD (15X20X57.4)

62646-37E10

$24.77

18

THRUST WASHER (20X32.5X1.6)

62647-37E00

$4.34

19

BOLT, ROD (12X100)

62621-37E01

$22.92

20

NUT

09159-12056

$7.37
