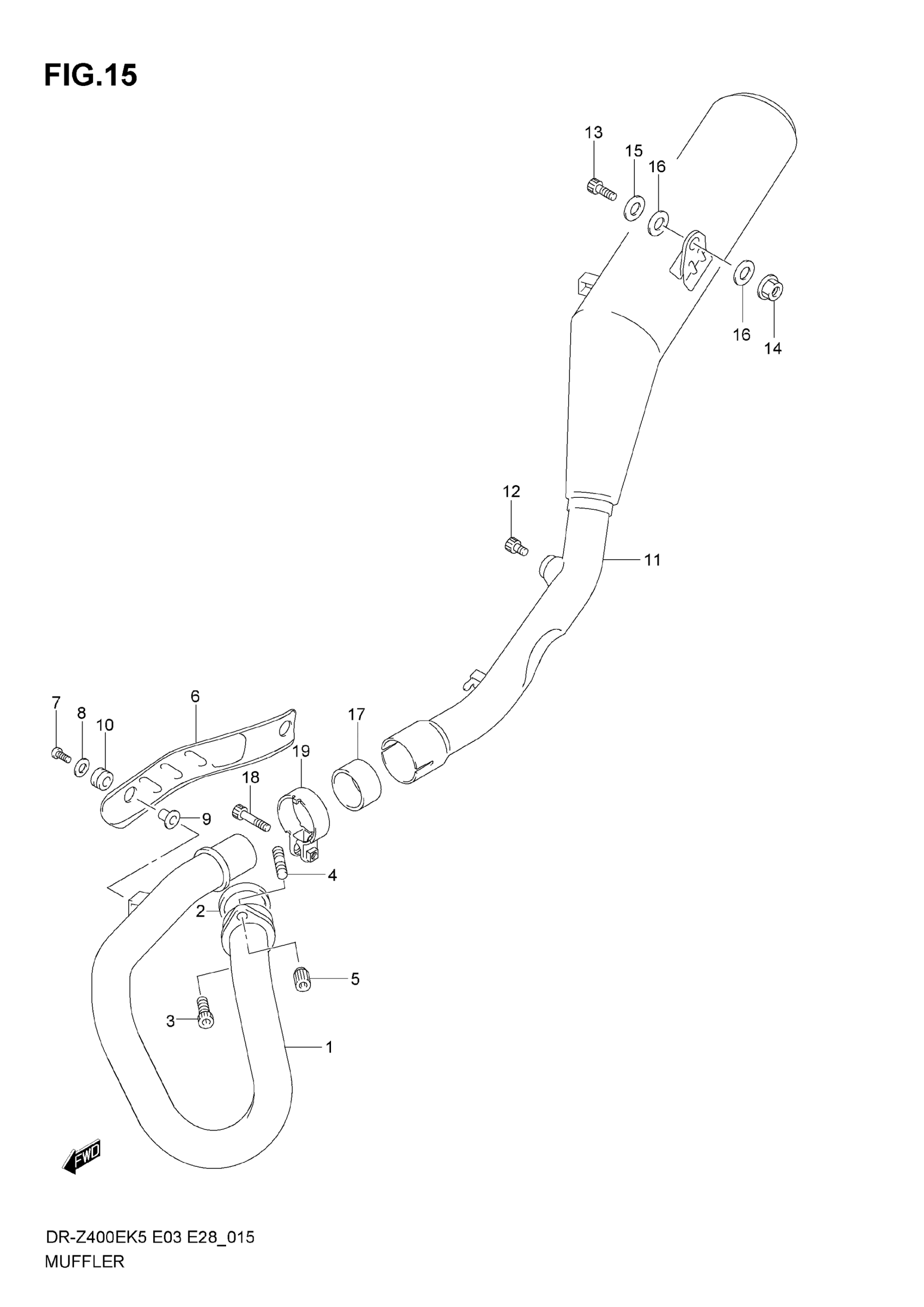

Suzuki DR-Z400E (2007) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-29F00

$292.98

2

GASKET

14181-29E02

$16.39

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

STUD BOLT This part replaces 01421-08163.

01421-0816A

$1.78

5

NUT

09159-08112

$5.83

6

COVER, EXHAUST PIPE | MODEL K5 This part replaces 14180-29F20.

14180-29F30

$56.02

6

COVER, EXHAUST PIPE | MODEL K6/K7

14180-29F30

$56.02

7

SCREW (6X12)

09139-06109

$2.73

8

WASHER (6.5X18X1)

09160-06056

$1.72

9

SPACER, EXH PIPE COVER | MODEL K5

09180-06325

$3.79

9

SPACER | MODEL K6/K7

14185-07G00

$3.76

10

CUSHION (8.4X18X6)

09320-08066

$8.24

11

BODY, MUFFLER

14310-29F51

Unavailable

12

BOLT This part replaces 07130-08163.

07130-0816A

$3.16

13

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

14

NUT This part replaces 08319-31083.

08319-3108A

$2.32

15

WASHER, MUFFLER SUPPORT REAR

09160-08501

$2.28

16

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

17

CONNECTOR

14771-29F00

$30.43

18

BOLT This part replaces 07120-08403.

07120-0840A

$3.42

19

CLAMP, CONNECTOR

14459-29F00

$23.85
