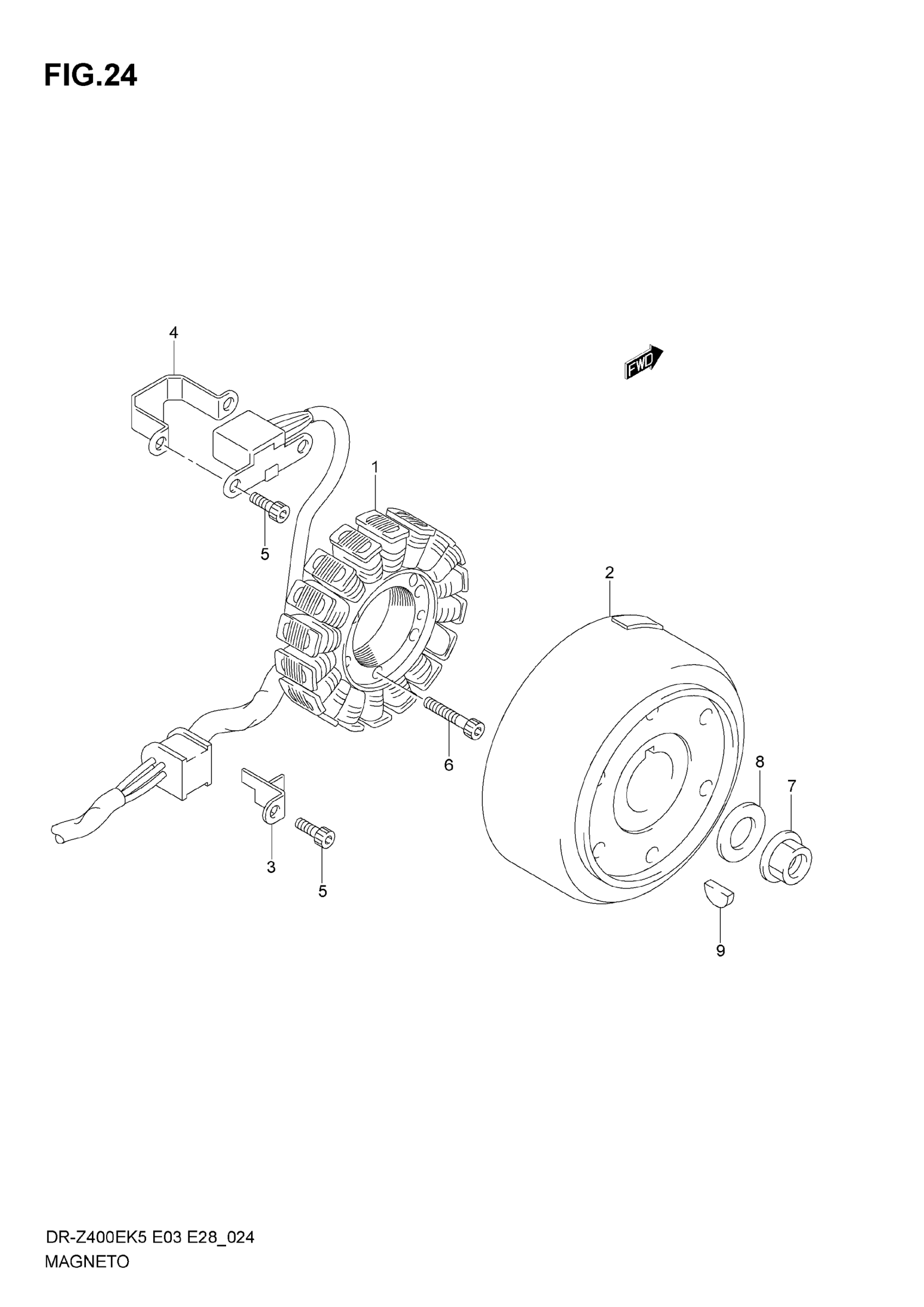

Suzuki DR-Z400E (2007) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-29F00

$609.67

2

ROTOR ASSY

32102-29F00

$622.50

3

CLAMP, MAG LEAD, NO.1

32371-13E00

$3.56

4

CLAMP, MAG PULSER LEAD

32371-14D01

$5.45

5

BOLT This part replaces 07130-05123.

07130-0512B

$2.50

6

BOLT This part replaces 07130-05253.

07130-0525B

$2.52

7

NUT

09159-12055

$3.20

8

WASHER (12X27X2.0)

09160-12051

$2.42

9

KEY

09420-04008

$3.42
