Description

Price

1

RELAY ASSY STARTING MOTOR This part replaces 31800-29F00.

31800-29F01

$63.15

2

BRACKET, STARTING MOTOR

31811-29F00

$7.12

3

PROTECTOR, STARTING MOTOR

31812-29F00

$5.67

4

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.49

5

BOLT, RELAY BRACKET

01550-0612A

$1.97

6

RECTIFIER ASSY

32800-29F00

$267.85

7

BOLT This part replaces 02162-0620A.

02162-0620C

$1.71

8

CDI UNIT | DR-Z400EK5/K6/K7 E3/E28

32900-29F10

$743.23

8

CDI UNIT | DR-Z400EK5/K6/K7 E33

32900-29F60

Unavailable

9

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (50X30)

33651-37000

$4.48

10

COIL ASSY, IGNITION

33410-09F00

$95.54

11

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

12

CAP ASSY, SPARK PLUG

33510-48B10

$31.77

13

SEAL, SPARK PLUG CAP

33541-23E01

$6.34

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

15

COVER,SPARK PLUG CAP

33543-33E01

$4.54

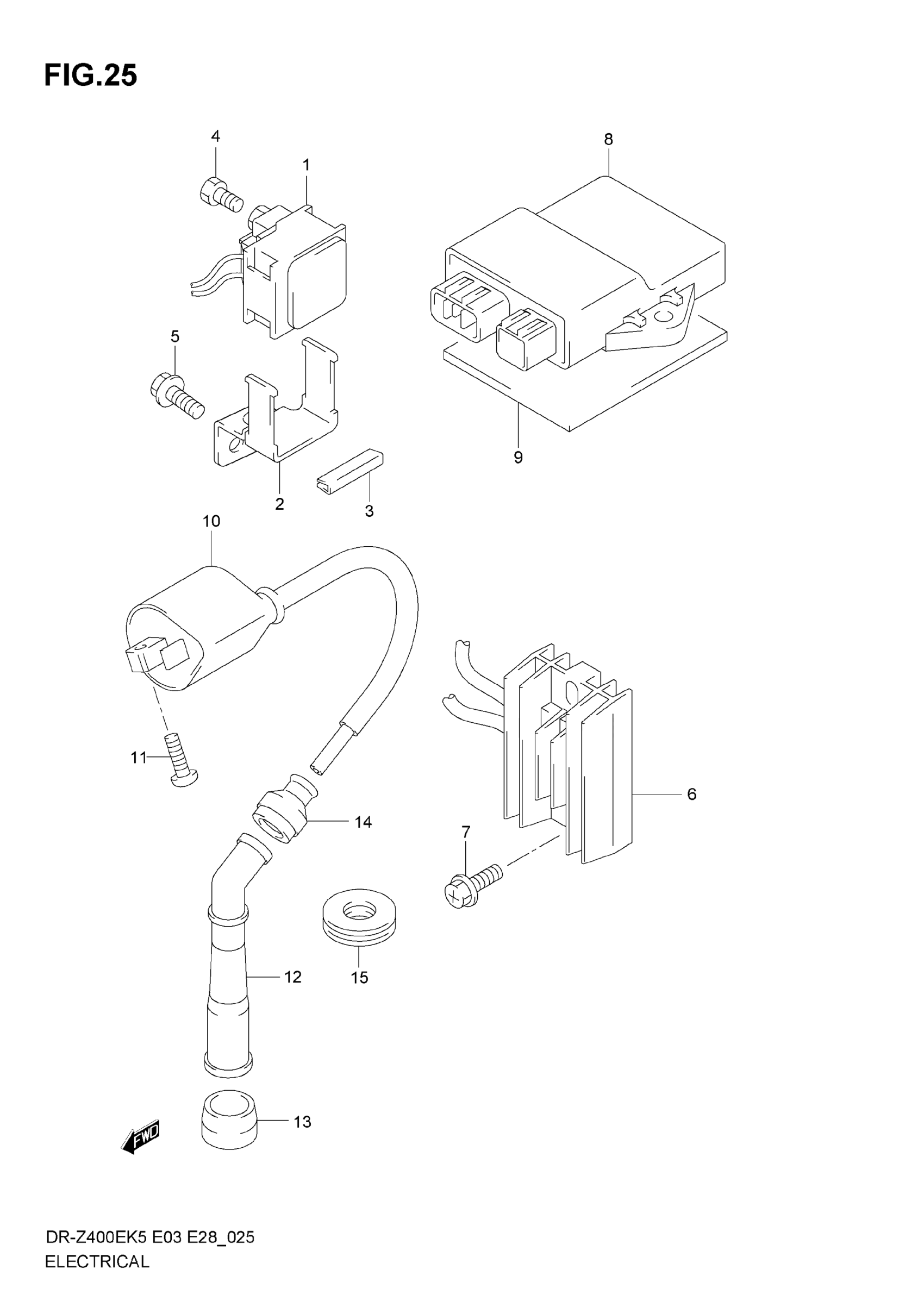

Suzuki DR-Z400E (2007) ELECTRICAL Diagram
