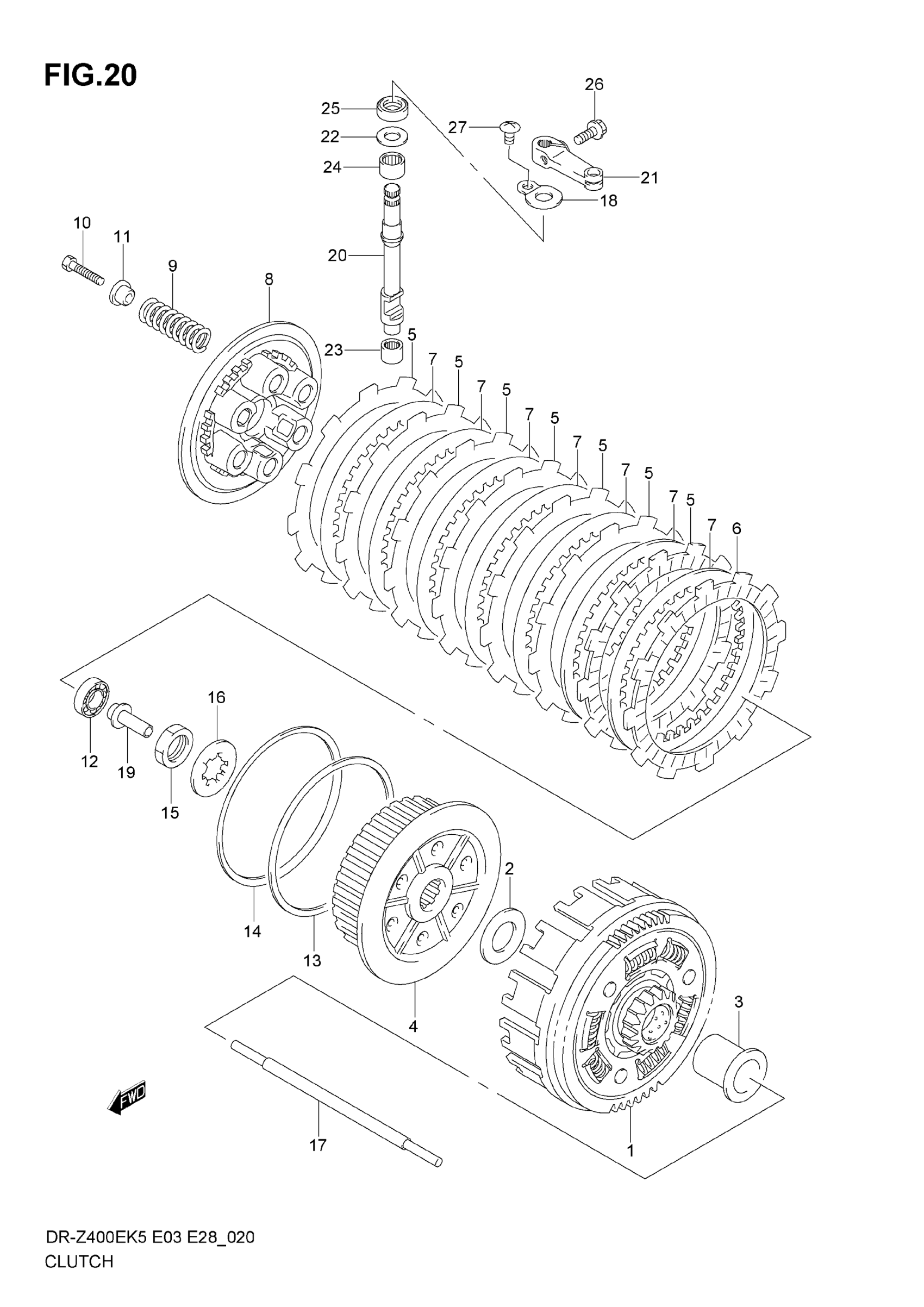

Suzuki DR-Z400E (2007) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:74/16

21200-29F10

$406.35

2

WASHER

08211-22425

$5.83

3

SPACER, PRIMARY DRIVEN

21251-29F00

$53.18

4

HUB, SLEEVE

21410-29F00

$143.92

5

PLATE, DRIVE NO.1

21441-29F00

$22.80

6

PLATE, DRIVE NO.2

21442-29F00

$22.80

7

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$11.28

8

DISC, PRESSURE

21462-29F00

$62.80

9

SPRING

21413-29F00

$6.68

10

BOLT

07130-0630A

$3.72

11

WASHER

21414-29F00

$6.25

12

BEARING, PRESSURE DISK | 12X28X8

09262-12001

$18.47

13

WASHER

09160-00003

$10.34

14

WASHER, WAVE

09164-00008

$18.59

15

NUT

09140-20001

$3.37

16

LOCK WASHER

09167-22021

$1.78

17

ROD, CLUTCH PUSH

23110-29F00

$23.48

18

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.13

19

PIECE, CL PUSH

23121-29F00

$26.12

20

CAM SHAFT, CL RLSE

23122-29F00

$48.37

21

ARM, CL RLSE

23271-20902

$29.60

22

WASHER, CL RLSE | 10X20X1

09181-10195

$1.99

23

BEARING, CL RLSE LOW | 10X14X10

09263-10014

$13.52

24

BEARING, CL RLSE UP | 12X16X10

09263-12024

$12.67

25

SEAL, CL RLSE ARM | 10X20X6

09282-10012

$7.98

26

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

27

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49
