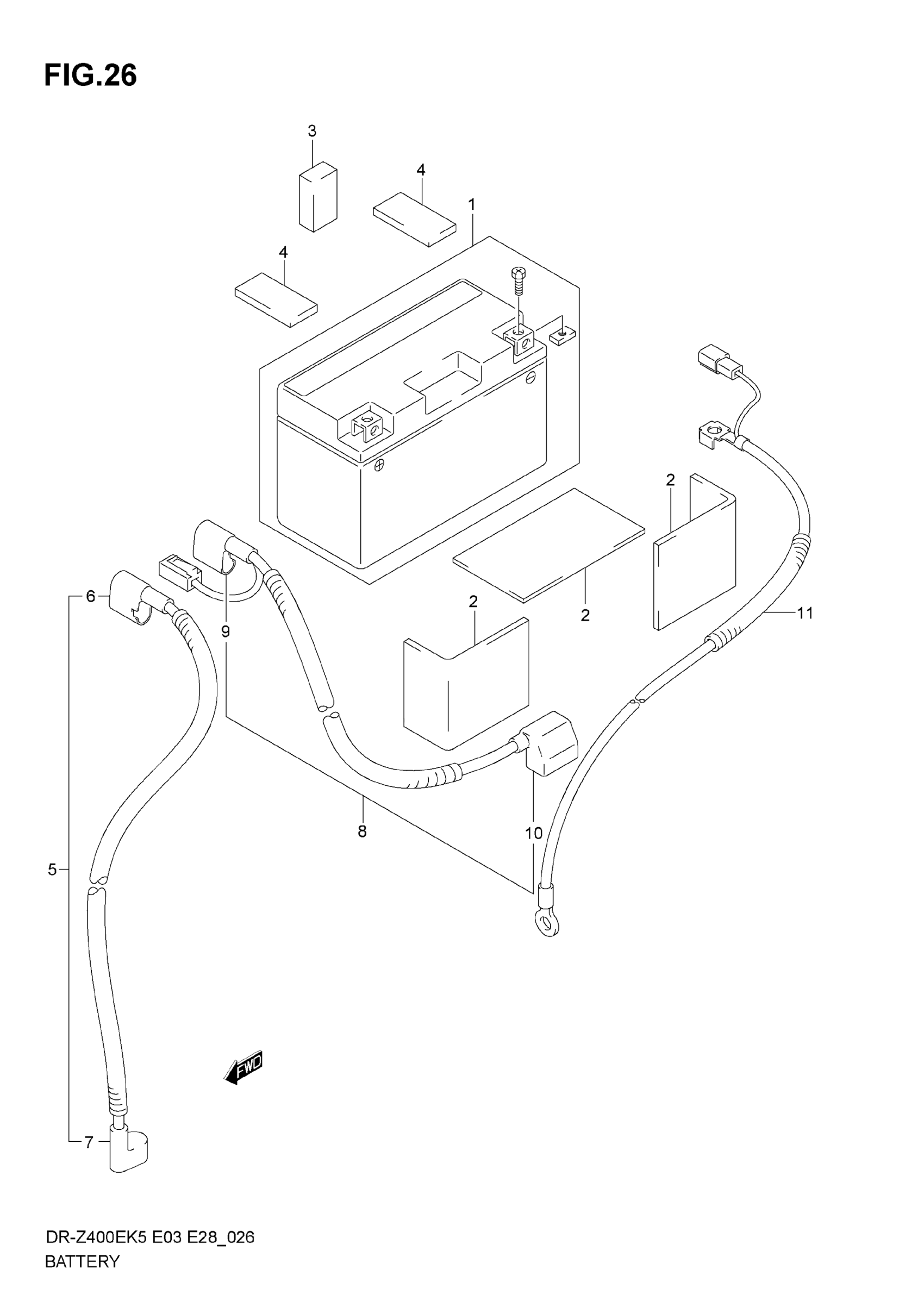

Suzuki DR-Z400E (2007) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,6AH) | YT7B-BS

33610-29F20

$105.06

2

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (115X50)

33651-37000

$4.48

3

CUSHION, REAR FENDER REAR | CUT AS REQUIRED PROFILE (50X30) This part replaces 33652-08420.

33651-37000

$4.48

4

PROTECTOR (50X42X2)

51553-15D40

$7.18

5

WIRE, STARTER MOTOR LEAD | Includes Item(s) 6 - 7

33810-29F00

$62.07

6

CAP, STARTER RELAY

31861-29F00

$7.63

7

CAP, STARTER MOTOR

31861-29F20

Unavailable

8

WIRE, BATTERY PLUS LEAD | Includes Item(s) 9 - 10

33820-29F00

$65.18

9

CAP, STARTER RELAY

31861-29F10

$7.35

10

CAP, BATTERY PLUS

33624-29F00

$6.55

11

WIRE, BATTERY MINUS LEAD

33860-29F00

$50.10
