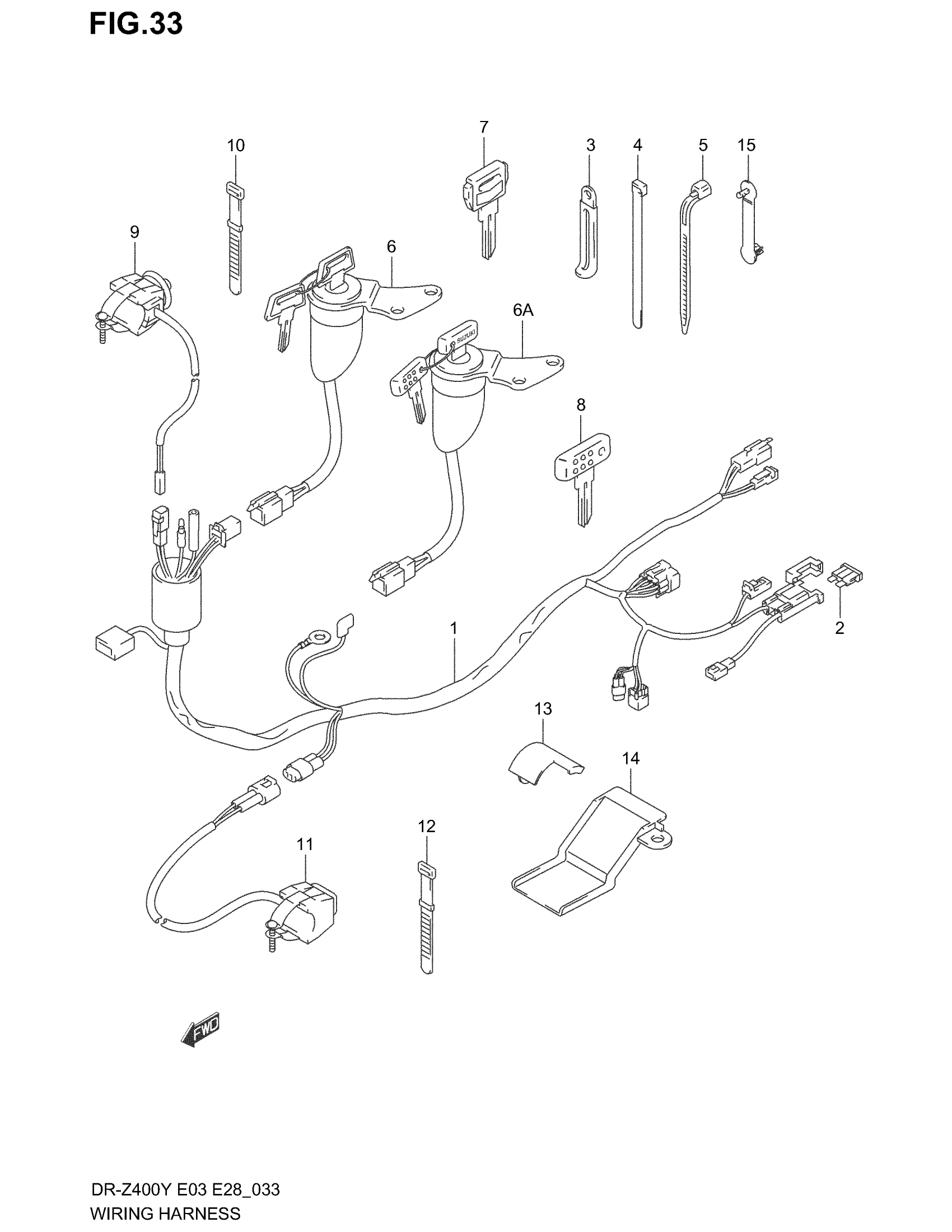

Suzuki DR-Z400 (2004) WIRING HARNESS (DR-Z400EY/EK1/EK2/EK3/EK4) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL Y/K1

36610-29F10

Unavailable

1

HARNESS,WIRING | MODEL K2/K3/K4; Includes Item(s) 2 This part replaces 36610-29F70.

36610-29F71

$224.76

2

FUSE (10A)

09481-10101

$0.68

3

CLAMP (L:45)

09404-06429

$1.82

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

4

CLAMP (L:145)

09407-14407

$2.80

5

CLAMP (L:125)

09407-14403

$2.24

5

CLAMP (L:165)

09407-18402

$2.21

5

CLAMP (L:235)

09407-25401

$4.21

6

SWITCH ASSY, IGNITION | MODEL Y/K1/K2 This part replaces 37110-29F20.

37110-29F50

$107.10

6A

SWITCH ASSY, IGNITION | MODEL K3/K4

37110-29F50

$107.10

7

KEY, BLANK (TYPE:C) | OPT,MODEL Y/K1/K2

37146-03A00

$9.32

7

KEY, BLANK (TYPE:D) | OPT,MODEL Y/K1/K2

37146-03A10

$13.13

7

KEY, BLANK (TYPE:E) | OPT,MODEL Y/K1/K2

37146-03A20

$13.65

7

KEY, BLANK (TYPE:F) | OPT,MODEL Y/K1/K2

37146-03A30

$9.68

8

KEY, BLANK (TYPE:C) | OPT,MODEL K3/K4

37146-01F00

$8.31

8

KEY, BLANK (TYPE:D) | OPT,MODEL K3/K4

37146-01F10

$8.31

8

KEY, BLANK (TYPE:E) | OPT,MODEL K3/K4

37146-01F20

$8.56

8

KEY, BLANK (TYPE:F) | OPT,MODEL K3/K4

37146-01F30

$12.13

9

SWITCH ASSY, STARTER

37310-29F00

$83.02

10

CLAMP

09407-12402

$2.80

11

SWITCH ASSY,ENGINE STOP

37820-36E00

$22.19

12

CLAMP

09407-12402

$2.80

13

PROTECTOR, WIRING HARNESS

36611-29F10

Unavailable

14

PROTECTOR, WIRING HARNESS

36611-29F00

$10.17

15

CLAMP, WIRING HARNESS

36651-48E00

$3.67
