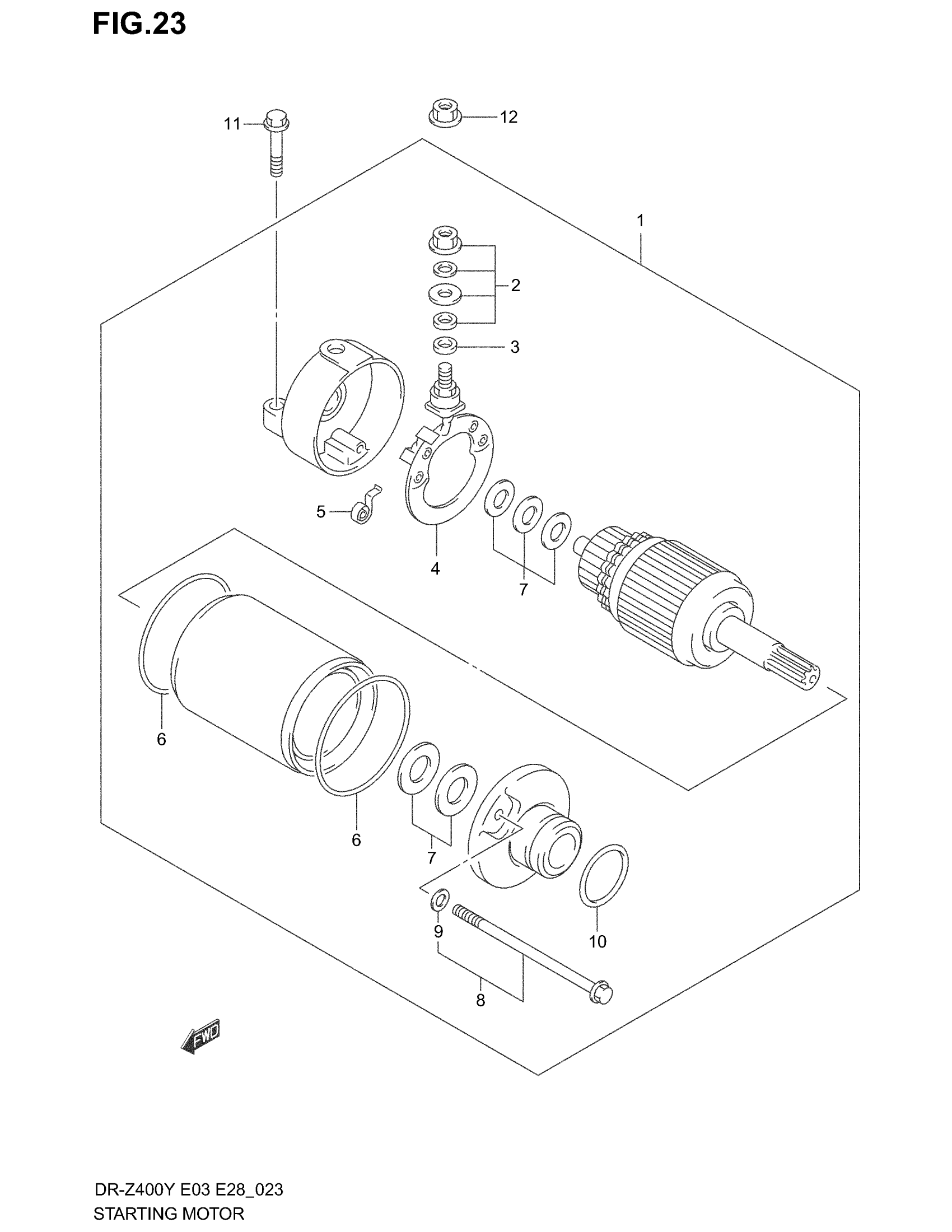

Suzuki DR-Z400 (2004) STARTING MOTOR (DR-Z400EY/EK1/EK2/EK3/EK4) Diagram

#

Description
Price

1

MOTOR ASSY,STARTING | Includes Item(s) 2 - 10

31100-29F00

$448.53

2

BRUSH TERMINAL SET

31130-13E00

$44.18

3

O RING

31143-49040

$3.71

4

BRUSH HOLDER SET

31132-13E00

$56.75

5

BRUSH SPRING

31135-31300

$4.96

6

O RING

31264-13E00

$6.68

7

WASHER SET

31170-19B10

$12.57

8

SET BOLT

31280-19F00

$20.45

9

O RING

31156-13E00

$4.35

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80
