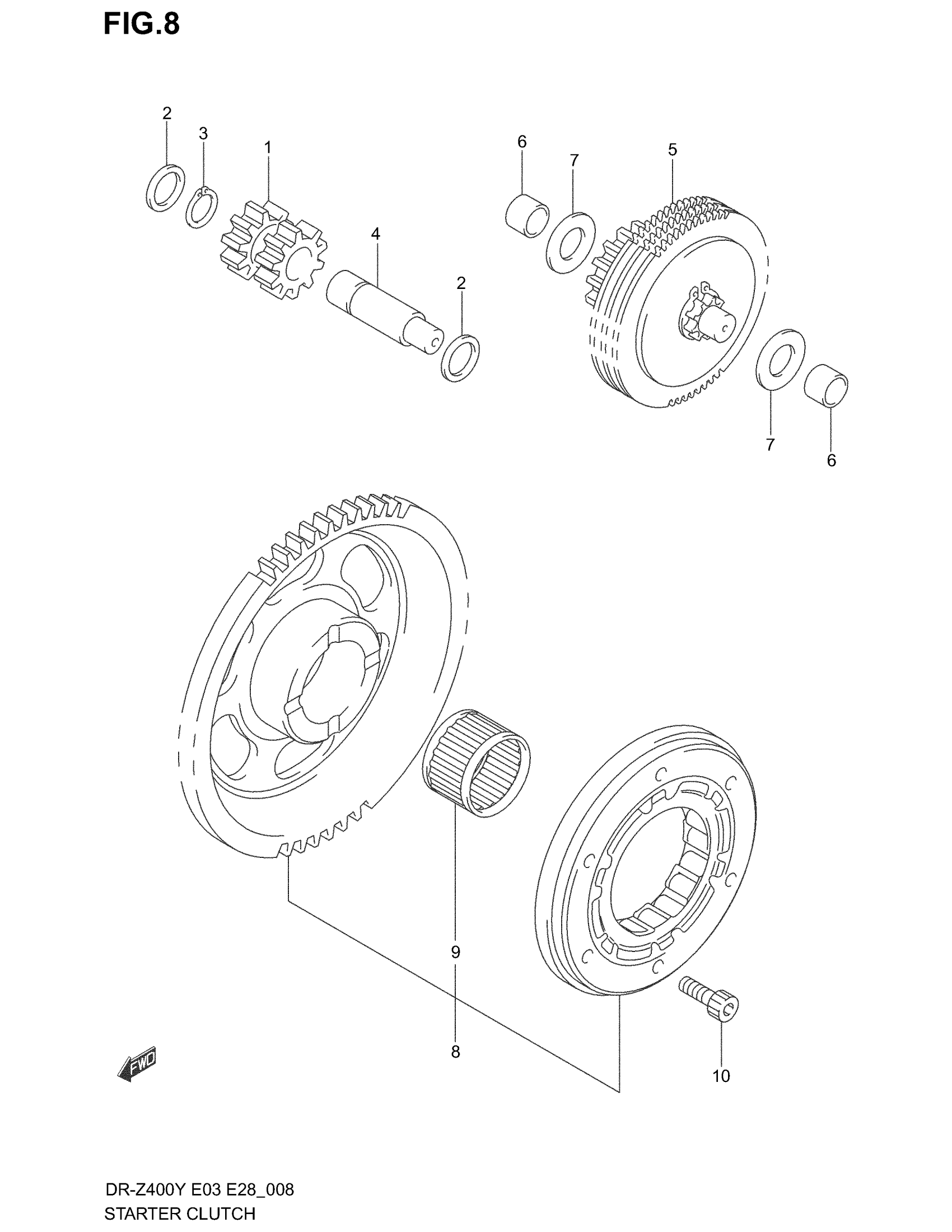

Suzuki DR-Z400 (2004) STARTER CLUTCH (DR-Z400EY/EK1/EK2/EK3/EK4) Diagram

GEAR, STARTER IDLE NO.1

12611-29F00

$59.87

WASHER

09181-12130

$2.06

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

PIN

12615-29F00

$20.85

LIMITER ASSY, STARTER IDLE GEAR

12600-29F00

$284.18

BUSH LIMITER GEAR SHAFT

12618-31D01

$22.62

WASHER

08211-10221

$2.28

CLUTCH SET, STARTER | Includes Item(s) 9

12600-29810

$233.93

BEARING (25X31X19)

09263-25049

$28.61

BOLT This part replaces 07130-06163.

07130-0616B

$2.39
