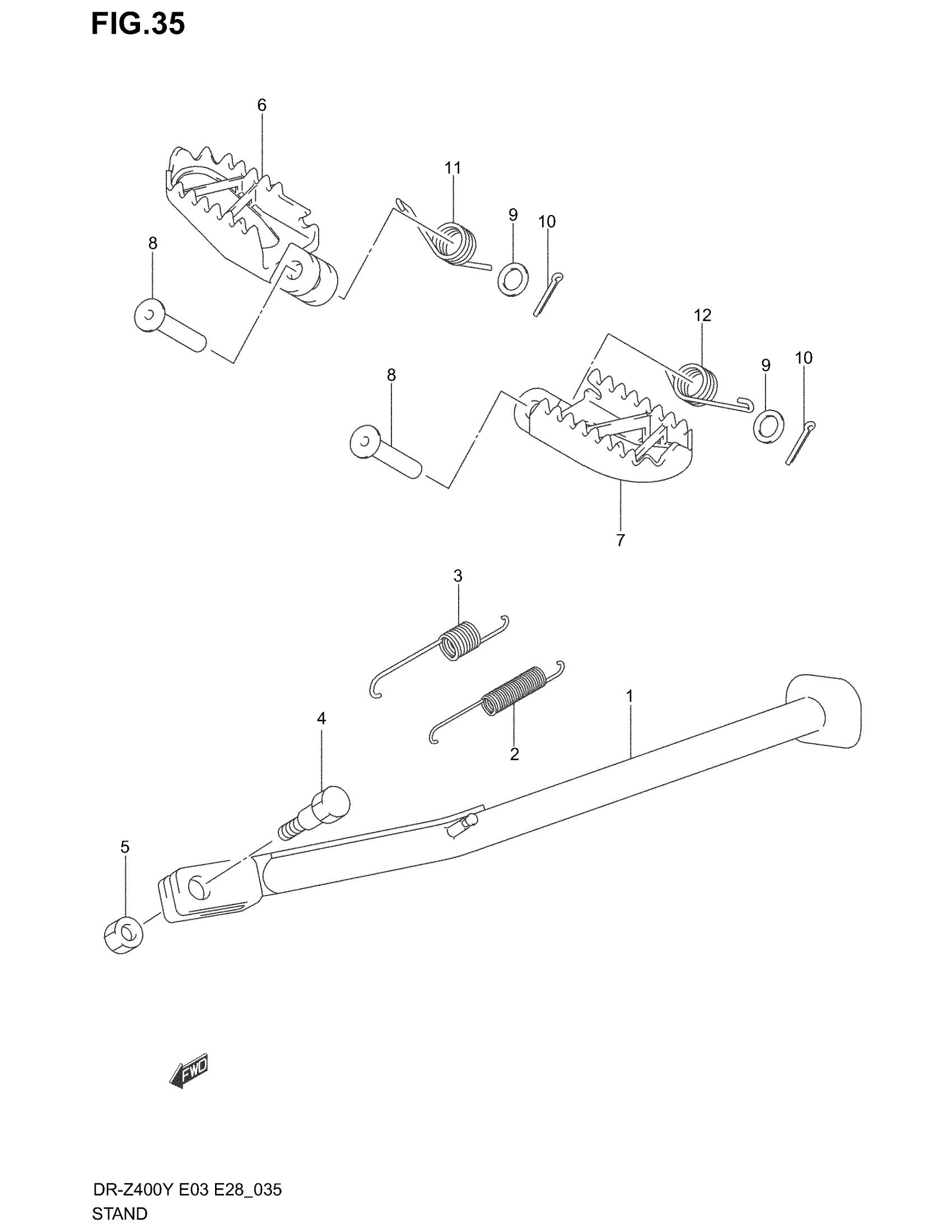

Suzuki DR-Z400 (2004) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-44E10

$141.77

2

SPRING, INNER

09443-12036

$7.84

3

SPRING, OUTER

09443-19010

$6.51

4

BOLT

09111-10060

$4.11

5

NUT, PROP STAND

42321-03FK0

$5.17

6

FOOTREST,R(BLAC | MODEL Y/K1 This part replaces 43551-36E00-019.

43551-36E01-019

Unavailable

6

FOOTREST, RH (BLACK) | MODEL K2/K3/K4

43551-36E40-019

Unavailable

7

FOOTREST, LH (BLACK) | MODEL Y/K1

43561-36E00-019

Unavailable

7

FOOTREST, LH (BLACK) | MODEL K2/K3/K4

43561-36E40-019

$145.32

8

PIN

09200-10019

$6.83

9

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

10

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

11

SPRING, RH

09448-18030

$5.36

12

SPRING, LH

09448-18029

$5.36
