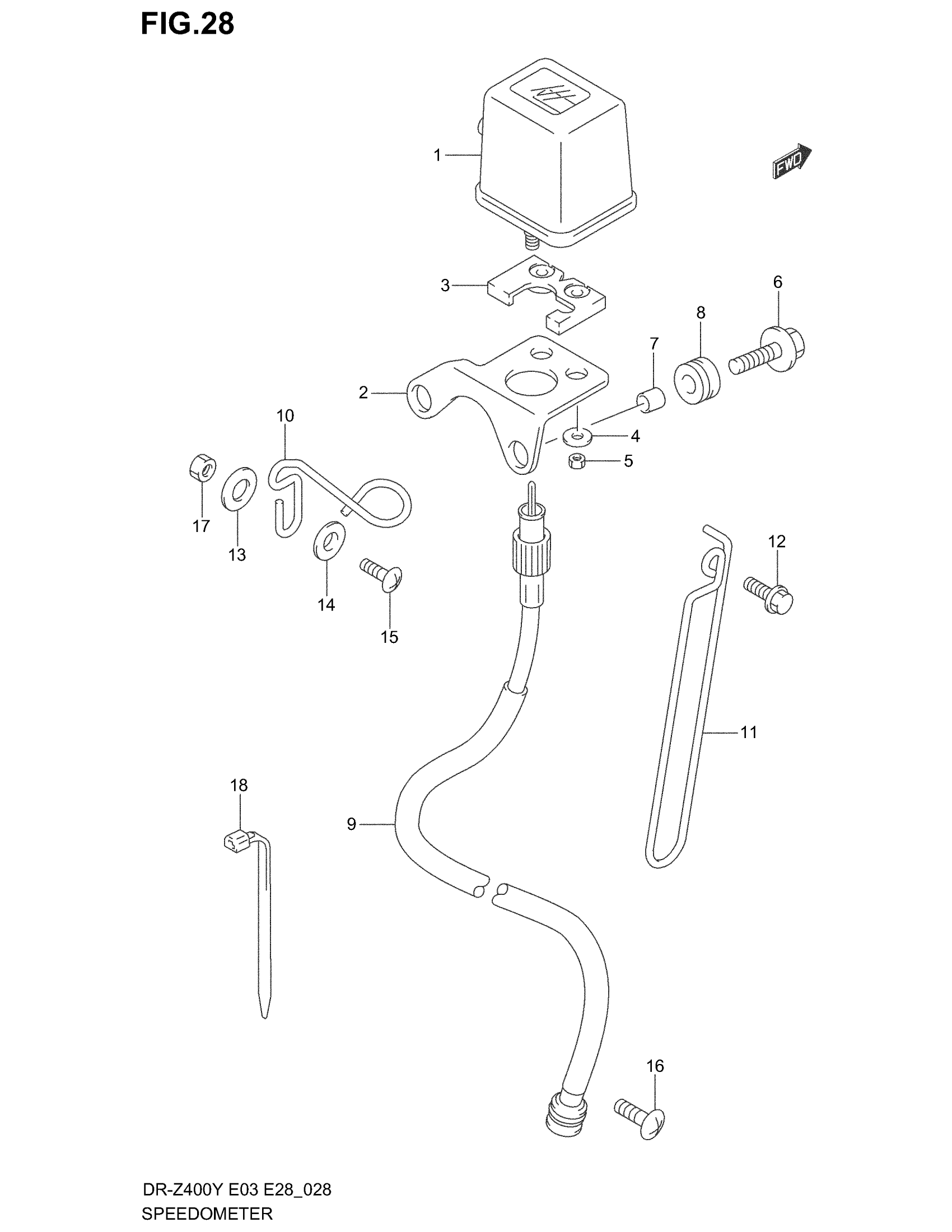

Suzuki DR-Z400 (2004) SPEEDOMETER Diagram

#

Description
Price

1

TRIP METER (MILE/KILO)

34721-05D20

$203.42

1

TRIP METER (KILO) | E28

34721-05D30

Unavailable

2

BRACKET

34725-14D00

$48.38

3

CUSHION This part replaces 34726-05D20.

34726-05D21

$4.07

4

WASHER This part replaces 09160-04017.

09160-04022

$2.15

5

NUT

08310-00047

$2.23

6

BOLT, TRIP METER (6X25)

09118-06086

$3.15

7

SPACER (6.1X8X9.5)

09180-06248

$2.12

8

CUSHION

09320-08501

$3.23

9

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

10

GUIDE, METER CABLE NO.1

34938-03D22

$11.38

11

GUIDE METER CABLE NO.2

34938-14D30

$10.63

12

BOLT, METER CABLE NO.2 | 6X20

09116-06167

$2.19

13

WASHER, METER CABLE NO.1 | 6.5X18X1.6

09160-06109

$1.49

14

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

15

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

16

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

17

NUT This part replaces 08310-00063.

08310-0006A

$1.84

18

CLAMP, SPEEDOMETER CABLE | L:235

09407-25401

$4.66
