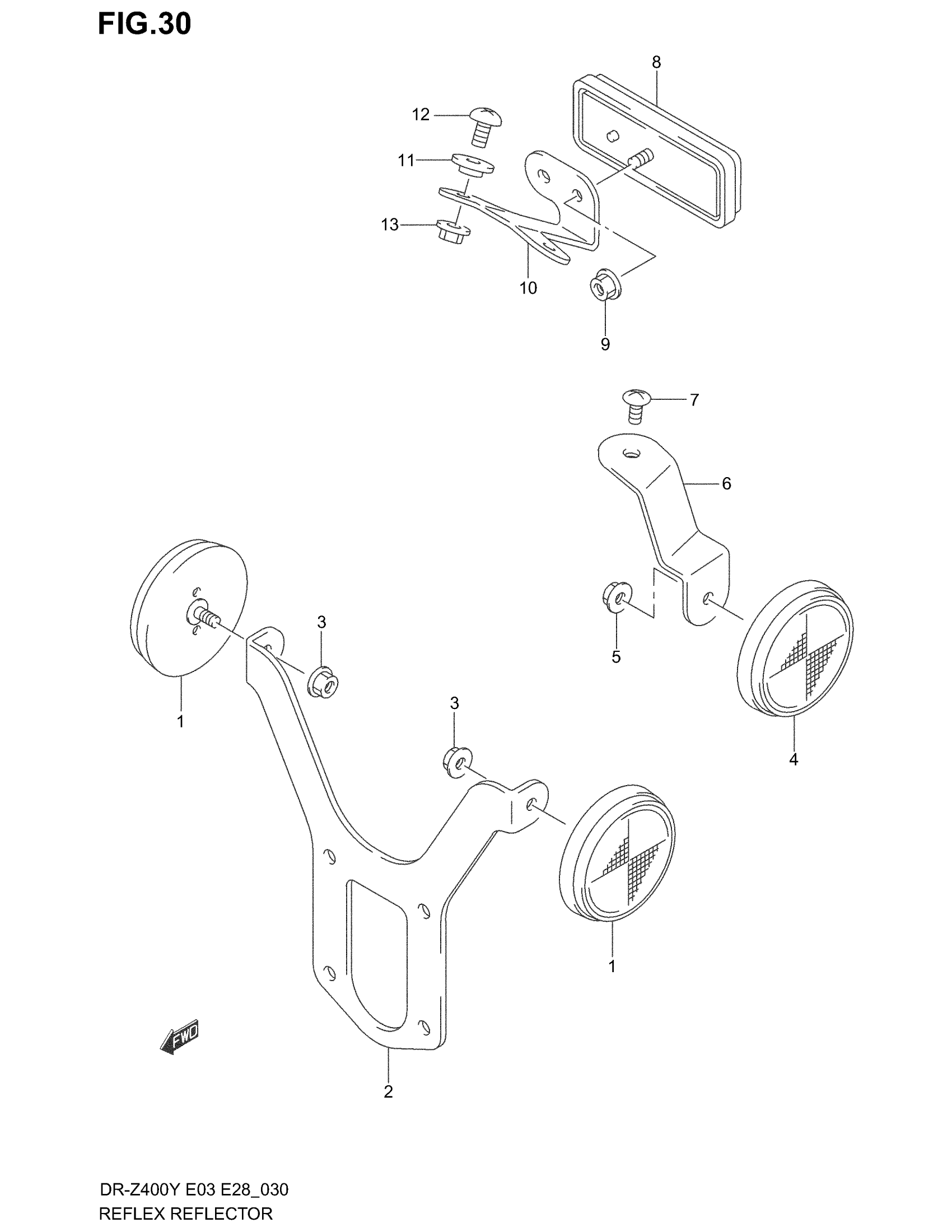

Suzuki DR-Z400 (2004) REFLEX REFLECTOR (E28) Diagram

#

Description
Price

1

REFLEX REFLECTOR, FR SIDE

35950-14A00

$16.94

2

BRACKET, FR SIDE

35956-29F00

$14.92

3

NUT This part replaces 08316-10053.

08316-1005A

$2.19

4

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

5

NUT This part replaces 08316-10053.

08316-1005A

$2.19

6

BRACKET, RR SIDE RH

35975-29F00

Unavailable

6

BRACKET, RR SIDE LH

35976-29F00

Unavailable

7

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

8

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$20.88

9

NUT This part replaces 08316-10053.

08316-1005A

$2.19

10

BRACKET, REAR RR

35966-29F00

Unavailable

11

WASHER, REAR RR BKT | 5.5X16X1.20

09160-05037

$1.49

12

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

13

NUT This part replaces 08316-10053.

08316-1005A

$2.19
