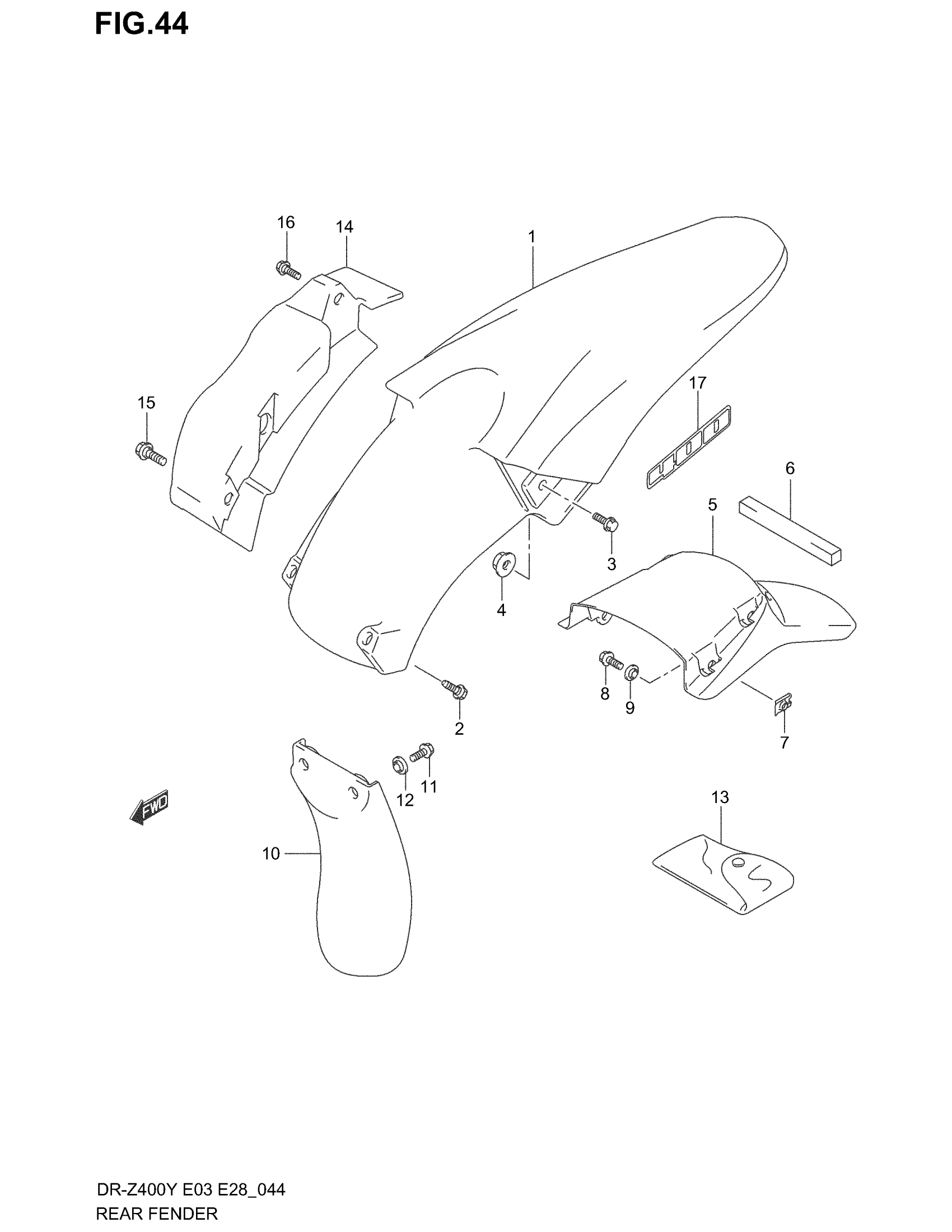

Suzuki DR-Z400 (2004) REAR FENDER (MODEL Y/K1/K2/K3) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) | DR-Z400Y E3

63113-29F00-25Y

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400K1 E3 This part replaces 63113-29F00-YR1.

63113-29F00-YU1

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400K2/K3 E3

63113-29F00-YU1

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400EY E3

63113-29F10-25Y

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400EK1 E3 This part replaces 63113-29F10-YR1.

63113-29F10-YU1

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400EK2/EK3 E3

63113-29F10-YU1

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400EY E28

63113-29F30-25Y

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400EK1 E28

63113-29F30-YR1

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400EK2/EK3 E28

63113-29F30-YU1

Unavailable

2

BOLT, FRONT

09111-06066

$2.64

3

BOLT (6X18) | MODEL Y/K1 This part replaces 63161-35F00.

09111-06081

$3.85

3

BOLT, CENTER | MODEL K2/K3

09111-06081

$3.85

4

NUT This part replaces 08319-31063.

08319-3106A

$2.01

5

EXTENSION, REAR FENDER | E3

63311-29F00

$57.83

5

EXTENSION, REAR FENDER | E28

63311-29F10

Unavailable

6

CUSHION (10X10X120)

63312-29F00

$7.77

7

NUT, FITTING

09148-05021

$1.88

8

BOLT This part replaces 01547-05103.

01547-0510B

$3.22

9

WASHER This part replaces 09169-05021.

09169-05024

$2.07

10

MUDGUARD, RR FENDER FR

63411-29F00

$27.42

11

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

12

WASHER This part replaces 09169-06045.

09169-06055

$2.02

13

OPEN SPANNER

09813-00039

Unavailable

14

MUDGUARD, REAR FENDER RH

63114-29F00

$41.41

15

BOLT (6X18) | MODEL Y/K1 This part replaces 63161-35F00.

09111-06081

$3.85

15

BOLT, LOWER | MODEL K2/K3

09111-06081

$3.85

16

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

17

EMBLEM, REAR FENDER | MODEL K2/K3

68171-29F00-GY8

Unavailable
