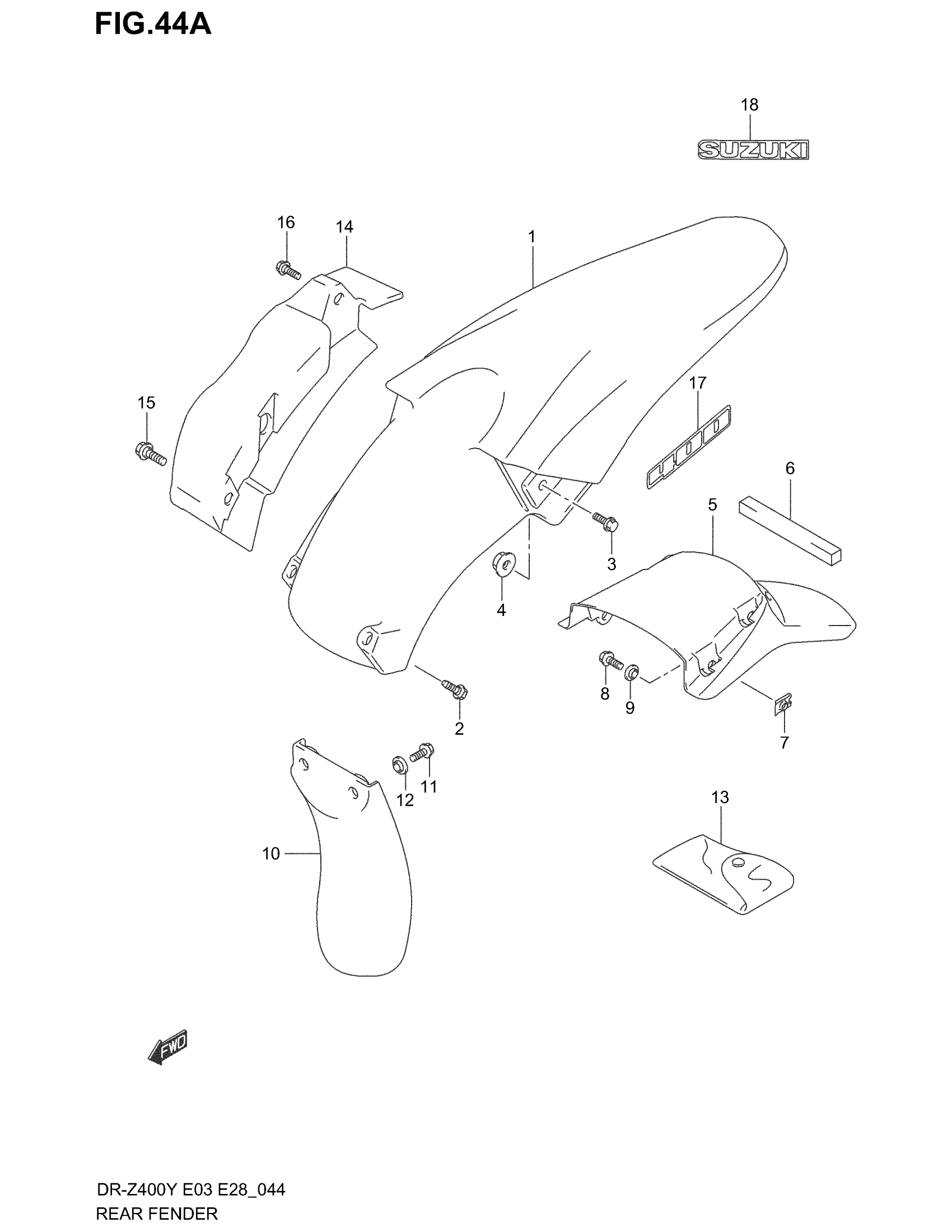

Suzuki DR-Z400 (2004) REAR FENDER (MODEL K4) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) | DR-Z400K4 E3

63113-29F00-YU1

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400EK4 E3

63113-29F10-YU1

Unavailable

1

FENDER, REAR (YELLOW) | DR-Z400EK4 E28

63113-29F30-YU1

Unavailable

2

BOLT, FRONT

09111-06066

$2.62

3

BOLT, CENTER

09111-06081

$4.09

4

NUT This part replaces 08319-31063.

08319-3106A

$2.03

5

EXTENSION, REAR FENDER | E3,E33

63311-29F00

$51.25

5

EXTENSION, REAR FENDER | E28

63311-29F10

Unavailable

6

CUSHION (10X10X120)

63312-29F00

$6.88

7

NUT, FITTING

09148-05021

$1.86

8

BOLT This part replaces 01550-05103.

01550-0510A

$2.43

9

WASHER This part replaces 09169-05021.

09169-05024

$2.06

10

MUDGUARD, RR FENDER FR

63411-29F00

$24.30

11

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

12

WASHER This part replaces 09169-06045.

09169-06055

$2.27

13

OPEN SPANNER

09813-00039

Unavailable

14

MUDGUARD, REAR FENDER RH

63114-29F00

$36.68

15

BOLT, LOWER

09111-06081

$4.09

16

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

17

EMBLEM, REAR FENDER "400"

68171-29F00-GY8

Unavailable

18

EMBLEM SUZUKI (YELLOW BLACK) | MODEL K4 This part replaces 68721-13A00-GY8.

68721-13A01-GY8

$12.73
