2004 Suzuki DR-Z400 Rear Caliper Diagram

← All diagrams

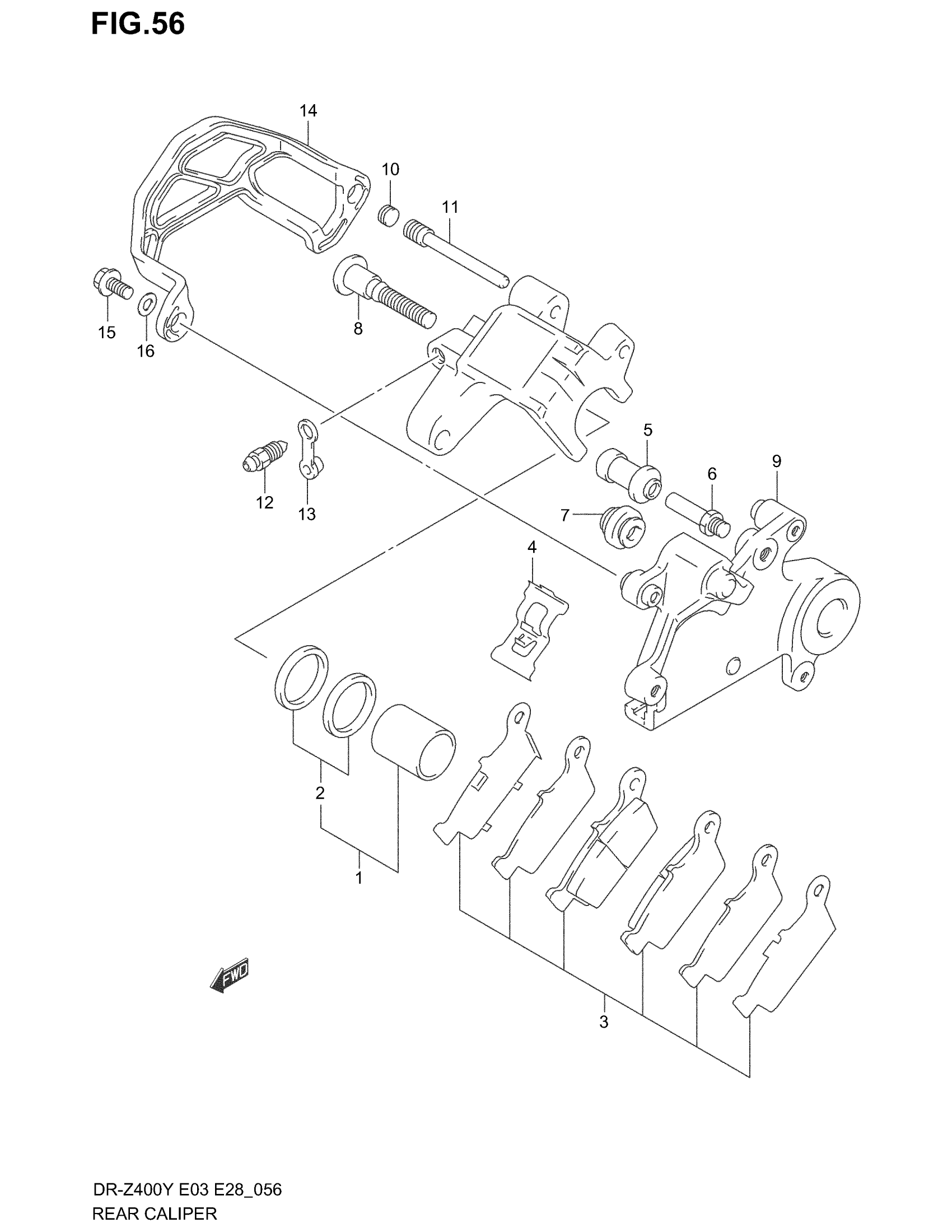

Find the part on the Rear Caliper diagram for your 2004 Suzuki DR-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki DR-Z400 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | !69100-44E10-999 W/69100-36840; Includes Item(s) 1 - 13 This part replaces 69100-36E21.

69100-44E10-999

1
Out of stock

1

PISTON SET

69100-43810

1
Out of stock

2

SEAL SET, PISTON

69100-36810

1
Out of stock

3

PAD / RETAINER SET

69100-36840

1

$66.10

In stock

4

SPRING

59315-36E00

1
Out of stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-27C30

1
Out of stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-36E00

1
Out of stock

9

BRACKET

69351-36E00

1
Out of stock

10

PLUG

59146-21E10

1
Out of stock

11

.PIN HANGER

69345-43D00

1
Out of stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

1

$21.64

In stock

15

2

$1.31

In stock

16

.WASHER This part replaces 08322-01063.

08322-0106B

2
Out of stock
