2004 Suzuki DR-Z400 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2004 Suzuki DR-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

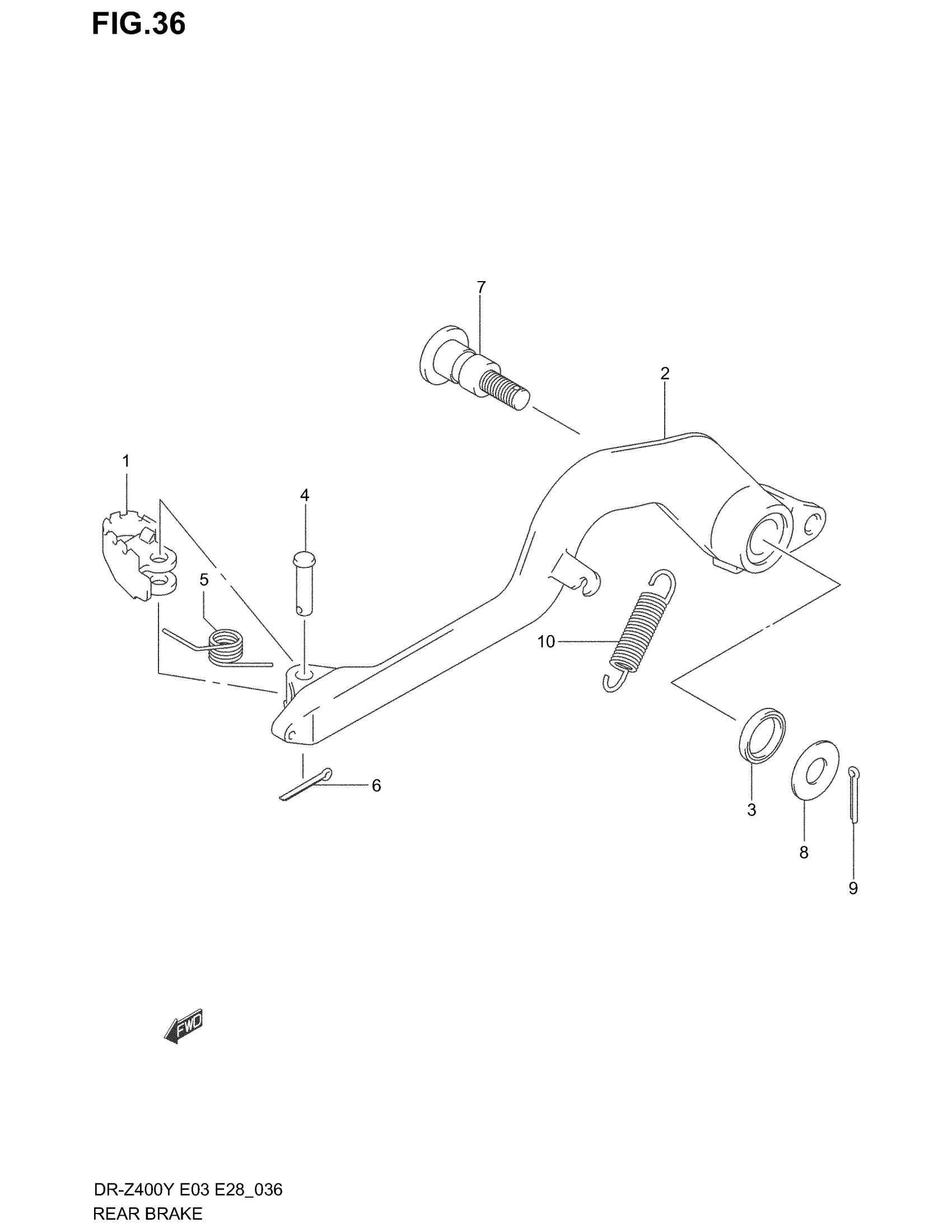

2004 Suzuki DR-Z400 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-43D00

1
Out of stock

2

ARM, BRAKE PEDAL | Includes Item(s) 3

43120-29F00

1
Out of stock

3

OIL SEAL

09284-15006

2
Out of stock

4

PIN

09200-06062

1
Out of stock

5

SPRING

09444-11006

1
Out of stock

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

7

SHAFT, BRAKE PEDAL

43142-27C00

1
Out of stock

8

WASHER

08211-10261

1
Out of stock

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

10

SPRING, PEDAL RETURN

09443-11033

1
Out of stock
