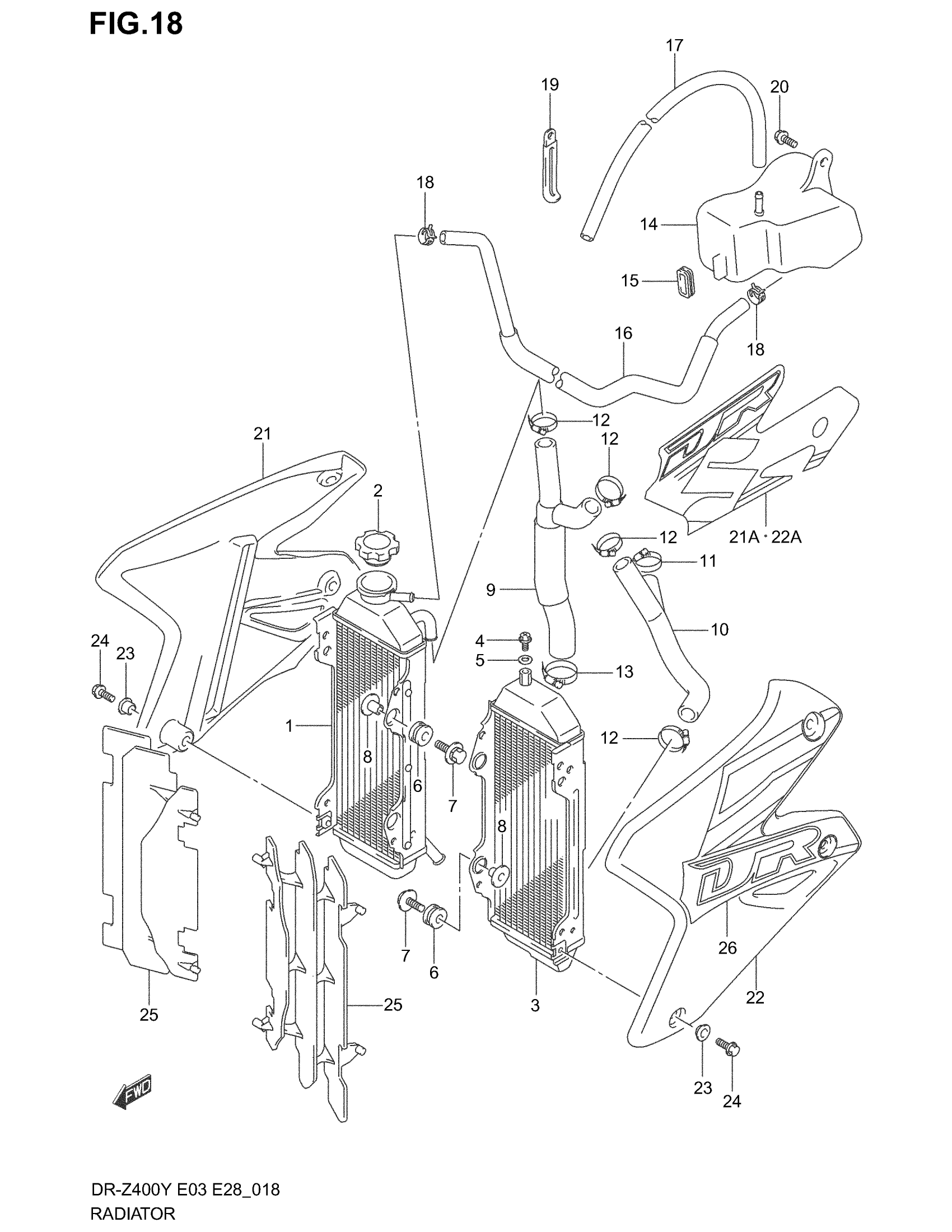

Suzuki DR-Z400 (2004) RADIATOR (MODEL Y/K1) Diagram

#

Description
Price

1

RADIATOR, RH

17710-29F00

Unavailable

2

CAP, RADIATOR (1.1)

17730-12C30

$51.93

3

RADIATOR, LH

17720-29F00

Unavailable

4

BOLT, AIR RELEASE

17568-50F00

$4.76

5

GASKET, AIR RELEASE

09168-06026

$3.10

6

CUSHION, SUPPORT

17787-19A00

$3.56

7

BOLT (6X25)

09116-06147

$3.20

8

SPACER

09180-06243

$5.46

9

HOSE, INLET

17851-29F00

Unavailable

10

HOSE, OUTLET

17852-29F00

Unavailable

11

CLAMP

09402-28511

$6.88

12

CLAMP

09402-22511

$7.05

13

CLAMP

09402-32511

$10.86

14

TANK, RESERVOIR | MODEL Y This part replaces 17911-29F10.

17911-29F11

$49.89

14

TANK, RESERVOIR | MODEL K1

17911-29F11

$49.89

15

CUSHION, RESERVOIR TANK

17913-29F00

$4.43

16

HOSE, INLET | MODEL Y This part replaces 17981-29F00.

17981-29F01

$21.03

16

HOSE, INLET | MODEL K1

17981-29F01

$21.03

17

HOSE, OVERFLOW | L:2000!650

09352-50901-00B

$26.94

18

CLIP

09401-08411

$1.78

19

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.35

19

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

21

COVER, RADIATOR RH (WHITE)

17761-29F00-30H

Unavailable

21

NO DESCRIPTION AVAILABLE | Includes Item(s) 21A This part replaces 17760-29F10-YR1.

17760-29F10-YU1

Unavailable

21A

TAPE, RADIATOR COVER RH | FOR YR1

68665-29F10-DY9

Unavailable

22

COVER, RADIATOR LH (WHITE)

17762-29F00-30H

Unavailable

22

COVER, RADIATOR LH (YELLOW) | Includes Item(s) 22A This part replaces 17770-29F10-YR1.

17770-29F40-YU1

Unavailable

22A

TAPE, RADIATOR COVER LH | FOR YR1

68675-29F10-DY9

Unavailable

23

WASHER, RADIATOR COVER

09169-06060

$2.08

24

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

25

LOUVER, RADIATOR

17831-37E11

$19.07

26

TAPE, RADIATOR COVER RH | FOR 30H

68665-29F30-YK6

Unavailable

26

TAPE, RADIATOR COVER LH | FOR 30H

68675-29F30-YK6

Unavailable
