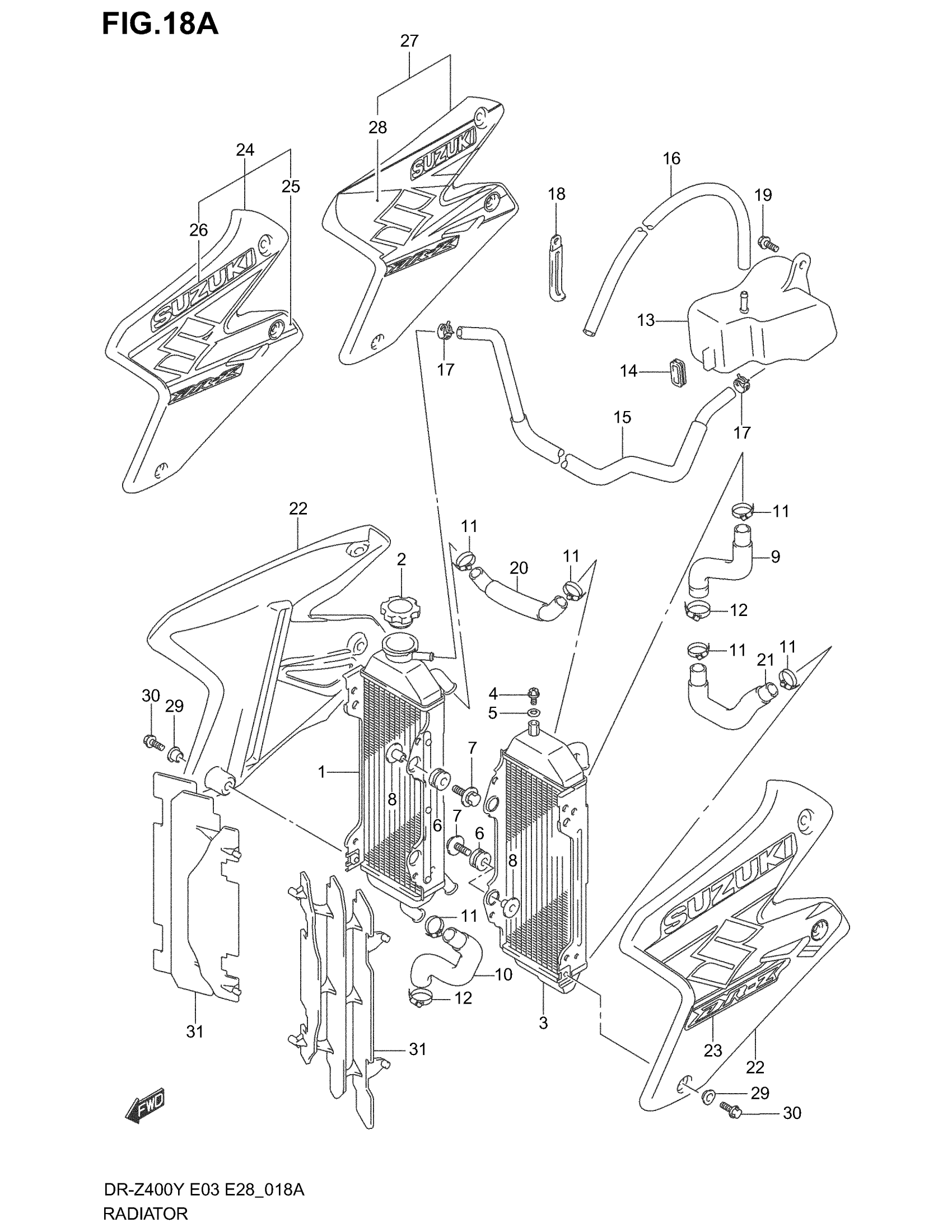

Suzuki DR-Z400 (2004) RADIATOR (MODEL K2/K3/K4) Diagram

#

Description
Price

1

RADIATOR, RH

17710-29F20

Unavailable

2

CAP, RADIATOR (1.1)

17730-12C30

$51.93

3

RADIATOR, LH

17720-29F20

Unavailable

4

BOLT, AIR RELEASE

17568-50F00

$4.76

5

GASKET, AIR RELEASE

09168-06026

$3.10

6

CUSHION, SUPPORT

17787-19A00

$3.56

7

BOLT (6X25)

09116-06147

$3.20

8

SPACER

09180-06243

$5.46

9

HOSE,RADIATOR INLET | MODEL K2 This part replaces 17851-29F20.

17851-29F21

$33.25

9

HOSE,RADIATOR INLET | MODEL K3/K4

17851-29F21

$33.25

10

HOSE, OUTLET

17852-29F20

$34.28

11

CLAMP

09402-28511

$6.88

12

CLAMP

09402-32511

$10.86

13

TANK, RESERVOIR

17911-29F11

$49.89

14

CUSHION, RESERVOIR TANK

17913-29F00

$4.43

15

HOSE, INLET

17981-29F01

$21.03

16

HOSE, OVERFLOW | L:2000!650

09352-50901-00B

$26.94

17

CLIP

09401-08411

$1.78

18

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.35

18

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

19

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

20

HOSE, JOINT UPPER

17853-29F10

$26.68

21

HOSE, JOINT LOWER

17854-29F20

$26.48

22

COVER, RADIATOR, RH (YELLOW) | MODEL K2

17760-29F40-YU1

Unavailable

22

COVER, RADIATOR, LH (YELLOW) | MODEL K2; Includes Item(s) 23 - 23

17770-29F40-YU1

Unavailable

23

TAPE, RADIATOR COVER, RH | MODEL K2

68660-29F00-GY7

Unavailable

23

TAPE, RADIATOR COVER, LH | MODEL K2

68670-29F00-GY7

Unavailable

24

COVER, RADIATOR, RH (YELLOW) | MODEL K3

17760-29F50-YU1

Unavailable

24

COVER, RADIATOR, LH (YELLOW) | MODEL K3; Includes Item(s) 25 - 26

17770-29F50-YU1

Unavailable

25

TAPE, RADIATOR COVER, RH | MODEL K3

68665-29F50-KH2

Unavailable

25

TAPE, RADIATOR COVER, LH | MODEL K3

68675-29F50-KH2

Unavailable

26

EMBLEM,SUZUKI | MODEL K3 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$20.20

27

COVER, RADIATOR, RH (YELLOW) | MODEL K4

17760-29F60-YU1

Unavailable

27

COVER, RADIATOR, LH (YELLOW) | MODEL K4; Includes Item(s) 28 - 28

17770-29F60-YU1

Unavailable

28

TAPE, RADIATOR COVER, RH | MODEL K4

68665-29F60-NV1

$167.75

28

TAPE, RADIATOR COVER, LH | MODEL K4

68675-29F60-NV1

Unavailable

29

WASHER, RADIATOR COVER

09169-06060

$2.08

30

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

31

LOUVER, RADIATOR

17831-37E11

$19.07
