2004 Suzuki DR-Z400 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2004 Suzuki DR-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

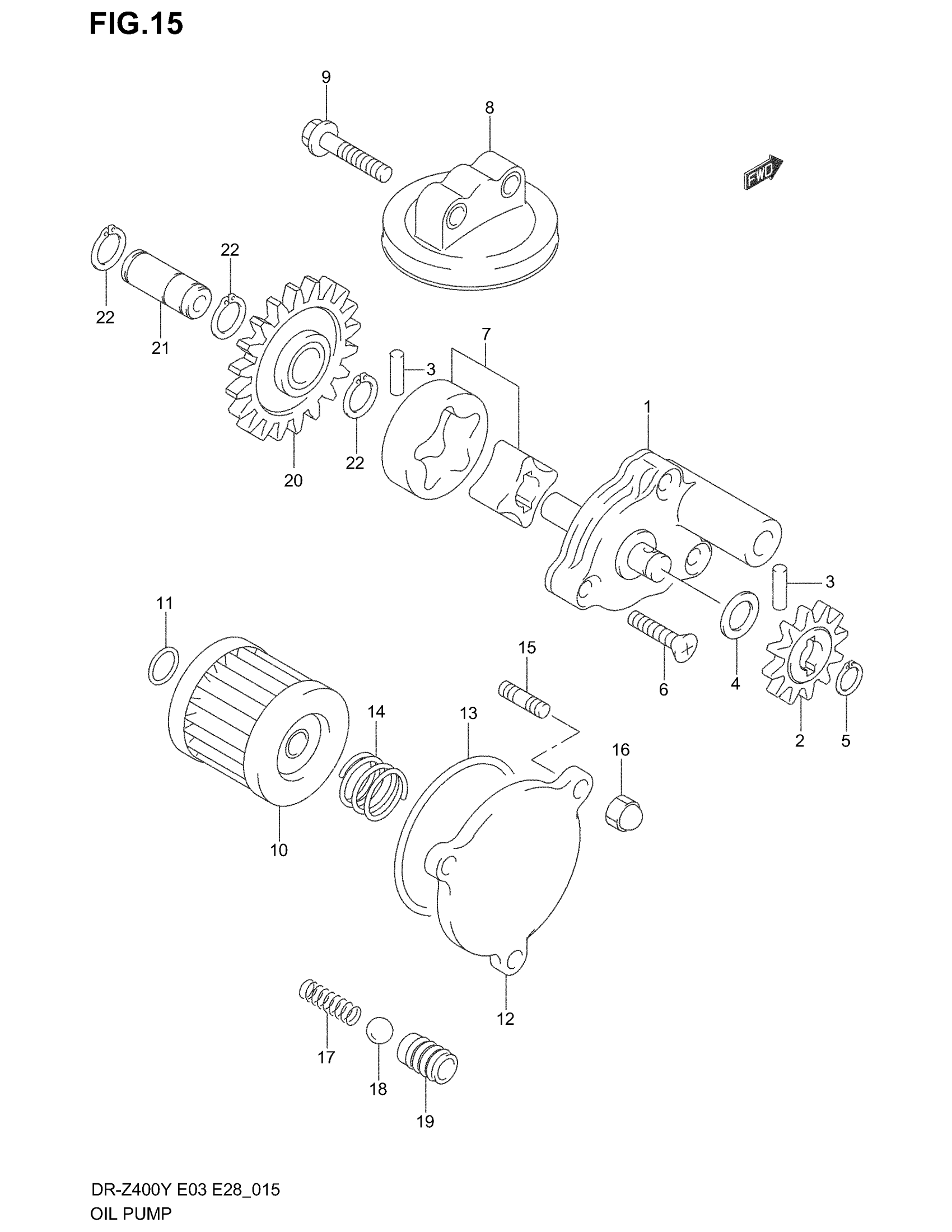

2004 Suzuki DR-Z400 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENGINE OIL NO.1

16400-29F00

1
Out of stock

2

GEAR, DRIVEN | MODEL Y/K1 This part replaces 16331-29F00.

16331-29F01

1
Out of stock

2

GEAR, DRIVEN | MODEL K2/K3/K4

16331-29F01

1
Out of stock

3

PIN

09261-04009

2
Out of stock

4

WASHER

09181-10158

1
Out of stock

5

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

6

SCREW This part replaces 02122-06253.

02122-0625A

3
Out of stock

7

ROTOR SET, OIL PUMP NO.2

16410-29F00

1
Out of stock

8

STRAINER, OIL PUMP NO.2 This part replaces 16520-29F00.

16520-29F01

1
Out of stock

9

BOLT This part replaces 01550-06253.

01550-0625A

2
Out of stock

10

FILTER, ENGINE OIL

16510-29F00

1
Out of stock

11

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

12

CAP, OIL FILTER | MODEL Y/K1

16512-29F00

1
Out of stock

12

CAP, OIL FILTER | MODEL K2/K3/K4

16512-47E00

1
Out of stock

13

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

14

SPRING

09440-18002

1
Out of stock

15

STUD BOLT

09108-06123

3
Out of stock

16

3

$1.97

In stock

17

SPRING

09440-07073

1
Out of stock

18

BALL

06111-12004

1
Out of stock

19

SEAT, OIL CHECK VALVE

16442-29F00

1
Out of stock

20

GEAR, OIL PUMP IDLE

16321-29F00

1
Out of stock

21

SHAFT

16322-29F00

1
Out of stock

22

CIRCLIP This part replaces 08331-31126.

08331-3112A

2
Out of stock
