2004 Suzuki DR-Z400 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2004 Suzuki DR-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

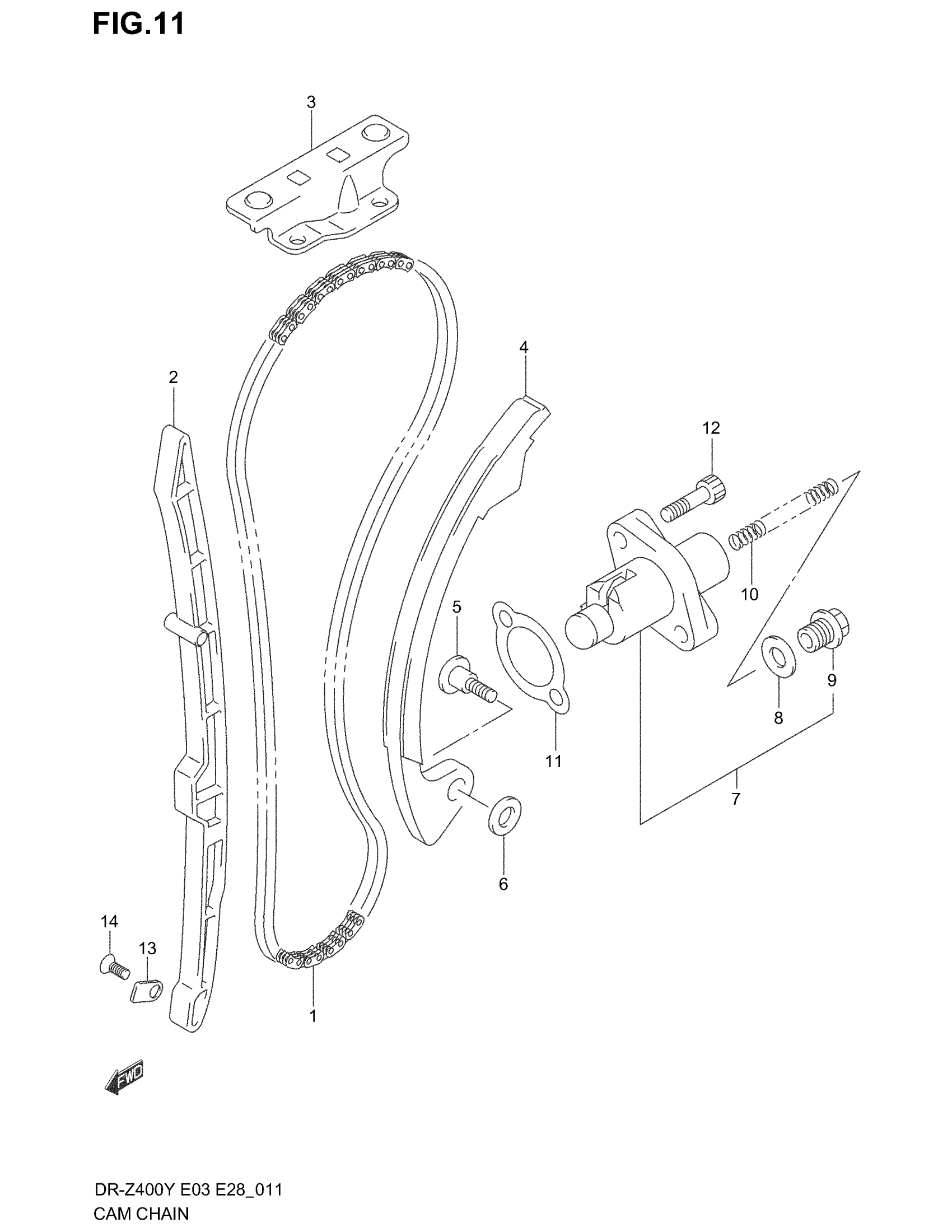

2004 Suzuki DR-Z400 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAMSHAFT DRIVE This part replaces 12760-29F00.

12760-29F01

1
Out of stock

2

GUIDE, CAM CHAIN NO.1

12771-29F00

1
Out of stock

3

GUIDE, CAM CHAIN NO.2

12782-29F00

1
Out of stock

4

TENSIONER, AND ADJUSTER SET | MODEL Y/K1/K2 ?12811-29F00

12830-29810

1
Out of stock

4

TENSIONER CAM CHAIN | MODEL K3/K4 This part replaces 12811-29F10.

12811-29F11

1
Out of stock

5

BOLT,CAM CHAIN TENSIONER

12812-35C00

1
Out of stock

6

WASHER

08211-06181

1
Out of stock

7

ADJUSTER ASSY, TENSIONER | MODEL Y/K1/K2

12830-29F01

1
Out of stock

7

ADJUSTER ASSY, TENSIONER | MODEL K3/K4; Includes Item(s) 8 - 10

12830-29F10

1
Out of stock

8

GASKET | MODEL Y/K1/K2

12837-33E00

1
Out of stock

8

GASKET | MODEL K3/K4

12837-24F10

1
Out of stock

9

PLUG | MODEL Y/K1/K2

12834-33E00

1
Out of stock

9

PLUG | MODEL K3/K4

12833-05A00

1
Out of stock

10

SPRING | MODEL K3/K4

12831-39F00

1
Out of stock

11

.GASKET,TENSIONER ADJUSTER

12837-24A10

1
Out of stock

12

BOLT This part replaces 07130-06253.

07130-0625B

2
Out of stock

13

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

1
Out of stock

14

SCREW

09126-06011

1
Out of stock
