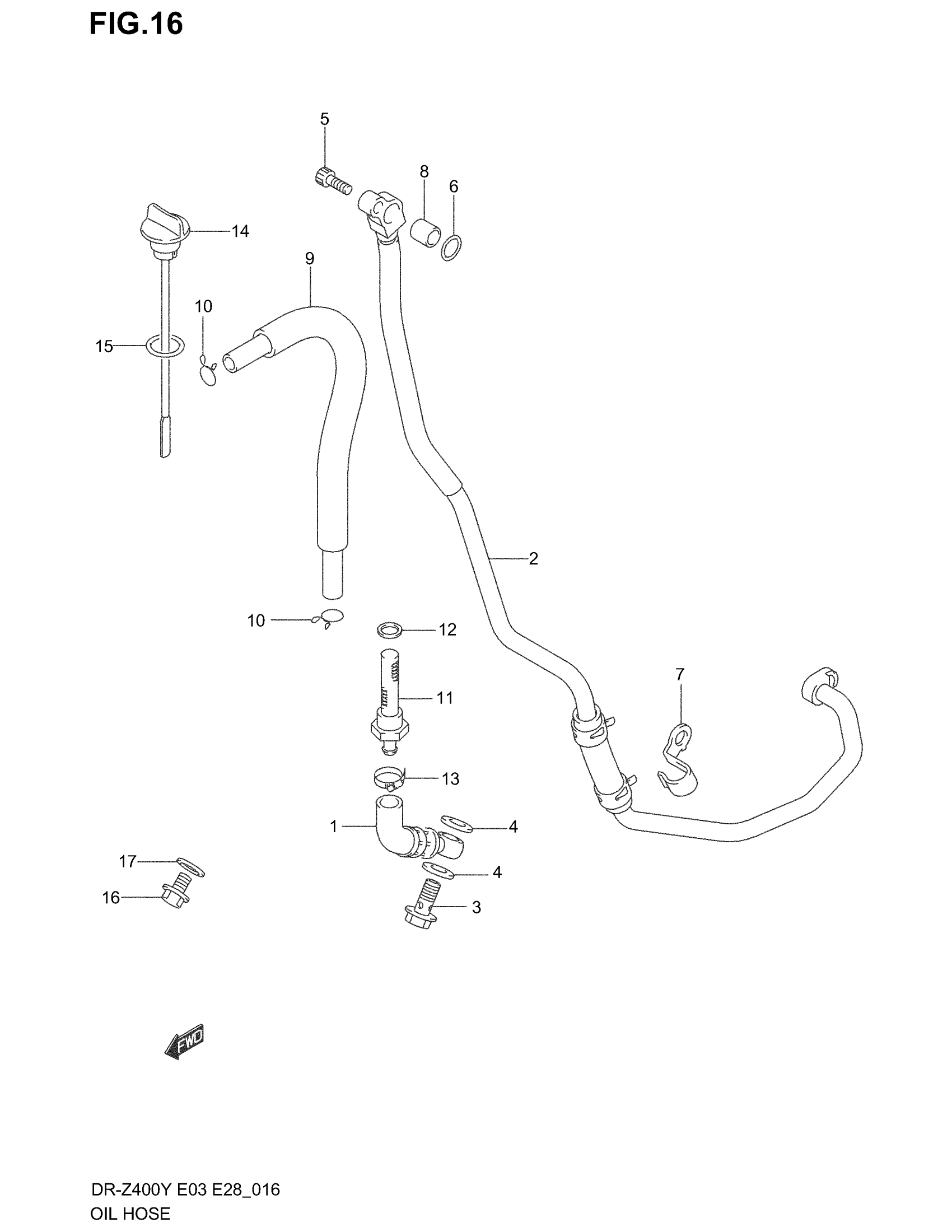

Suzuki DR-Z400 (2004) OIL HOSE Diagram

#

Description
Price

1

HOSE, OIL TANK RH | MODEL Y/K1/K2/K3 This part replaces 16460-29F00.

16460-29F10

$74.28

1

HOSE, OIL TANK RH | MODEL K4

16460-29F10

$74.28

2

HOSE, OIL TANK LH

16470-29F00

Unavailable

3

BOLT, UNION (14X27)

09360-14012

$10.86

4

.GASKET (14X20X1.5)

09168-14015

$2.03

5

BOLT, FRONT | MODEL Y/K1 This part replaces 07120-06203.

07120-0620B

$3.04

5

BOLT, EXHAUST COVER | MODEL K2/K3/K4 This part replaces 07120-06163.

07120-0616B

$2.45

5

BOLT, FRONT | MODEL K2/K3/K4 This part replaces 07120-06203.

07120-0620B

$3.04

6

O RING (D:2.4,ID:11)

09280-11005

$4.36

7

CLAMP, OIL TANK HOSE | MODEL Y/K1 This part replaces 16491-29F00.

16491-29F01

Unavailable

7

CLAMP, OIL TANK HOSE | MODEL K2/K3/K4

16491-29F01

Unavailable

8

PIN, OIL TANK HOSE

04211-11129

$1.76

9

HOSE, OIL OVER FLOW

16480-29F00

$23.78

10

CLIP

09401-12403

$1.96

11

STRAINER, FRAME HEAD UNDER

16550-29F00

$75.68

12

GASKET

09168-18007

$3.18

13

CLAMP

09402-22511

$7.05

14

GAUGE, OIL LEVEL | MODEL Y/K1/K2 This part replaces 16560-29F00.

16561-29F10

$10.93

14

GAUGE, OIL LEVEL | MODEL K3/K4

16561-29F10

$10.93

15

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

16

PLUG, DRAIN

09247-10008

$1.97

17

GASKET

09168-10002

$2.13
