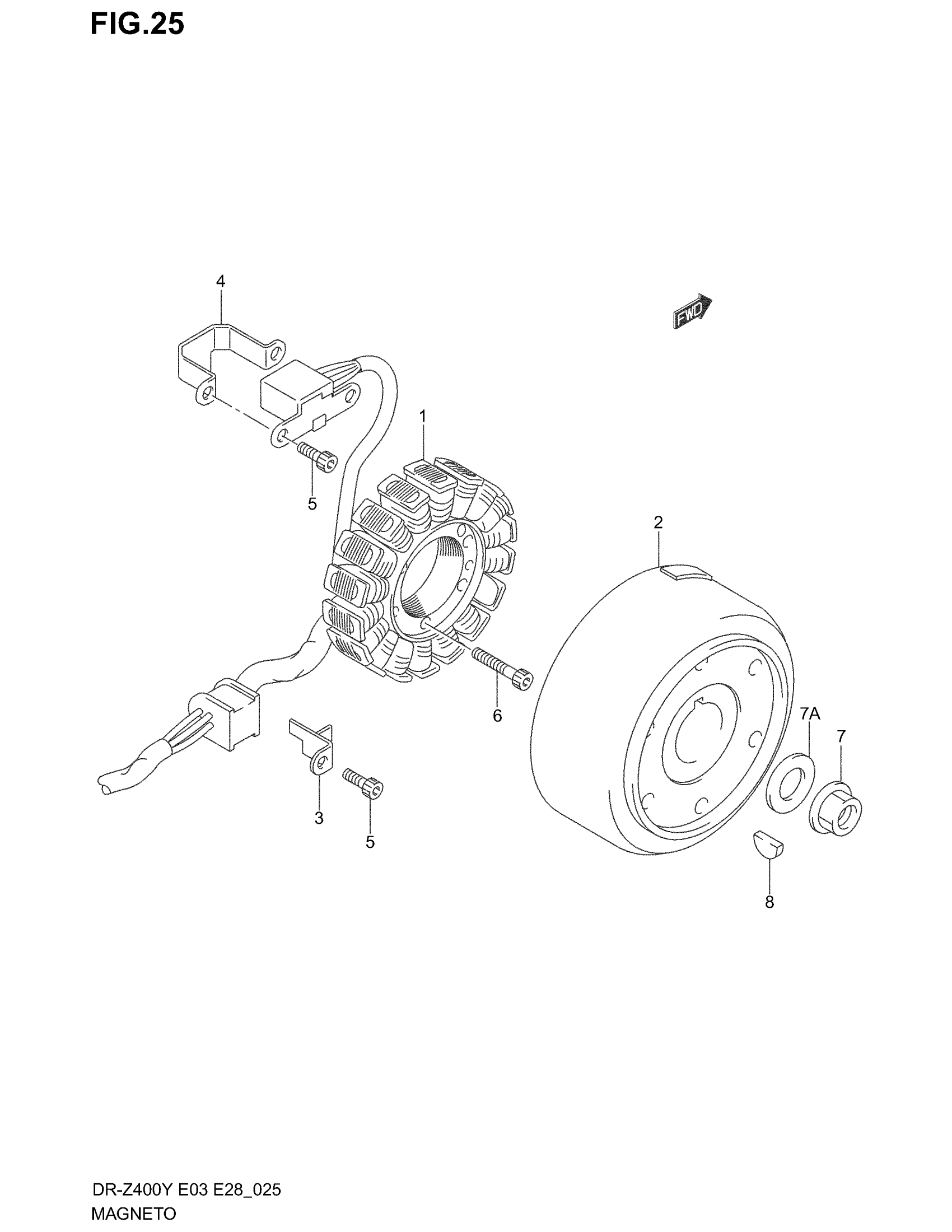

Suzuki DR-Z400 (2004) MAGNETO (DR-Z400EY/EK1/EK2/EK3/EK4) Diagram

#

Description
Price

1

STATOR ASSY

32101-29F00

$656.16

2

ROTOR ASSY

32102-29F00

$686.05

3

CLAMP, MAG LEAD,NO.1

32371-13E00

$3.35

4

CLAMP, MAG PULSER LEAD

32371-14D01

$6.15

5

BOLT This part replaces 07130-05123.

07130-0512B

$2.53

6

BOLT This part replaces 07130-05253.

07130-0525B

$2.70

7

NUT

09159-12055

$3.48

7A

WASHER (12X27X2.0)

09160-12051

$2.62

8

KEY

09420-04008

$3.08
