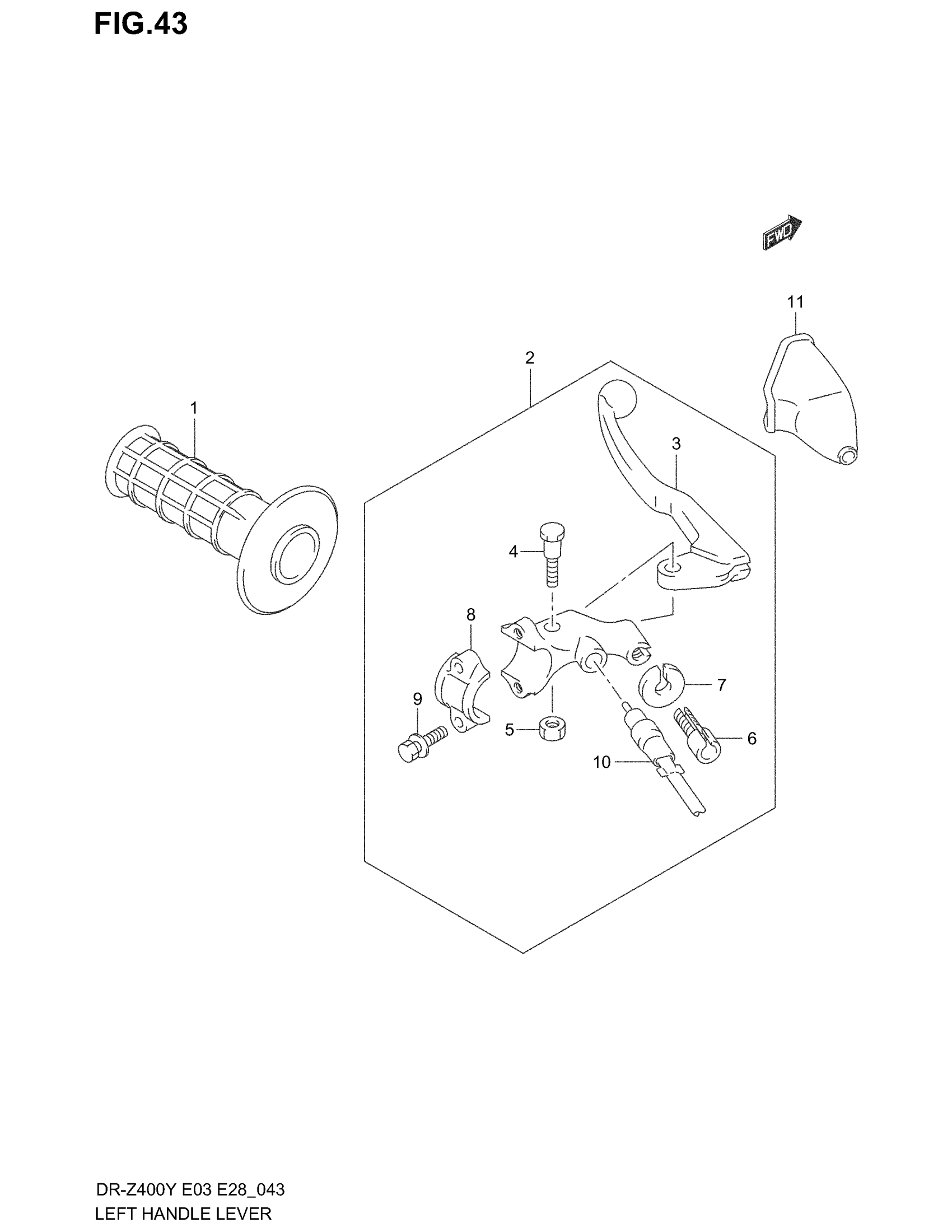

Suzuki DR-Z400 (2004) LEFT HANDLE LEVER (DR-Z400EY/EK1/EK2/EK3/EK4) Diagram

#

Description

Price

1

GRIP LH

57211-27C00

$12.28

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 10 This part replaces 57500-29F10.

57500-29F13

$50.68

3

.LEVER, CLUTCH

57621-13E00

$13.15

4

..BOLT,LEVER PIVOT

57431-21D11

$9.76

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

.ADJUSTER, WIRE This part replaces 57441-29F00.

57441-29F01

$11.32

7

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

8

BRACKET, HOLDER

57512-13E00

$25.75

9

BOLT, BRACKET

57513-13E00

$6.23

10

SWITCH ASSY, CLUTCH This part replaces 57560-13E00.

57560-13E02

$21.64

11

COVER, CLUTCH CABLE DUST This part replaces 57341-29F01.

57341-29F02

$8.52
