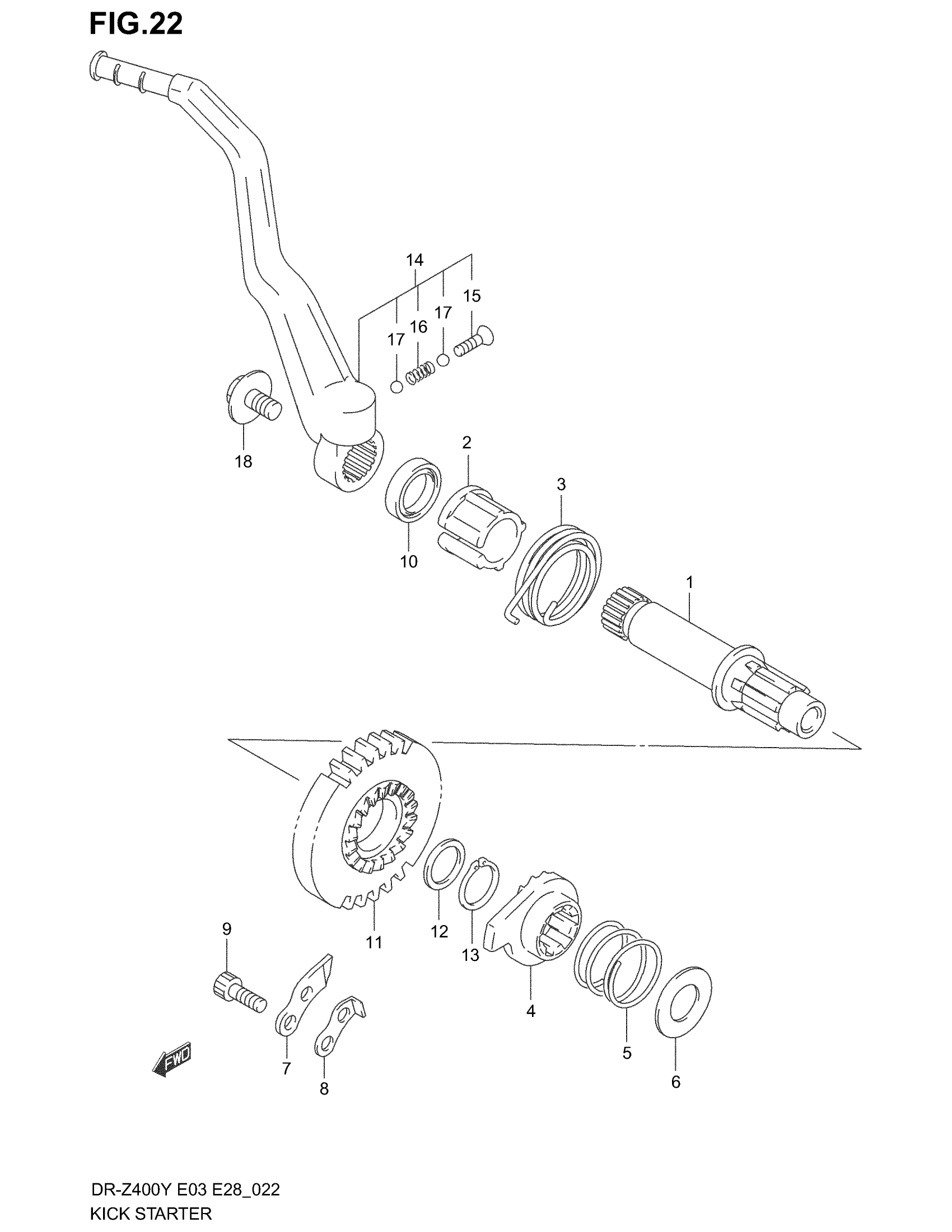

Suzuki DR-Z400 (2004) KICK STARTER (DR-Z400Y/K1/K2/K3/K4) Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-29F00

$172.32

2

GUIDE, SPRING

26221-29F00

Unavailable

3

SPRING

09448-48011

$13.63

4

STARTER, KICK

26231-14D21

$63.26

5

SPRING

09440-32002

$2.10

6

WASHER (17X32X1)

09181-17019

$4.28

7

GUIDE, KICK STARTER

26232-14500

$8.21

8

STOPPER, KICK STARTER

26233-14500

$3.73

9

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

10

OIL SEAL (20X27X6)

09283-20044

$5.51

11

GEAR, KICK DRIVE (NT:29) | MODEL Y This part replaces 26240-29F00.

26240-29F01

Unavailable

11

GEAR, KICK DRIVE (NT:29) | MODEL K1/K2/K3/K4

26240-29F01

Unavailable

12

WASHER (22X28X1.0)

09181-22139

$3.78

13

CIRCLIP

09380-22006

$2.80

14

LEVER, KICK STARTER | Includes Item(s) 15 - 17

26300-29F00

Unavailable

15

SCREW, KICK STARTER

09127-06016

$2.80

16

SPRING, KICK STARTER

09440-05031

$1.45

17

BALL

06111-07004

$1.22

18

BOLT (8X14)

09103-08360

Unavailable
