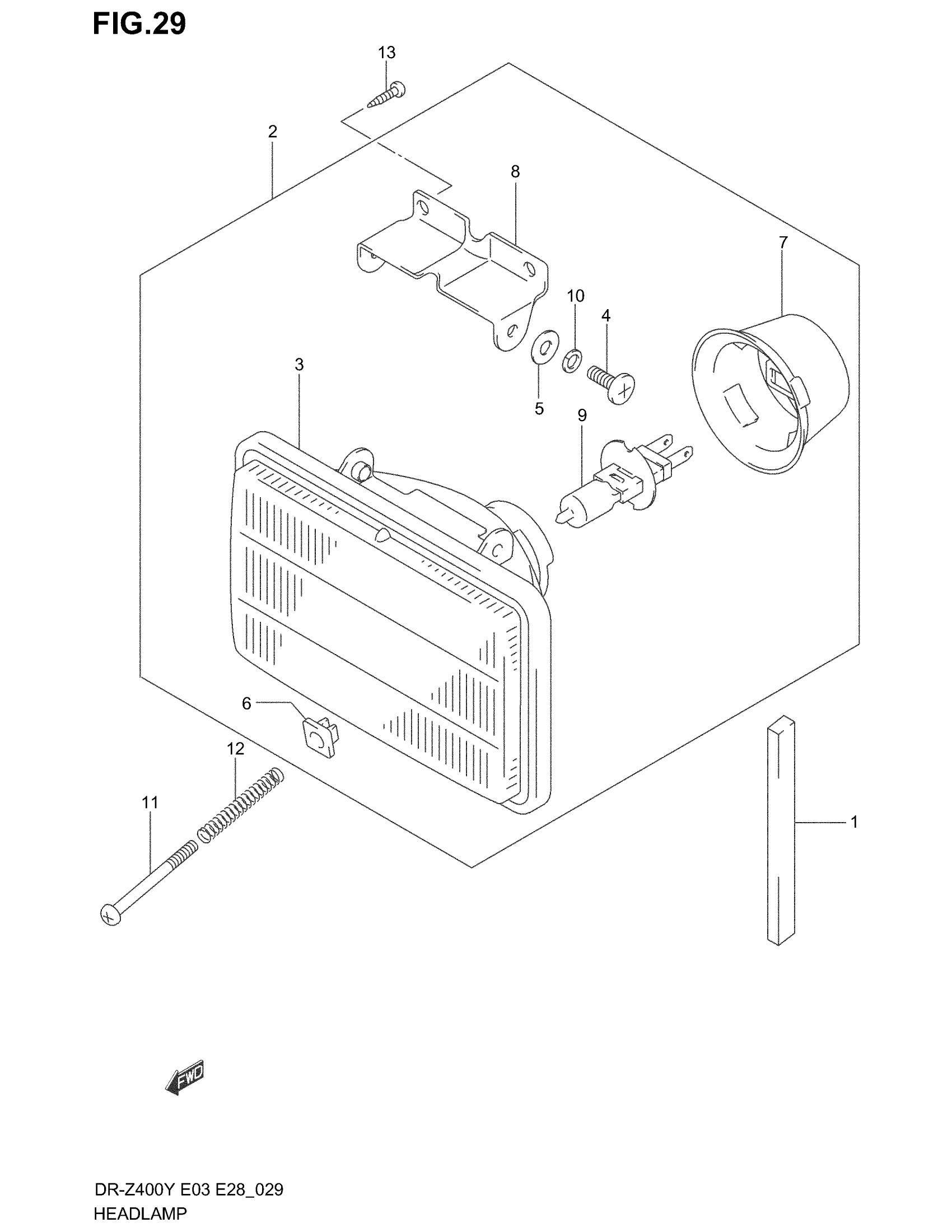

Suzuki DR-Z400 (2004) HEADLAMP (MODEL Y/K1) Diagram

CUSHION, HEADLAMP

33652-20C00

$2.99

HEADLAMP ASSY | Includes Item(s) 3 - 10

35100-05D10

Unavailable

UNIT, LAMP

35121-05D01

Unavailable

SCREW

35136-16700

$4.52

WASHER

35138-05D00

Unavailable

.NUT ADJUSTING

35135-12E20

$3.72

COVER, SOCKET

35173-05D00

Unavailable

BRACKET, LAMP

35230-05D00

$10.58

BULB (12V,55W)

09471-12160

$31.13

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.84

SCREW, HEADLAMP ADJUST | 4X45

09125-04501

$3.16

SPRING, HEADLAMP

35154-30B00

Unavailable

SCREW This part replaces 03511-04103.

03511-0410A

$1.75
