Description

Price

1

HEADLAMP ASSY | MODEL K2 This part replaces 35100-03D02.

35100-03D04

$194.00

1

HEADLAMP ASSY | MODEL K3/K4; Includes Item(s) 2 - 9 This part replaces 35100-03D03.

35100-03D04

$194.00

2

UNIT, LAMP

35121-03D02

$52.98

3

GASKET, HEADLAMP

35125-03D00

Unavailable

4

BRACKET, LAMP

35230-05D00

$10.58

5

.NUT ADJUSTING

35135-12E20

$3.72

6

SCREW

35136-16700

$4.52

7

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.84

8

CORD ASSY | MODEL K2 This part replaces 35171-03D02.

35171-03D10

$32.47

8

CORD ASSY | MODEL K3/K4 This part replaces 35171-03D03.

35171-03D10

$32.47

9

BULB (12V 35/36.5W)

09471-12105

$57.05

10

SCREW, HEADLAMP ADJUST

09125-04034

$4.25

11

SPRING, HEADLAMP ADJUST | MODEL K2

09440-07041

$2.28

11

SPRING, HEADLAMP ADJUST | MODEL K3/K4

09440-07075

$3.03

12

SCREW This part replaces 03511-04103.

03511-0410A

$1.75

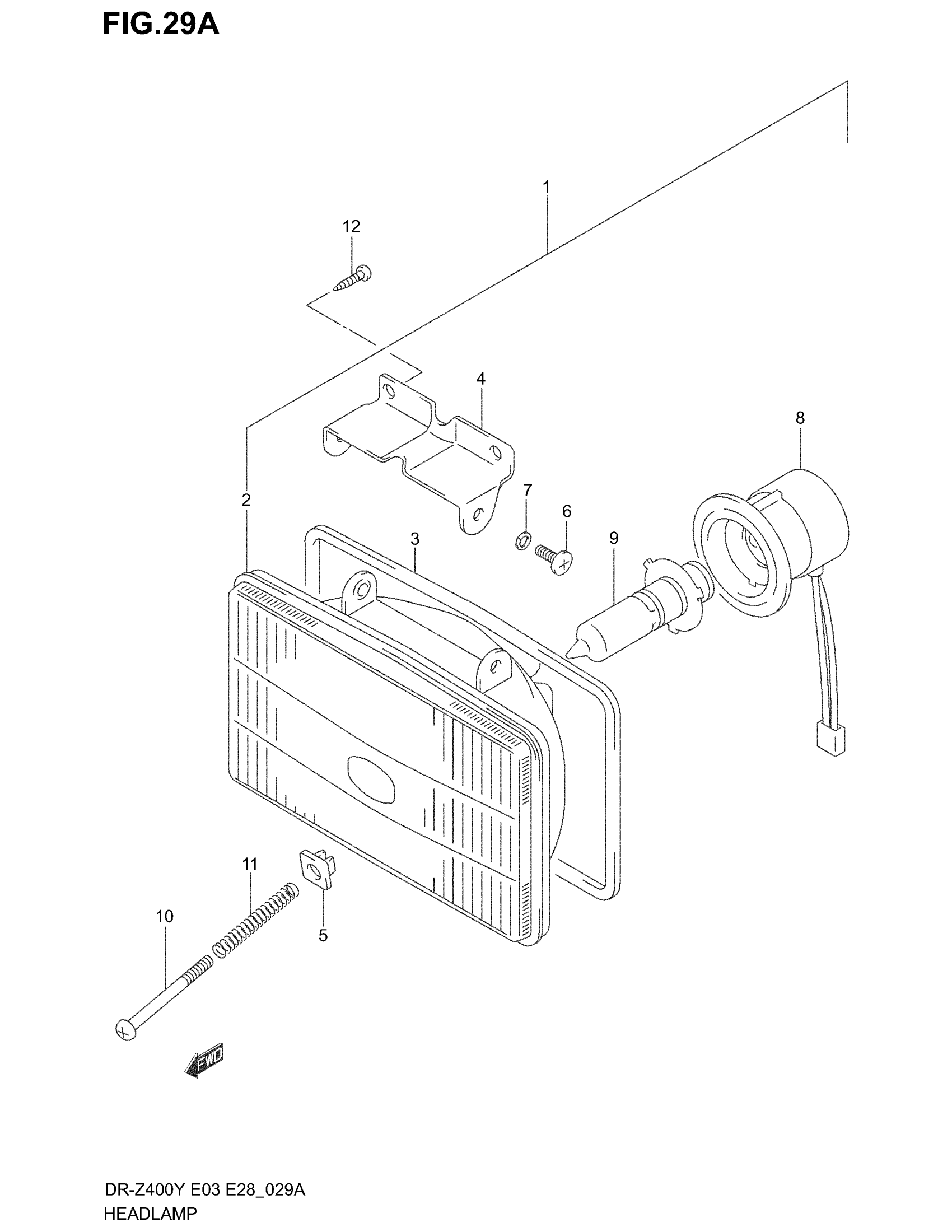

Suzuki DR-Z400 (2004) HEADLAMP (MODEL K2/K3/K4) Diagram
