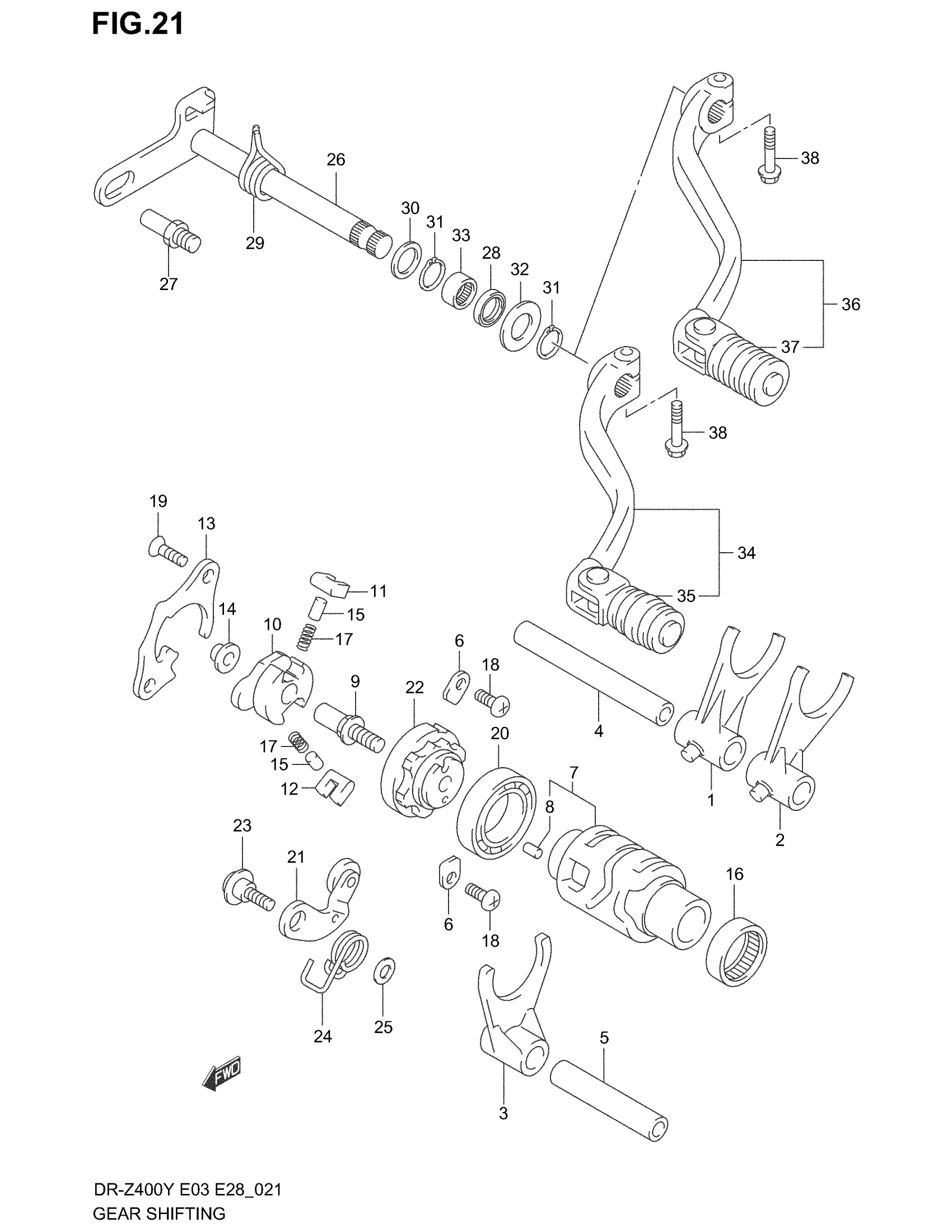

Suzuki DR-Z400 (2004) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT,NO.1

25211-28C01

$82.92

2

FORK, GEAR SHIFT,NO.2 | MODEL Y/K1

25221-37E10

$86.13

2

FORK, GEAR SHIFT,NO.2 | MODEL K2/K3/K4

25221-28C02

$87.77

3

FORK, GEAR SHIFT,NO.3

25231-28C02

$83.32

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C01.

25411-37F20

$22.22

5

SHAFT, GEAR FORK,NO.2

25421-27C01

$18.43

6

RETAINER, SHIFT CAM BRG

24741-21A00

$2.81

7

CAM, GEAR SHIFT | Includes Item(s) 8

25310-29F00

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

PIN, SHIFT

25313-27C02

$13.05

10

SHIFTER, GEAR SHIFT CAM

25322-36E00

$62.32

11

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

12

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

13

LIFTER, GEAR SHIFT PAWL

25331-37E10

$23.47

14

ROLLER, GEAR CAM SHIFTER

09180-07014

$4.11

15

PIN, SHIFT POLE (5X8)

09261-05003

$1.54

16

BEARING, SHIFT CAM, LH | 33X38X8

09263-25018

$21.39

17

SPRING, SHIFT PAWL RETURN

09440-04003

$1.54

18

SCREW, SHIFT CAM BRG | 6X12

09125-06110

$2.12

19

SCREW, SHIFT PAWL LIFTER | 6X12

09126-06011

$2.03

20

BEARING

08113-69050

$35.66

21

STOPPER, SHIFT CAM

25350-29F00

$21.03

22

PLATE, SHIFT CAM STOPPER | MODEL Y/K1/K2 This part replaces 25381-36E10.

25381-36E11

$60.93

22

PLATE, SHIFT CAM STOPPER | MODEL K3/K4

25381-36E11

$60.93

23

BOLT, CAM STOPPER ARM

25357-29F00

$7.35

24

SPRING, SHIFT CAM

25355-29F00

$5.40

25

WASHER, SHIFT CAM

08211-06121

$1.54

26

SHAFT, GEAR SHIFT

25510-29F00

$86.92

27

STOPPER, GEAR SHIFT ARM

25671-38B00

$5.32

28

SEAL, SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.70

29

SPRING, SHIFT SHAFT RETURN

09444-20004

$8.13

30

WASHER, GEAR SHAFT | 14X20X1.0

09181-14139

$2.60

31

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

32

WASHER (14X29X1.5) | 14X29X1.50 This part replaces 09160-14046.

09160-14046-XC0

$4.83

33

BEARING, GEAR SHAFT (14X20X12)

09263-14027

$13.52

34

NO DESCRIPTION AVAILABLE | DR-Z400Y/K1/K2 This part replaces 25600-37E00.

25600-37E02

Unavailable

34

LEVER ASSY,GEAR | DR-Z400K3/K4; Includes Item(s) 35 This part replaces 25600-37E11.

25600-37E12

Unavailable

35

RUBBER,GEAR SHI | DR-Z400Y/K1/K2/K3/K4 This part replaces 25652-27C00.

25652-27C01

$22.85

36

LEVER ASSY, GEAR SHIFT | DR-Z400EY/EK1/EK2 This part replaces 25600-05D01.

25600-05D03

$90.19

36

LEVER ASSY, GEAR SHIFT | DR-Z400EK3/EK4; Includes Item(s) 37 This part replaces 25600-05D02.

25600-05D03

$90.19

37

.RUBBER, GEAR SHIFT PEDAL | DR-Z400EY/EK1/EK2/EK3/EK4

25652-03D00

$5.05

38

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45
