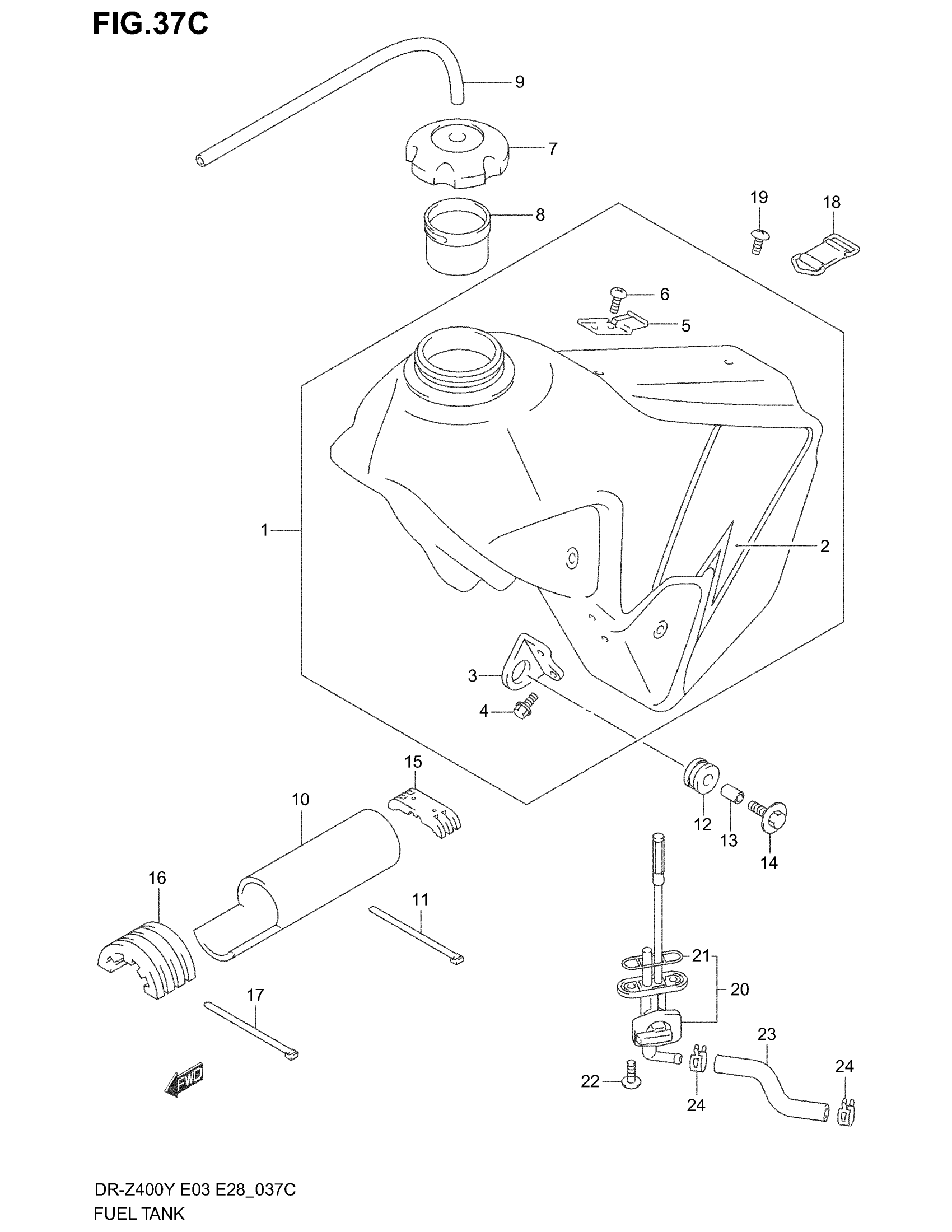

Suzuki DR-Z400 (2004) FUEL TANK (MODEL K3) Diagram

#

Description
Price

1

TANK ASSY, FUEL (YELLOW) | Includes Item(s) 2 - 6

44100-29F90-YU1

Unavailable

2

TAPE SET

68110-29F60-KH1

Unavailable

3

BRACKET, FUEL TANK FRONT

44131-27C01

$12.63

4

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

5

HOOK, SEAT FRONT

44132-44E01

$15.32

6

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

7

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

8

TUBE, FILLER INLET

44199-19A00

$6.28

9

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

10

SHIELD, FUEL TANK

44194-29F00

Unavailable

11

CLAMP

09407-30402

$4.11

12

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

13

SPACER (6.5X9X13.5)

09180-06268

$2.19

14

BOLT

09118-06112

$3.21

15

CUSHION, REAR

44542-29F00

$18.05

16

CUSHION, FUEL TANK

44541-29F00

$34.55

17

CLAMP

09407-30402

$4.11

18

BAND, FUEL TANK REAR

44560-44E00

$13.30

19

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

20

COCK ASSY, FUEL | Includes Item(s) 21

44300-29F10

$105.37

21

.GASKET JOINT This part replaces 44348-87420.

44348-87421

$5.35

22

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

23

HOSE,FUEL This part replaces 44421-29F00.

44421-29FR0

$12.60

24

CLIP

09401-11413

$2.26
