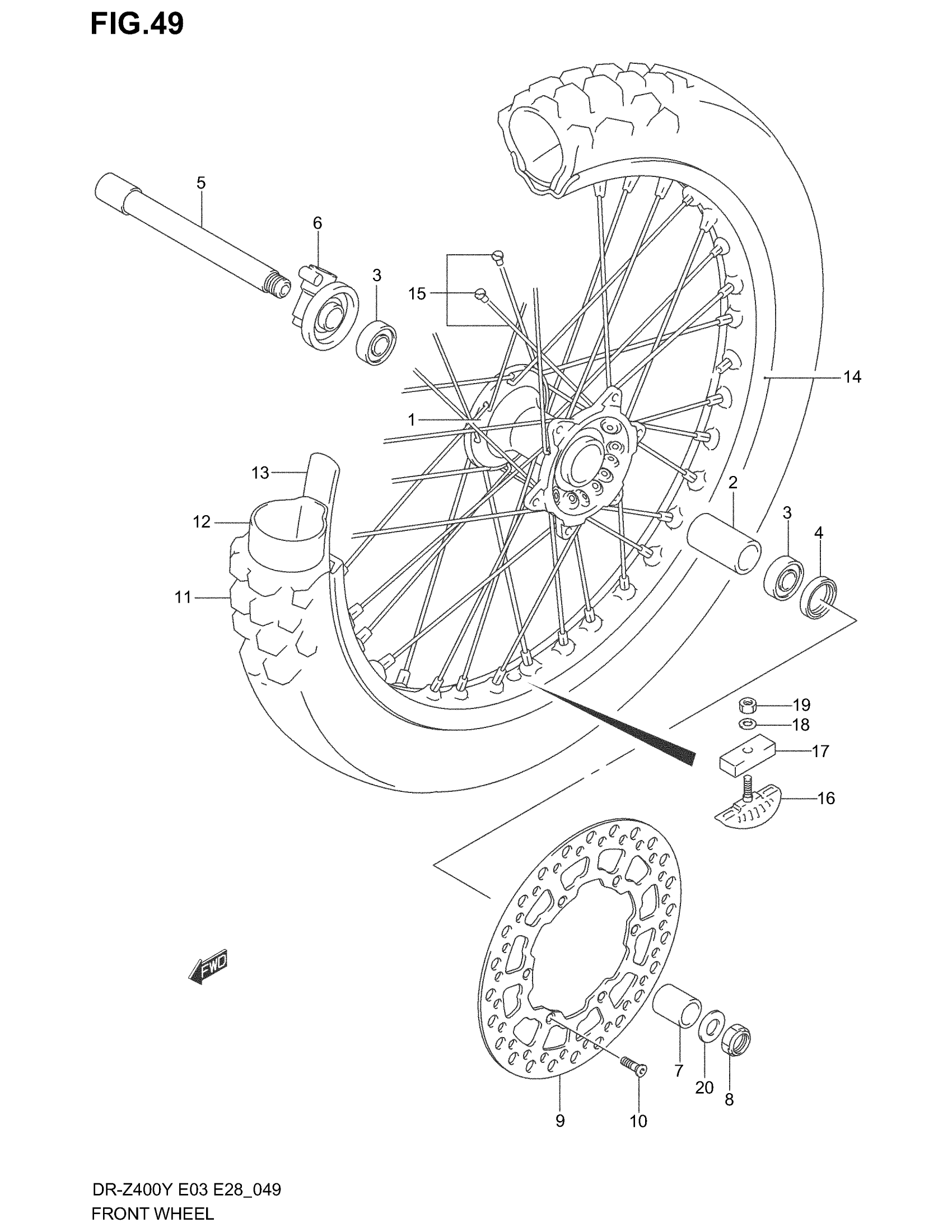

Suzuki DR-Z400 (2004) FRONT WHEEL Diagram

HUB, FRONT WHEEL

54111-29F00

Unavailable

SPACER, FRONT HUB (20.5X27.3X70)

54731-36E10

$25.75

BEARING This part replaces 08130-69047.

08130-6904B

$43.88

SEAL, LH (25X37X6)

09283-25083

$8.37

AXLE, FRONT This part replaces 54711-29F00.

54711-29F10

$104.97

BOX ASSY SPEEDOMETER GEAR This part replaces 54600-29F00.

54600-29F01

$75.97

SPACER, AXLE LH (L:31)

54751-36E10

$17.84

NUT

09159-18018

$16.98

DISC, FRONT BRAKE LH

59221-29F00

$303.63

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

$2.45

TIRE, FRONT (80/100-21 51M) (DUNLOP)

55110-29F00

Unavailable

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

$31.37

PROTECTOR, INNER TUBE

55261-44AF0

$6.88

RIM, FRONT WHEEL (1.60X21)

55311-36E00

Unavailable

SPOKE SET, FRONT WHEEL

55320-36E00

$167.93

STOPPER, BEAD

65270-14300

$52.73

CUSHION, BEAD STOPPER

65271-27C00

$7.42

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

NUT This part replaces 08310-00083.

08310-0008A

$1.84

WASHER

09160-18034

$2.97
