Description

Price

1

CYLINDER ASSY,F | Includes Item(s) 2 - 10 This part replaces 59600-36E10.

59600-36E11

$236.57

2

PISTON & CUP SE This part replaces 59600-36830.

59600-36831

$48.22

3

BOOT

59666-36E00

$8.28

4

DIAPHRAGM

59667-36E00

$11.95

5

CAP (SILVER)

59669-36E10

$19.72

6

SCREW

69689-49300

$1.91

7

HOLDER (SILVER)

59671-27C00

$17.02

8

BOLT

59675-27C00

$3.54

9

SEPARATOR

59748-36E00

$9.37

10

RING

69744-36E00

$4.02

11

UNION This part replaces 09360-10042.

09360-10062

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE COMP,FRONT This part replaces 59480-29F00.

59480-29F01

Unavailable

14

CLAMP, FR BRAKE

59243-03B01

$6.63

15

SCREW This part replaces 02142-06253.

02142-0625A

$1.49

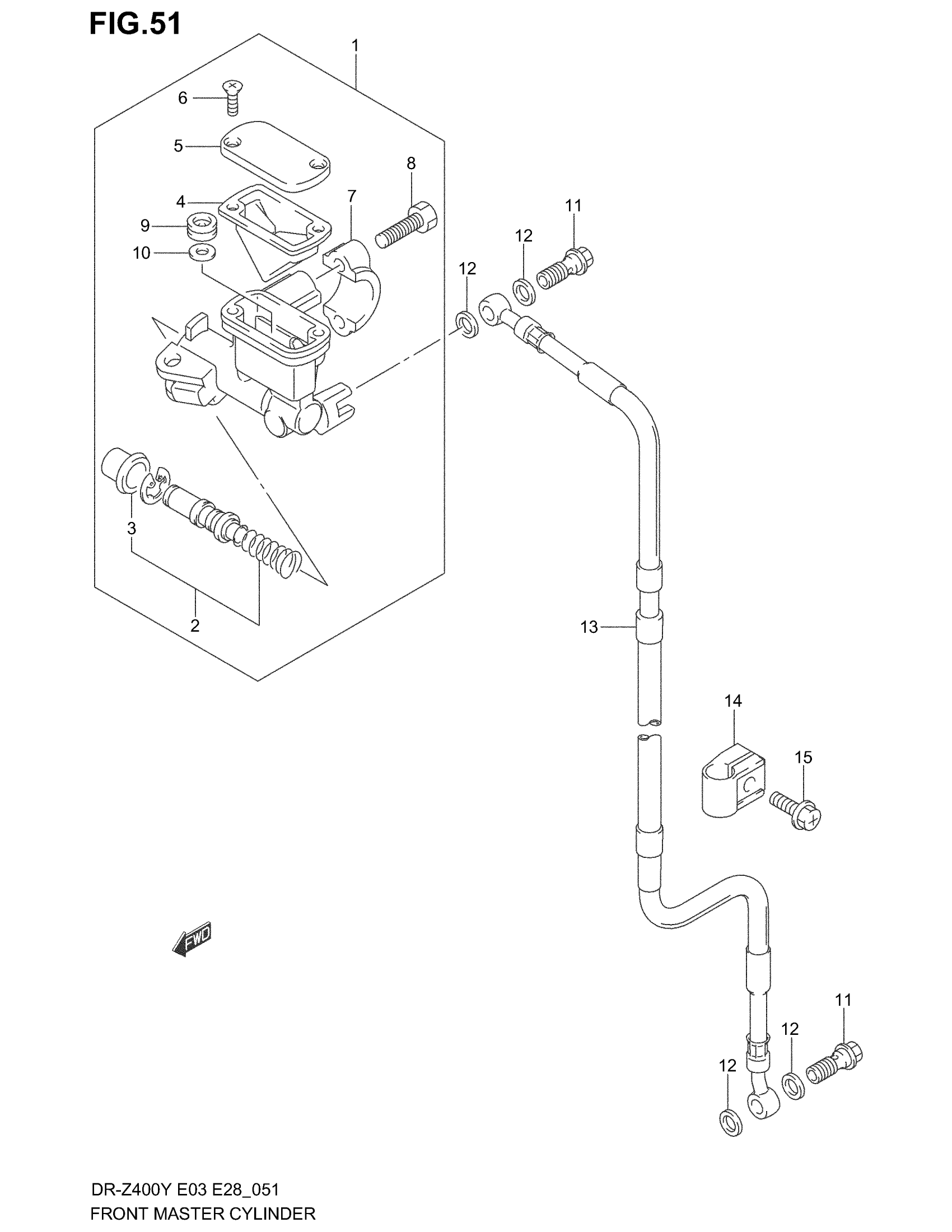

Suzuki DR-Z400 (2004) FRONT MASTER CYLINDER Diagram
