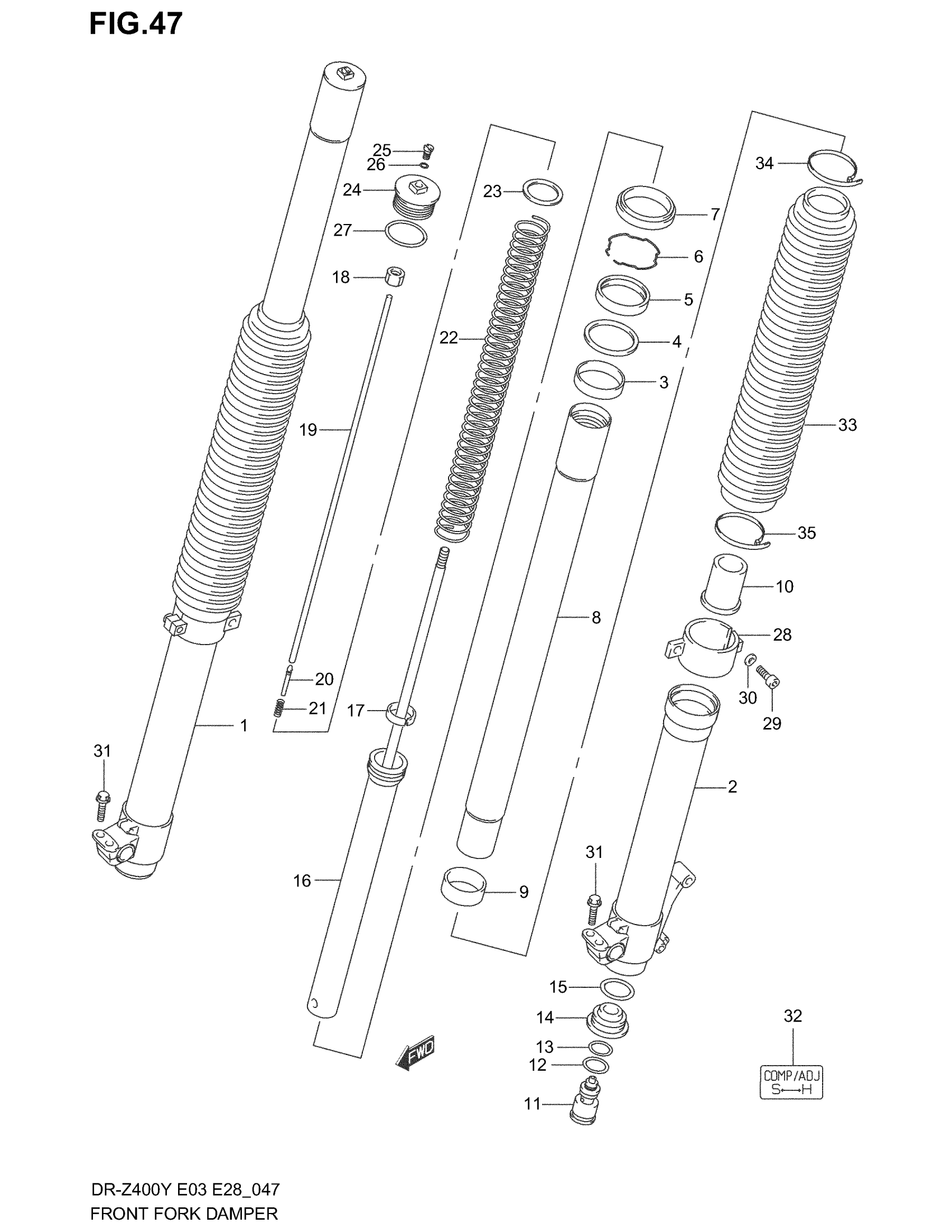

Suzuki DR-Z400 (2004) FRONT FORK DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-29F00

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 32

51104-29F00

Unavailable

1

TUBE, OUTER RH

51130-29F00

Unavailable

2

TUBE, OUTER LH

51140-29F00

Unavailable

3

BUSH, GUIDE

51167-36E80

$27.63

4

..SPACER,SEAL

51158-36E00

$9.37

5

..SEAL,OIL

51153-36E00

$37.22

6

..RING,STOPPER

51156-36E00

$8.43

7

SEAL, DUST

51173-36E00

$38.65

8

TUBE, INNER

51110-29F00

$716.64

9

BUSH, SLIDE

51121-36E40

$38.63

10

PIECE, OIL LOCK

51195-29F00

Unavailable

11

BOLT, CENTER

51170-29F00

$313.78

12

O RING

51175-29F00

$5.83

13

O RING

51174-29F00

$5.83

14

PLATE, END

51205-29F00

Unavailable

15

O RING

51117-27C40

$6.22

16

ROD, FRONT DAMPER

51190-29F00

Unavailable

17

BUSH, SLIDE

51122-29F00

$19.25

18

NUT

51827-33E00

$17.28

19

ROD, PUSH

51191-29F00

Unavailable

20

NEEDLE

51192-05D80

$21.50

21

SPRING, PUSH ROD

51193-28E00

$6.30

22

SPRING, FR (K=8.63N/0.88KG)

51171-29F00

Unavailable

22

SPRING, FR (SOFT)(4.1N/MM) | OPT

51171-29FB0

Unavailable

22

SPRING, FR (HARD)(4.5N/MM) | OPT

51171-29FA0

Unavailable

23

JOINT, SPRING

51192-36E00

Unavailable

24

BOLT, FORK

51351-29F00

$134.60

25

BOLT, PLUG

51357-28E30

$14.37

26

...O-RING

51358-28E30

$4.28

27

O RING

51117-36E00

$6.93

28

HOLDER, BOOT

51203-29F00

$48.23

29

BOLT

07130-05207

$3.03

30

WASHER

09160-05044

$2.02

31

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

32

LABEL

51149-29E40

$6.23

33

BOOT (BLACK) This part replaces 51571-29F00-019.

51571-29F01-019

$83.28

34

BAND, BOOT UPPER

51575-29F00

$21.83

35

BAND, BOOT LOWER

51576-29F00

$19.87
