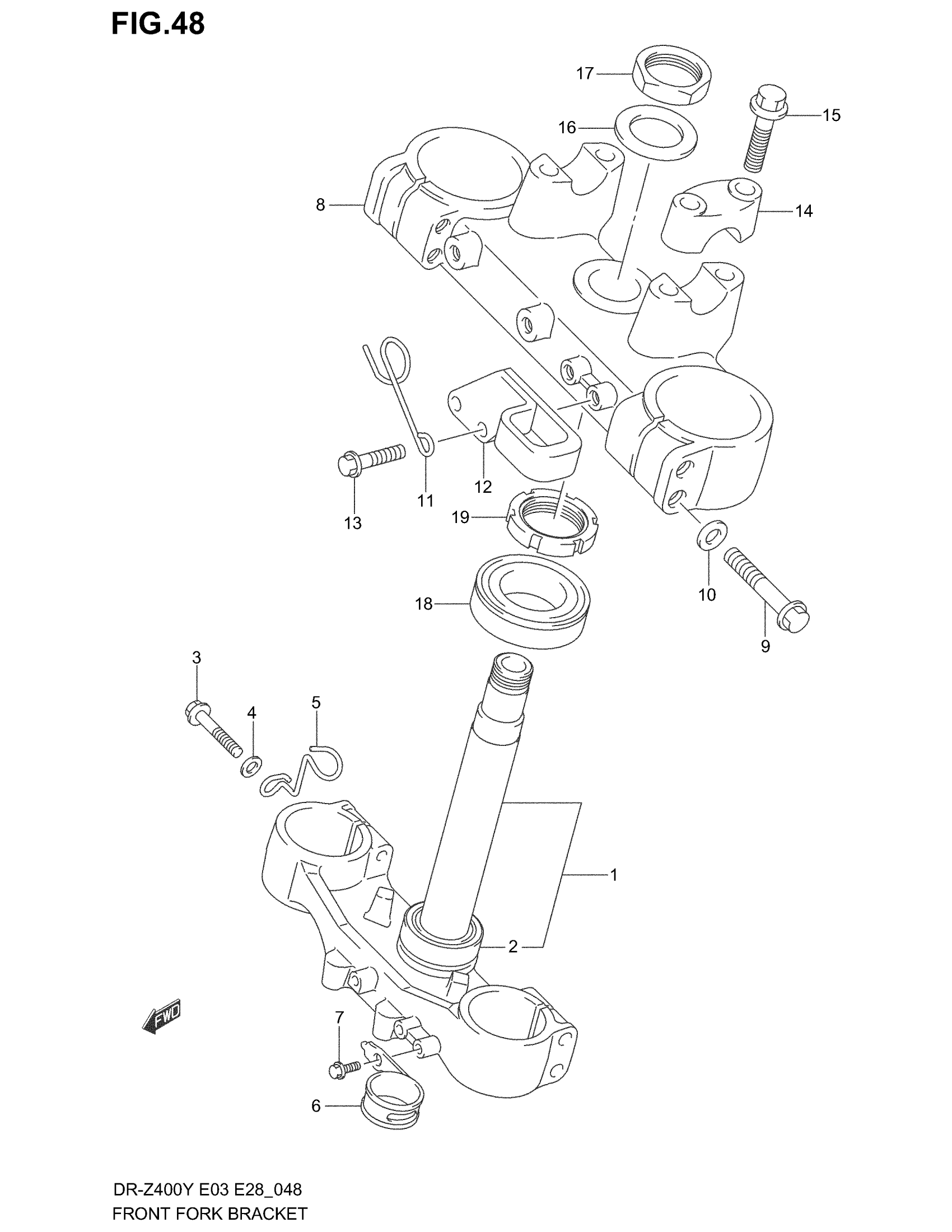

Suzuki DR-Z400 (2004) FRONT FORK BRACKET Diagram

#

Description
Price

1

BRACKET, FRONT FORK UNDER | Includes Item(s) 2

51410-29F00

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

BOLT, UNDER

51328-36E00

$7.51

4

WASHER

51316-36E00

$3.71

5

GUIDE, CABLE

34938-29E01

$11.83

6

GUIDE, HOSE

51453-29F00

$52.23

7

BOLT

58627-27C40

$3.77

8

BRACKET, FRONT FORK UPPER

51311-29F00

$389.20

9

BOLT, UPPER

51328-36E00

$7.51

10

WASHER

51316-36E00

$3.71

11

GUIDE,CLUTCH CA This part replaces 58294-27C00.

58294-27C01

$6.18

12

GUIDE, HOSE

58621-27C40

$25.70

13

BOLT

01547-06257

$2.03

14

HOLDER, HANDLE

56211-36F00

$34.15

15

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

16

WASHER,STEM HEAD

51356-29E00

$15.29

17

NUT

51353-27C40

$27.87

18

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

19

NUT STEERING

51631-28E00

$28.88
