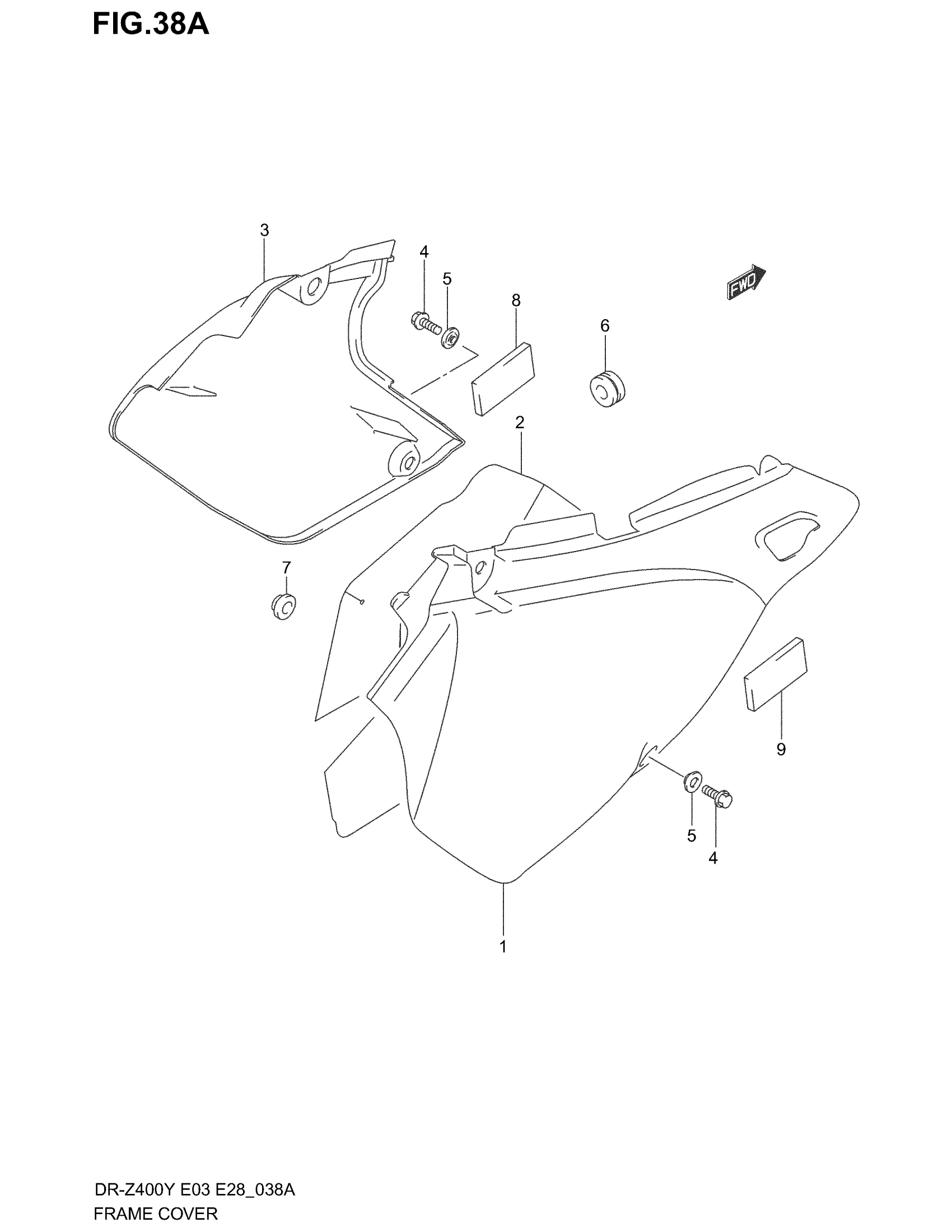

Suzuki DR-Z400 (2004) FRAME COVER (MODEL K3/K4) Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE) This part replaces 47111-29F00-30H.

47111-29FB0-30H

$104.42

2

SHIELD, FRAME COVER RH

47166-29F00

$93.58

3

COVER, FRAME LH (WHITE) | DR-Z400K3/K4

47211-29F00-30H

Unavailable

3

COVER, FRAME LH (WHITE) | DR-Z400EK3/EK4 This part replaces 47211-29F10-30H.

47211-29FA0-30H

$64.78

4

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

5

WASHER

09169-06041

$1.97

6

CUSHION, RH

09320-06504

$4.47

7

CUSHION, MUFFLER

09321-10018

$4.19

8

CUSHION, COVER FRONT LH | DR-Z400EK3/EK4

47161-29F00

$8.12

9

CUSHION, COVER FRONT RH

71762-65G10

$9.35
