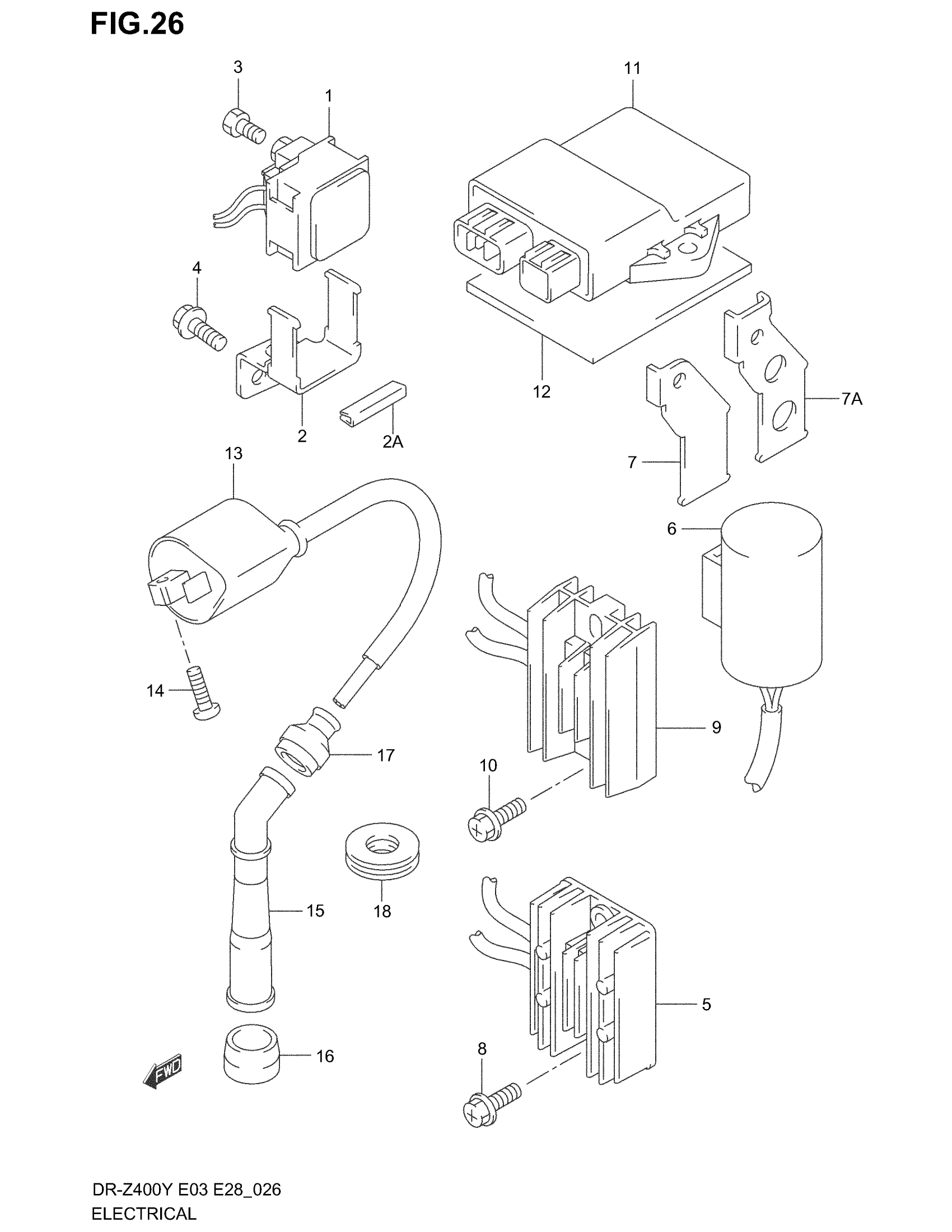

Suzuki DR-Z400 (2004) ELECTRICAL Diagram

RELAY ASSY STARTING MOTOR | DR-Z400EY/EK1/EK2/EK3 This part replaces 31800-29F00.

31800-29F01

$63.15

BRACKET, STARTING MOTOR | DR-Z4OOEY/EK1/EK2/EK3

31811-29F00

$7.12

PROTECTOR, STARTING MOTOR | DR-Z400EY/EK1/EK2/EK3

31812-29F00

$5.67

BOLT, STARTING MOTOR (6X8) | DR-Z400EY/EK1/EK2/EK3

09128-06013

$1.49

BOLT, CLAMP | DR-Z400EY/EK1/EK2/EK3 This part replaces 01550-06123.

01550-0612A

$1.97

RECTIFIER ASSY | DR-Z400Y/K1/K2/K3/K4

32800-08D00

$234.10

CONDENSER ASSY | DR-Z4OOY/K1/K2/K3/K4

33640-08D00

$195.10

BRACKET, CONDENSER | DR-Z4OOY/K1/K2

33641-44E00

Unavailable

BRACKET, CONDENSER | DR-Z400K3/K4

33641-29F00

Unavailable

SCREW, REAR SIDE BRKT | DR-Z400Y/K1/K2/K3/K4 This part replaces 02162-06123.

02162-0612A

$2.05

RECTIFIER ASSY | DR-Z400EY/EK1/EK2/EK3/EK4

32800-29F00

$267.85

BOLT | DR-Z400EY/EK1/EK2/EK3/EK4 This part replaces 02162-06203.

02162-0620C

$1.71

CDI UNIT | DR-Z400Y/K1/K2/K3/K4 E3

32900-29F00

Unavailable

CDI UNIT | DR-Z400EY/EK1/EK2/EK3/EK4 E3/E28

32900-29F10

$743.23

CDI UNIT | DR-Z400 EK4 E33

32900-29F60

Unavailable

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (50X30)

33651-37000

$4.48

COIL ASSY, IGNITION

33410-09F00

$95.54

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

CAP ASSY, SPARK PLUG

33510-48B10

$31.77

SEAL, SPARK PLUG CAP

33541-23E01

$6.34

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

COVER,SPARK PLUG CAP

33543-33E01

$4.54
