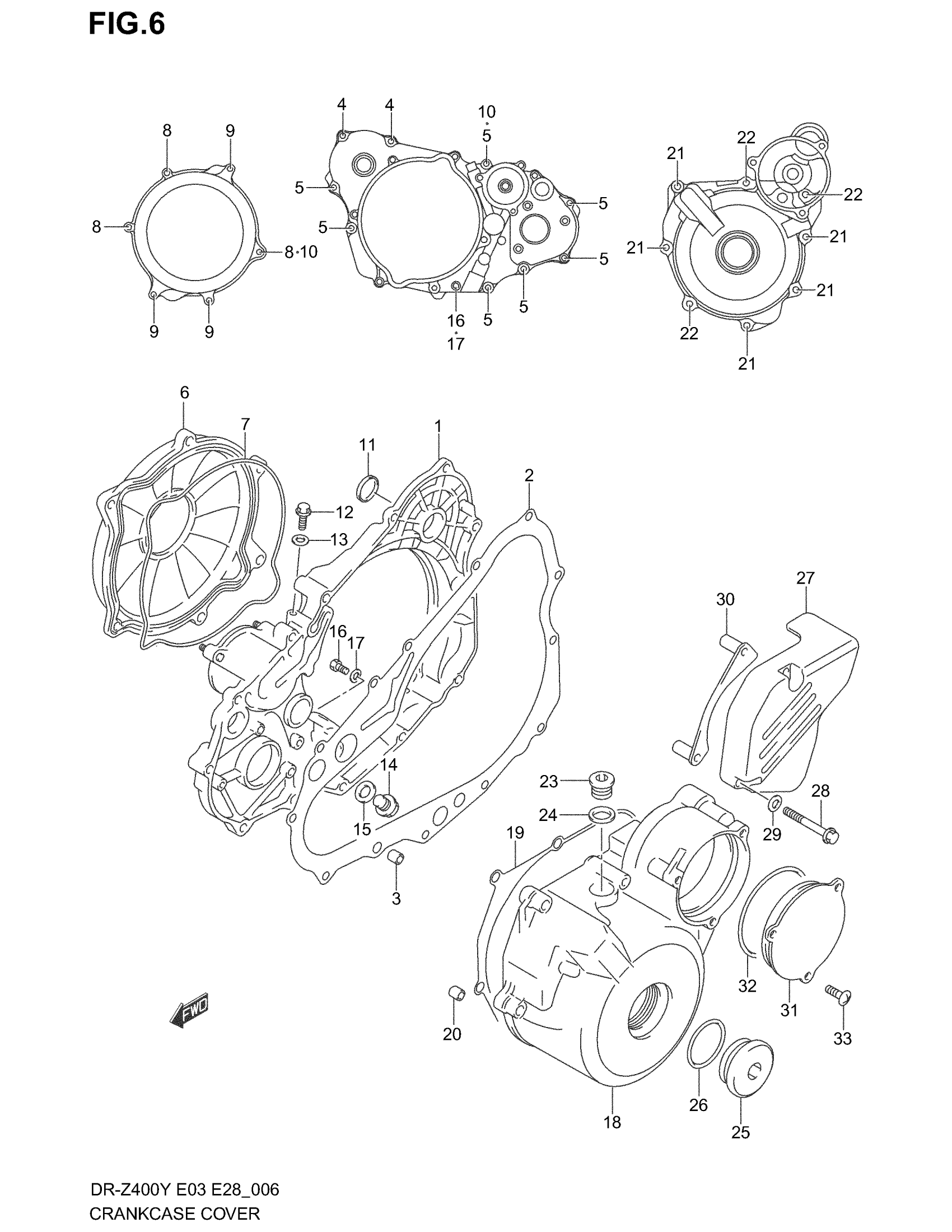

Suzuki DR-Z400 (2004) CRANKCASE COVER (DR-Z400EY/EK1/EK2/EK3/EK4) Diagram

#

Description
Price

1

COVER, CLUTCH INNER | MODEL Y/K1

11341-29F00

Unavailable

1

COVER, CLUTCH INNER | MODEL K2/K3/K4

11341-29F50

$257.28

2

GASKET, CLUTCH COVER

11482-29F00

$17.66

3

PIN

04211-09149

$1.65

4

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

COVER, CLUTCH OUTER | MODEL Y/K1

11371-29F00

Unavailable

6

COVER, CLUTCH OUTER | MODEL K2/K3/K4

11371-29F50

$156.49

7

O RING, CLUTCH OUTER COVER

11484-29F00

$22.56

8

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

9

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

10

GASKET

09168-06023

$2.35

11

PLUG, CLUTCH COVER KICK

11342-15D00

$10.07

12

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

13

GASKET

09168-06023

$2.35

14

PLUG, OIL GALLERY (12X10)

09247-12006

$2.82

15

GASKET (12.1X16.2X1.2)

09168-12002

$1.59

16

SCREW, OIL LEVEL (6X10) | MODEL Y/K1/K2

09128-06044

$1.49

16

BOLT | MODEL K3/K4 This part replaces 01550-06103.

01550-0610A

$1.97

17

GASKET (6.2X11X1.2)

09168-06004

$1.49

18

COVER, MAGNETO | MODEL Y/K1

11351-29F10

Unavailable

18

COVER, MAGNETO | MODEL K2/K3/K4

11351-29F60

$245.19

19

GASKET, MAGNETO COVER

11483-29F00

$13.36

20

PIN

04211-09149

$1.65

21

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

22

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

23

PLUG, SHAFT | MODEL Y/K1 This part replaces 09248-14005.

09248-14011

$2.98

23

PLUG, T.D.C. | MODEL K2/K3/K4

09248-14011

$2.98

24

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

25

PLUG, CRANK HOLE | MODEL Y/K1

09259-36021

$13.80

25

PLUG, CRANK HOLE | MODEL K2/K3/K4

09259-36016-20H

$13.80

26

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

27

COVER, ENGINE SPROCKET | MODEL Y This part replaces 11360-29F00.

11360-29F50

$76.30

27

COVER, ENGINE SPROCKET | MODEL K1 This part replaces 11360-29F11.

11360-29F50

$76.30

27

COVER, ENGINE SPROCKET | MODEL K2/K3/K4

11360-29F50

$76.30

28

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

29

WASHER (6.5X14X2.0)

09160-06126

$1.91

30

PLATE, FRONT CHAIN GUIDE

27640-29F00

$19.15

31

COVER, STARTER IDLE GEAR | MODEL Y/K1

11352-29F00

Unavailable

31

COVER, STARTER IDLE GEAR | MODEL K2/K3/K4

11352-29F50

$36.79

32

O RING (D:2.6,ID:69.6) This part replaces 09280-71005.

09280-71004

$23.94

33

SCREW This part replaces 02142-06163.

02142-0616A

$1.49
