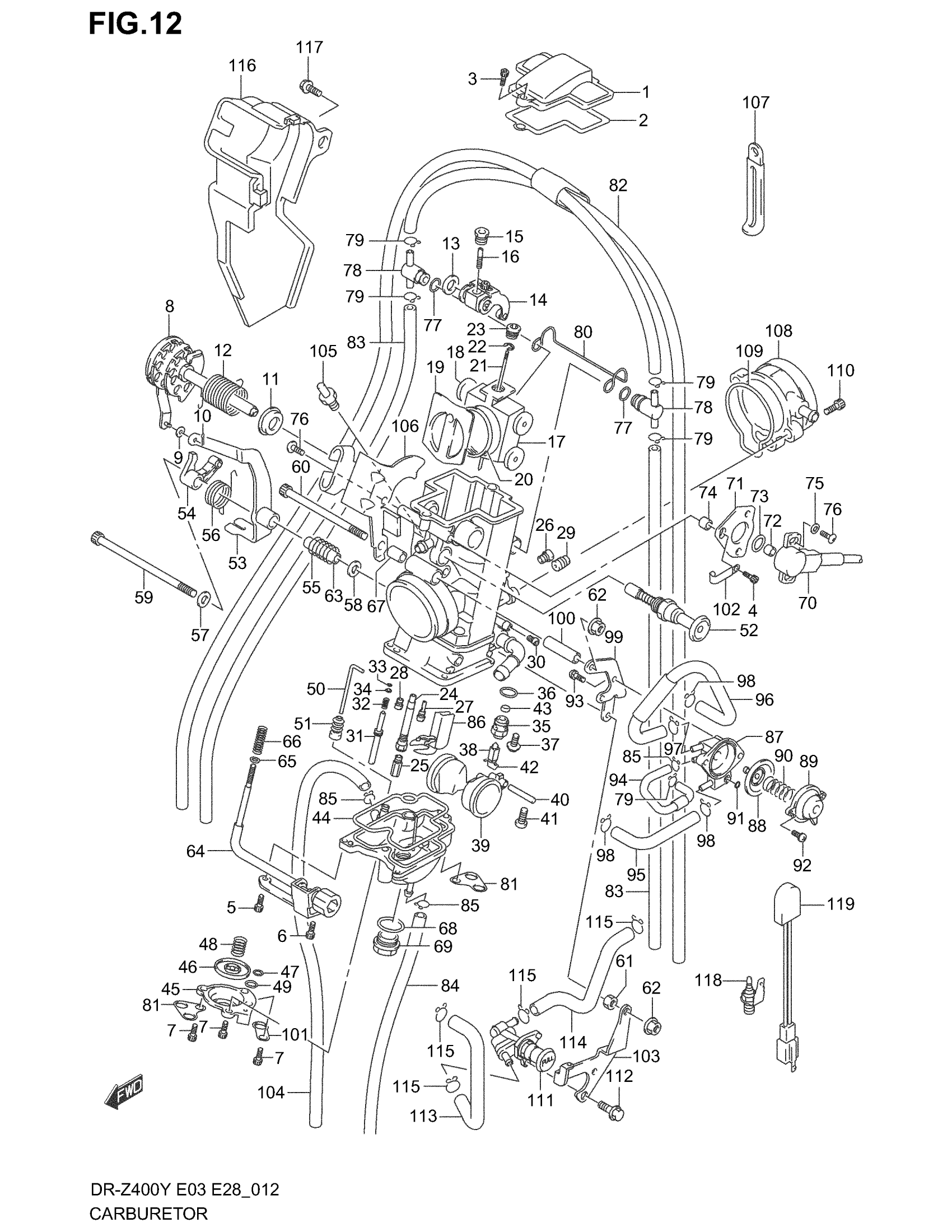

Suzuki DR-Z400 (2004) CARBURETOR (MODEL Y/K1/K2) Diagram

#

Description
Price

CARBURETOR ASSY | DR-Z400Y/K1/K2 This part replaces 13200-29F10.

13200-29FF1

$1,734.43

CARBURETOR ASSY | DR-Z400EY/EK1/EK2; Includes Item(s) 1 - 106 This part replaces 13200-29F40.

13200-29FH0

Unavailable

1

TOP

13261-29F00

Unavailable

2

TOP WASHER

13266-29F00

$21.55

3

BOLT (4X12)

13612-29F10

$6.30

4

BOLT (4X12)

13612-29F10

$6.30

5

BOLT (4X12)

13612-29F10

$6.30

6

BOLT (4X14) | DR-Z400Y/K1/K2

13612-29F20

$6.55

6

BOLT (4X12) | DR-Z400EY/EK1/EK2

13612-29F10

$6.30

7

BOLT (4X8)

13612-29F30

Unavailable

8

SHAFT, THROTTLE

13550-29F00

Unavailable

9

WASHER

13418-29F00

Unavailable

10

PIN

13544-29F00

Unavailable

11

COLLAR

13574-29F00

$11.17

12

SPRING

13573-29F00

Unavailable

13

WASHER

13572-29F00

$3.15

14

LINK ARM

13564-29F00

Unavailable

15

NUT

13607-29F00

Unavailable

16

SCREW

13605-29F00

Unavailable

17

VALVE, THROTTLE

13551-29F00

Unavailable

18

BEARING

13570-29F00

$13.47

19

VALVE

13555-29F00

$316.32

20

LIP SEAL

13559-29F00

$23.73

21

NEEDLE, JET

13383-29F00

$18.62

22

BAR CLIP

13394-29F00

$4.82

23

SCREW, NEEDLE SET

13605-29F10

Unavailable

24

MAIN NOZZLE

13342-29F00

$58.13

25

JET, MAIN (142)

09491-28020

$18.02

26

JET, MAIN AIR (200)

09491-40014

$18.02

27

JET, SLOW (45)

09492-45038

$17.37

28

JET, STARTER (65)

09492-65009

$17.68

29

JET, SLOW AIR (60)

09491-60012

$18.02

30

JET, AIR (90)

09493-90009

Unavailable

31

SCREW, ADJUST (1,1/2)

13279-29F00

$11.18

32

SPRING

13271-29F00

$4.43

33

O RING

13295-26E00

$4.34

34

WASHER

13291-26E00

$2.93

35

VALVE SET

13371-29F00

$32.20

36

O RING

13374-29F00

$4.80

37

SCREW

13601-29F00

$7.48

38

VALVE, FLOAT

13370-29F00

$25.30

39

FLOAT

13250-29F00

$67.73

40

PIN

13254-26E00

$4.43

41

SCREW

13602-43E00

$3.05

42

CLIP

13375-26E00

$5.44

43

STRAINER

15165-24F00

$9.37

44

PACKING

13251-29F00

$35.25

45

COVER

13488-29F00

$34.37

46

DIAPHRAGM

13491-29F00

$37.88

47

U RING This part replaces 13497-14F00.

13497-14F01

$3.32

48

SPRING

13494-15F00

$3.71

49

O RING

13673-26E10

$4.10

50

ROD

13487-29F00

$23.85

51

CAP This part replaces 13499-29F00.

13499-29F01

$5.47

52

VALVE, STARTER

13410-29F00

$91.08

53

LINK LEVER

13490-29F00

Unavailable

54

LINK LEVER

13490-29F10

$18.02

55

SPRING

13494-29F00

Unavailable

56

SPRING

13494-29F10

$12.97

57

WASHER

13615-29F00

Unavailable

58

COLLAR

13582-29F00

Unavailable

59

BOLT

13612-29F40

Unavailable

60

BOLT | DR-Z400Y/K1/K2

13612-29F50

Unavailable

60

BOLT | DR-Z400EY/EK1/EK2

13612-29F40

Unavailable

61

NUT | DR-Z400Y/K1/K2

13607-29F10

Unavailable

62

NUT

13607-24F00

$3.22

63

COLLAR

13582-29F10

Unavailable

64

SCREW,STOP This part replaces 13270-29F00.

13270-29F01

$63.58

65

WASHER

13427-26E00

$3.70

66

SPRING

13271-26EA0

$6.88

67

COLLAR

13582-29F20

Unavailable

68

O RING

13246-29F00

$6.20

69

BOLT

13247-29F00

$62.88

70

SENSOR, THROTTLE

13580-29F00

$268.93

71

PLATE

13627-29F00

Unavailable

72

COLLAR

13582-24F00

$9.72

73

O RING

13575-03F00

$5.32

74

COLLAR

13582-29F30

$8.20

75

WASHER

13572-14F00

$3.28

76

BOLT (4X8)

13612-29F00

$6.55

77

O RING This part replaces 13673-26E00.

13673-26E01

$4.25

78

JOINT

13687-29F00

$16.90

79

CLIP

09401-06101

$2.03

80

CLIP

13692-29F00

$28.12

81

BINDER

13693-36E00

$6.77

82

PIPE

13680-29F00

Unavailable

83

PIPE

13686-29F00

Unavailable

84

PIPE, RUBBER

13684-29F00

Unavailable

85

CLIP This part replaces 09401-05402.

09401-05402-XC0

$1.65

86

PLATE

13257-29F00

$39.52

87

BODY, DIAPHRAGM

13484-29F00

Unavailable

88

DIAPHRAGM

13480-29F00

$47.00

89

COVER

13484-29F10

Unavailable

90

SPRING

13481-29F00

$5.67

91

U RING This part replaces 13486-15F00.

13486-15F01

$2.46

92

SCREW

13601-15F20

Unavailable

93

SCREW This part replaces 02112-34083.

02112-3408A

$2.38

94

PIPE,RUBBER This part replaces 13680-29F10.

13680-29F11

$31.32

95

PIPE,RUBBER This part replaces 13681-29F00.

13681-29F01

$14.92

96

PIPE, RUBBER

13680-29F20

$54.32

97

CLIP

09401-07101

Unavailable

98

CLIP

13671-29F00

$3.08

99

PLATE, STAY

13628-29F00

Unavailable

100

COLLAR

13582-29F40

$15.92

101

BINDER

13693-28E00

$8.18

102

BINDER

13432-29F00

$16.38

103

PLATE, STAY | DR-Z400Y/K1/K2

13629-29F00

Unavailable

104

PIPE

13683-29F00

Unavailable

105

SCREW, STOP

13296-29F00

Unavailable

106

PLATE, STAY This part replaces 13621-29F00.

13621-29F10

Unavailable

107

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

107

CLAMP, OVER FLOW HOSE LOW

09404-08420

$3.16

108

JOINT, AIR CLEANER

13670-29F00

$66.40

109

O RING, AIR CLEANER JOINT

13278-29F00

$8.26

110

BOLT This part replaces 07130-05123.

07130-0512B

$2.50

111

STARTER | DR-Z400Y/K1/K2

13440-29F00

Unavailable

112

BOLT | DR-Z400Y/K1/K2 This part replaces 01547-06163.

01547-0616B

$2.45

113

HOSE, STARTER TO HEAD | DR-Z400Y/K1/K2

13697-29F00

Unavailable

114

HOSE, STARTER TO AIR CLEANER | DR-Z400Y/K1/K2

13697-29F10

Unavailable

115

CLIP | DR-Z400Y/K1/K2

09401-08401

$1.54

116

COVER, CARBURETOR

13311-29F00

$31.63

117

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

118

HEATER ASSY, CARBURETOR | OPT

13650-25E01

$44.48

119

SWITCH, CARB HEATER THERMO | OPT

13655-16F00

$66.00
