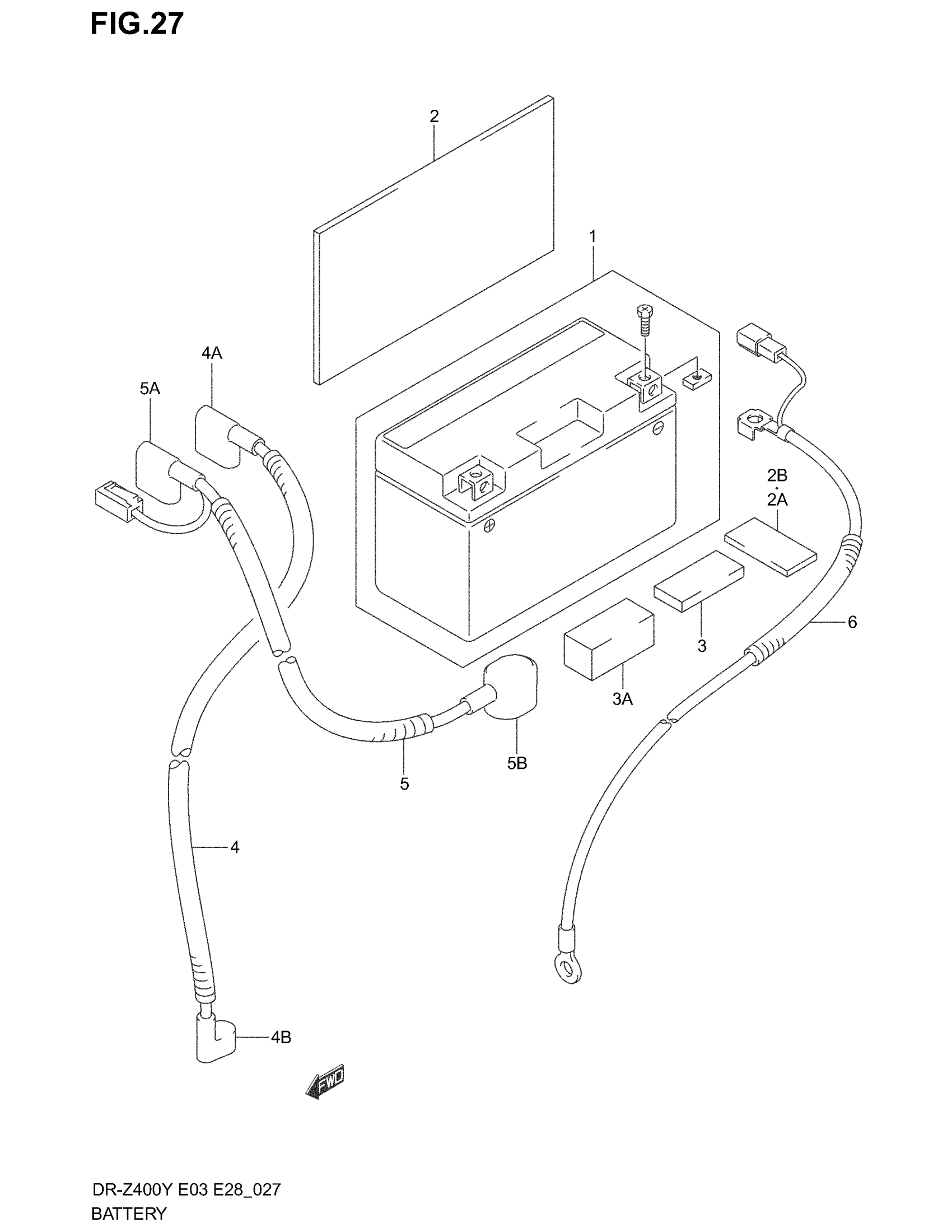

Suzuki DR-Z400 (2004) BATTERY (DR-Z400EY/EK1/EK2/EK3/EK4) Diagram

#

Description
Price

1

BATTERY ASSY (12V,6AH) | MODEL Y GT7B-4 This part replaces 33610-29F00.

33610-29F20

$105.06

1

BATTERY ASSY (12V,6AH) | MODEL K1/K2/K3/K4 YT7B-BS

33610-29F20

$105.06

2

PROTECTOR (170X95X3) | MODEL Y CUT AS REQUIRED PROFILE (115X50),(50X30)

33651-37000

$4.48

2

PROTECTOR (170X95X3) | MODEL K1/K2/K3 CUT AS REQUIRED PROFILE (115X50)

33651-37000

$4.48

2A

PROTECTOR (80X30X1.0) | MODEL K1

33652-29F00

$3.03

2B

PROTECTOR (80X80X2.0) | MODEL K1 CUT AS REQUIRED PROFILE (80X30X2.0)

33652-07D00

$5.64

3

CUSHION, REAR FENDER REAR | MODEL Y/K1/K2 This part replaces 33652-28000.

33651-37000

$4.48

3

CUSHION, REAR FENDER REAR | MODEL K3/K4 This part replaces 33652-28010.

33651-37000

$4.48

3A

CUSHION (50X42X2.0) | MODEL Y/K1/K2 This part replaces 51553-42AA0.

51553-15D40

$7.18

4

WIRE, STARTER MOTOR LEAD | Includes Item(s) 4A - 4B

33810-29F00

$62.07

4A

CAP, STARTER RELAY

31861-29F00

$7.63

4B

CAP, STARTER MOTOR

31861-29F20

Unavailable

5

WIRE, BATTERY PLUS LEAD | Includes Item(s) 5A - 5B

33820-29F00

$65.18

5A

CAP, STARTER RELAY

31861-29F10

$7.35

5B

CAP, BATTERY PLUS

33624-29F00

$6.55

6

WIRE, BATTERY MINUS LEAD

33860-29F00

$50.10
