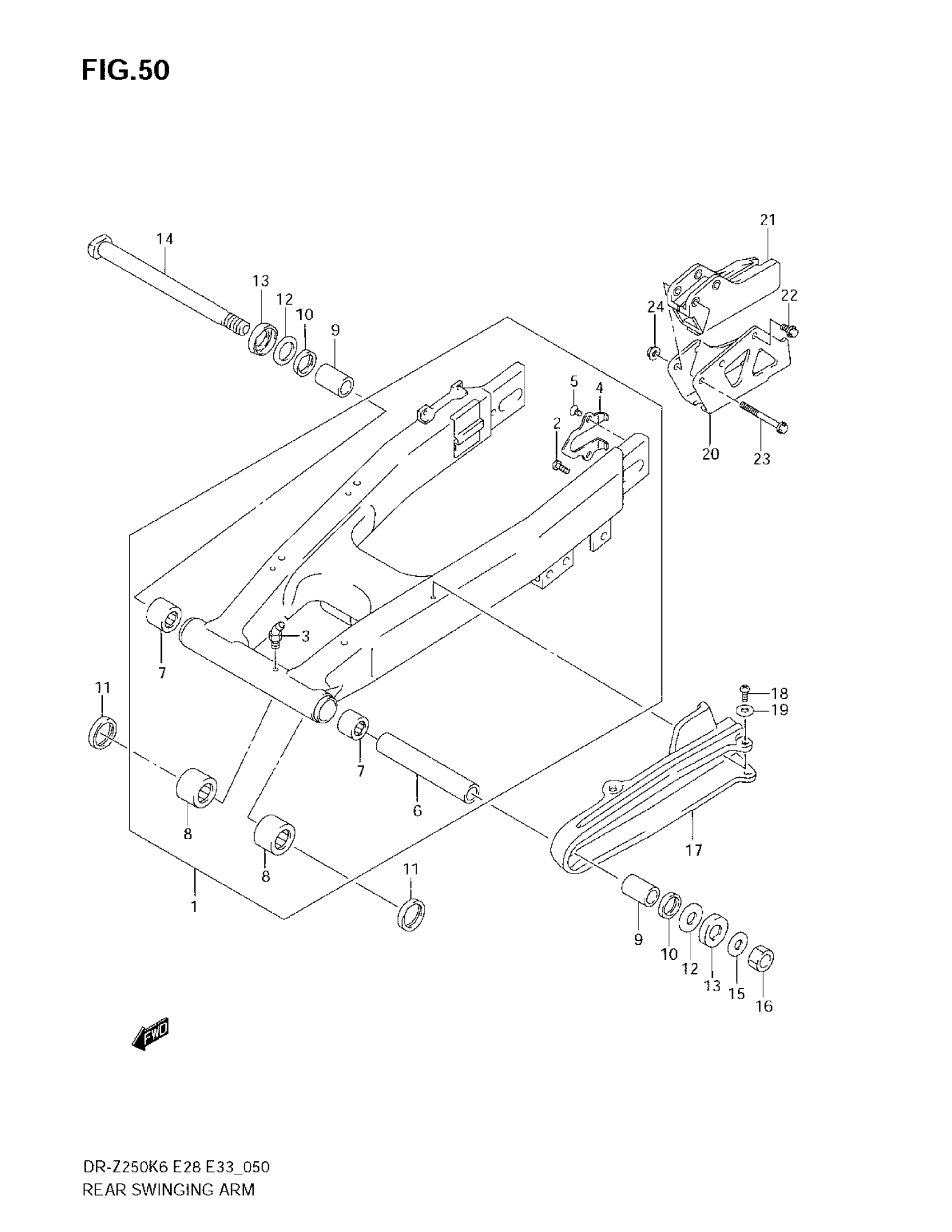

Suzuki DR-Z250 (2007) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 8

61000-13E20

Unavailable

2

BOLT, STOPPER

61431-13E00

$11.55

3

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

4

.PLATE RR SWING ARM AXLE

61128-29E00

$18.33

5

SCREW (5X8)

09126-05009

$2.28

6

SPACER

61282-13E00

Unavailable

7

BEARING, PIVOT (22X29X30)

09263-22017

$22.58

8

BEARING, REAR (20X27X23.5)

09263-20071

$25.92

9

SPACER, PIVOT BEARING

61251-14D00

$27.97

10

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

11

OIL SEAL, REAR (20X27X5)

09283-20031

$5.24

12

THRUST WASHER

08211-17341

$2.50

13

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

14

SHAFT, PIVOT

61211-13E00

Unavailable

15

WASHER | MODEL K6 This part replaces 08322-01163.

08322-0116A

$1.84

15

WASHER | MODEL K7

08322-0116A

$1.84

16

NUT

09159-16007

$12.61

17

BUFFER,CHAIN TOUCH DEFENSE

61273-13E01

$45.83

18

SCREW | MODEL K6 This part replaces 02142-06123.

02142-0612A

$1.49

18

SCREW | MODEL K7

02142-0612A

$1.49

19

WASHER

09169-06057

$3.18

20

PLATE, CHAIN GUIDE This part replaces 61342-36E30.

61342-37F00

$66.30

21

GUIDE, CHAIN This part replaces 61341-37F00.

61341-35G00

$48.05

22

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

23

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

24

NUT This part replaces 08319-31063.

08319-3106A

$2.03
