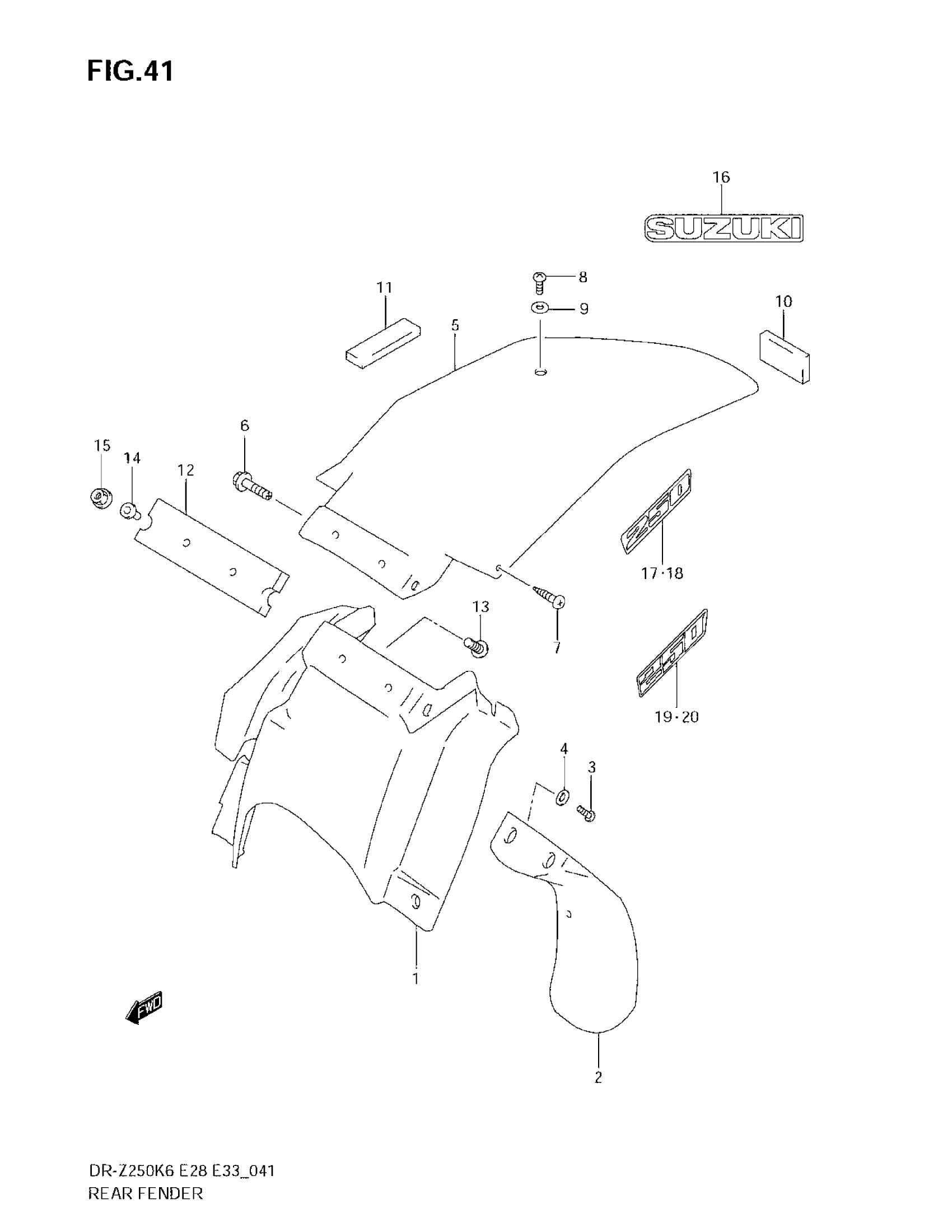

Suzuki DR-Z250 (2007) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-13E10

$37.73

2

GUARD, REAR FENDER MUD

63114-13E00

$32.62

3

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

4

WASHER This part replaces 09169-06045.

09169-06055

$2.27

5

BODY, RR FENDER RR (YELLOW) | MODEL K6 This part replaces 63113-13E00-YU1.

63113-13E10-YU1

$110.67

5

BODY, RR FENDER RR (YELLOW) | MODEL K7

63113-13E10-YU1

$110.67

6

BOLT This part replaces 09116-06002.

09116-06109

$3.00

7

SCREW

09139-06083

$2.26

8

SCREW (6X20) | MODEL K6

09139-06050

$4.73

8

SCREW, UPPER | MODEL K7 This part replaces 09139-06165.

09139-06168

$2.62

9

WASHER

09169-06016

$1.65

10

CUSHION

56314-48B10

$7.75

11

PROTECTOR

63193-13E00

Unavailable

12

CUSHION, FRONT

63115-13E00

Unavailable

13

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

14

WASHER

09169-06062

$2.50

15

NUT

09159-05043

$2.22

16

EMBLEM,"SUZUKI" | MODEL K6 This part replaces 68721-13A00-CFL.

68721-13A01-CFL

Unavailable

16

EMBLEM SUZUKI (YELLOW BLACK) | MODEL K7 This part replaces 68721-13A00-GY8.

68721-13A01-GY8

$12.73

17

EMBLEM, "250" RH | MODEL K6

68171-13E10-CFL

Unavailable

18

EMBLEM, "250" LH | MODEL K6

68172-13E10-CFL

Unavailable

19

EMBLEM, "250" RH | MODEL K7

68171-13E20-GY8

Unavailable

20

EMBLEM, "250" LH | MODEL K7

68172-13E20-GY8

Unavailable
