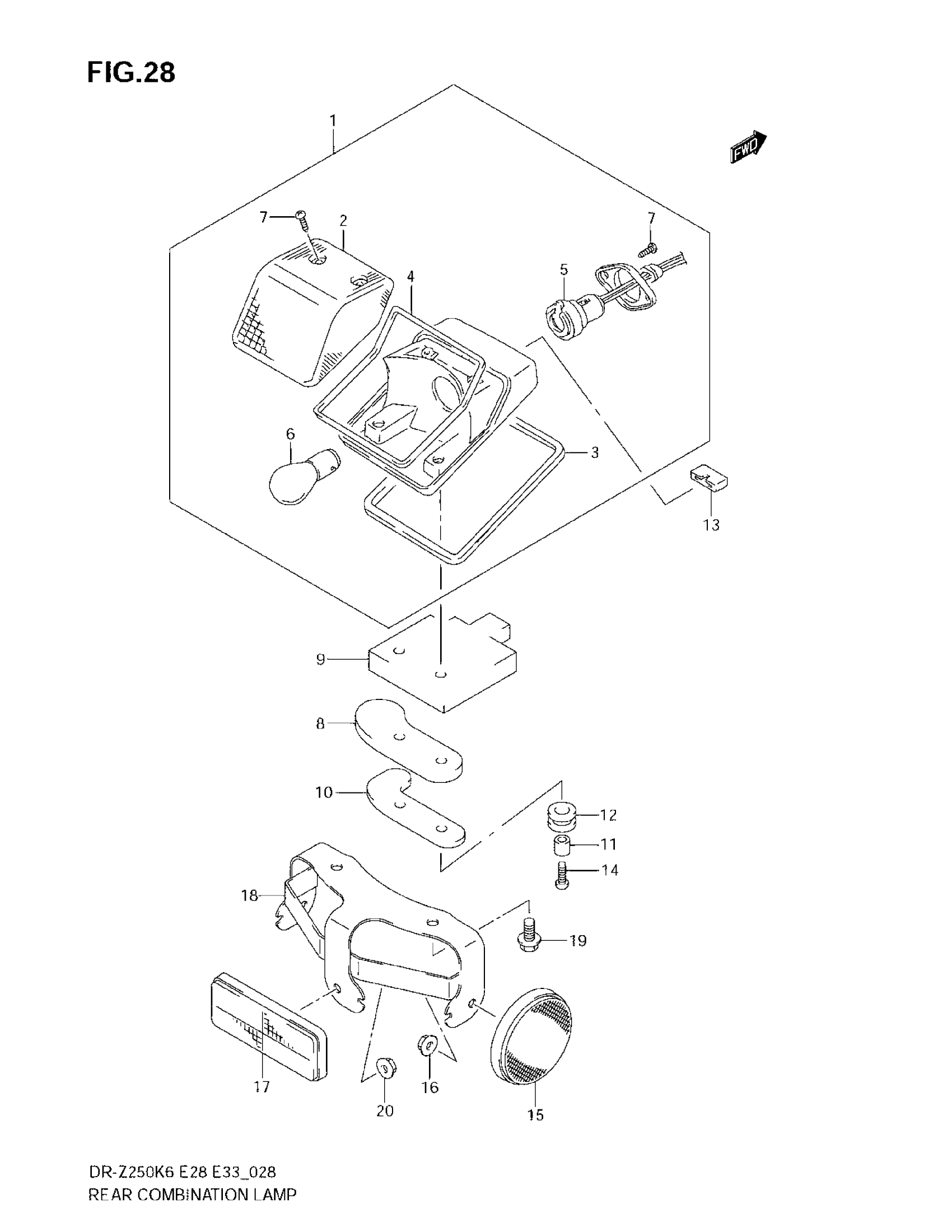

Suzuki DR-Z250 (2007) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR | Includes Item(s) 2 - 7 This part replaces 35710-13E10.

35710-13E11

$124.20

2

LENS

35712-13E00

$25.03

3

GASKET

35713-13E00

Unavailable

4

GASKET

35713-13E10

$14.47

5

SOCKET & CORD This part replaces 35718-13E00.

35718-13E01

$26.45

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

SCREW This part replaces 03211-04123.

03211-0412A

$2.23

8

CUSHION, BRACKET

35781-13E00

Unavailable

9

CUSHION, LOWER

35781-13E10

Unavailable

10

BRACKET

35793-13E00

Unavailable

11

SPACER (6.5X9X12.5)

09180-06267

$4.10

12

CUSHION

09320-09016

$1.97

13

CUSHION

09329-02002

$2.40

14

SCREW

02112-0620A

$1.49

15

REFLEX REFLECTOR, REAR | E28

35970-30910

$44.56

16

NUT | E28

08316-1005A

$2.19

17

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$20.88

18

BRACKET, SIDE & REAR | E28

35974-13E00

Unavailable

19

BOLT, REAR BRACKET | E28

01550-0612A

$1.97

20

NUT, REAR | E28

08316-1005A

$2.19
