2007 Suzuki DR-Z250 Headlamp Cover Diagram

← All diagrams

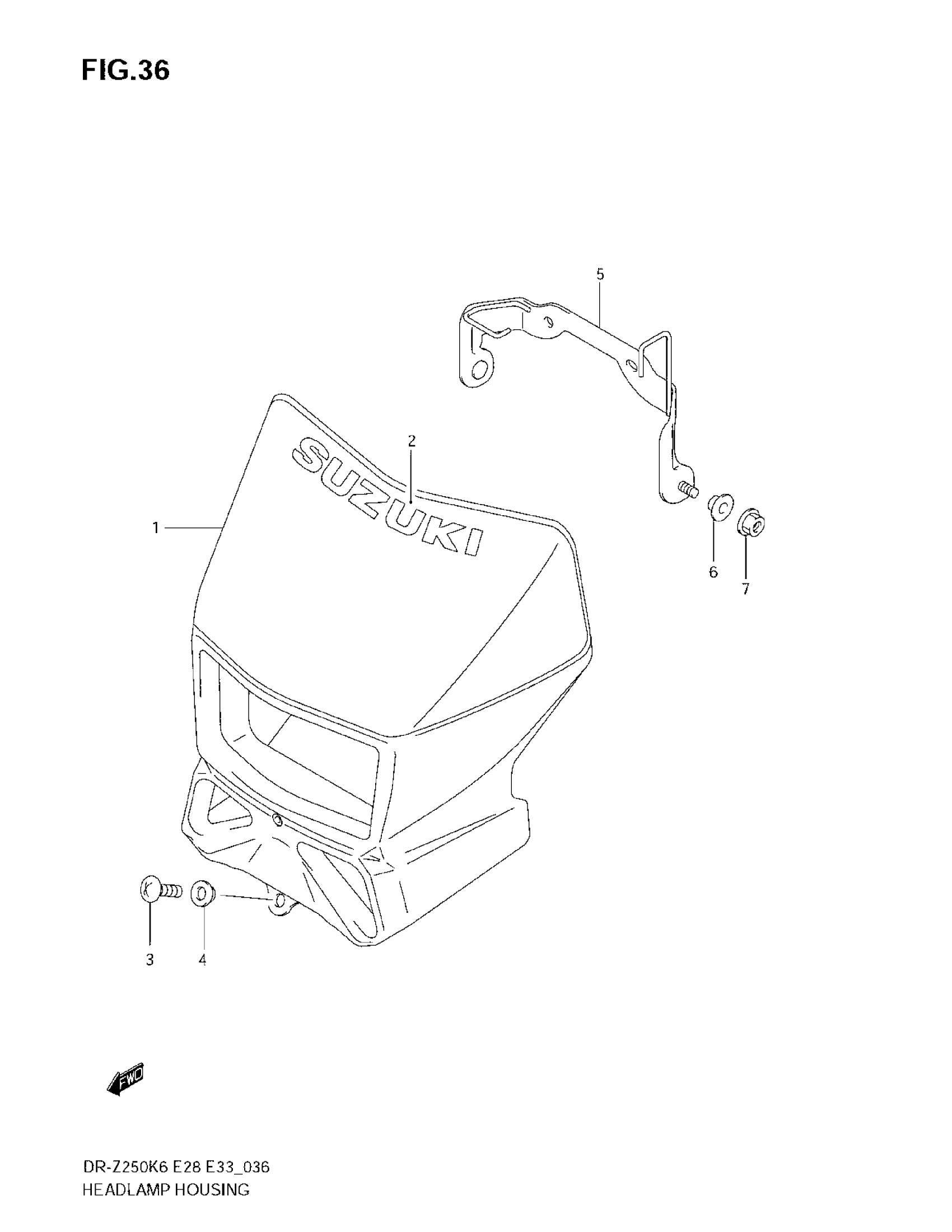

Find the part on the Headlamp Cover diagram for your 2007 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z250 Headlamp Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLAMP (YELLOW) | MODEL K6 This part replaces 51810-29F00-YU1.

51810-29F60-YU1

1
Out of stock

1

COVER, HEADLAMP (YELLOW) | MODEL K7

51810-29F60-YU1

1
Out of stock

2

TAPE | MODEL K6

68725-29F20-CLM

1
Out of stock

2

TAPE | MODEL K7

68725-29F20-8YM

1
Out of stock

3

SCREW

09136-05048

1

$2.67

In stock

4

WASHER

09169-05012

1

$2.58

In stock

5

BRACKET, HEADLAMP

51860-13E10

1
Out of stock

6

WASHER

09169-06037

2

$2.67

In stock

7

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock
