Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9 This part replaces 35100-03D03.

35100-03D04

$217.90

2

UNIT, LAMP

35121-03D02

$59.80

3

GASKET, HEADLAMP

35125-03D00

Unavailable

4

BRACKET, LAMP

35230-05D00

$11.93

5

.NUT ADJUSTING

35135-12E20

$4.20

6

SCREW

35136-16700

$5.10

7

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.83

8

CORD ASSY This part replaces 35171-03D03.

35171-03D10

$43.10

9

BULB (12V 35/36.5W)

09471-12105

$62.00

10

SCREW, HEADLAMP ADJUST

09125-04034

$4.62

11

SPRING, HEADLAMP ADJUST

09440-07041

$2.35

12

SCREW This part replaces 03511-04103.

03511-0410A

$1.90

13

REFLEX REFLECTOR, FR SIDE | E28

35950-14A00

$15.95

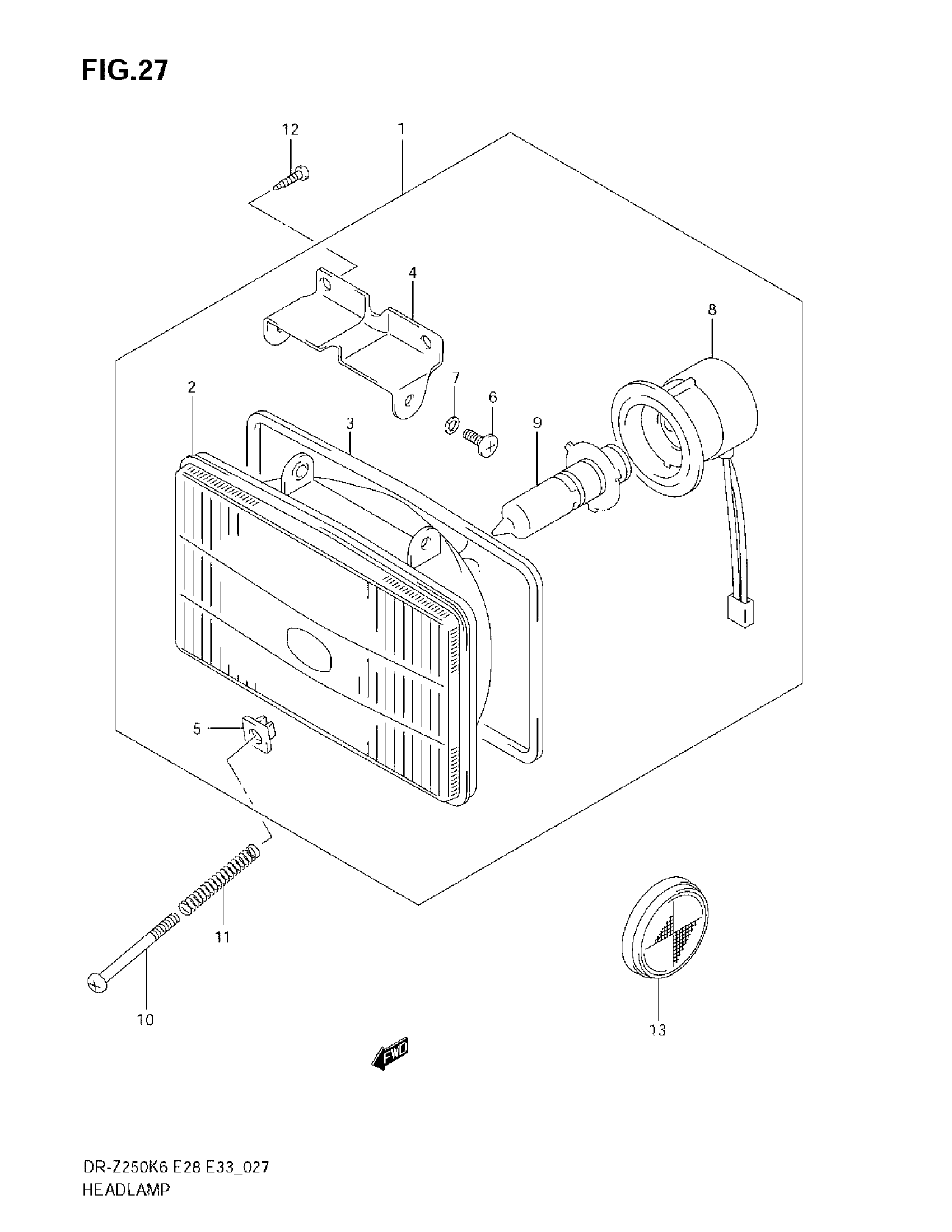

Suzuki DR-Z250 (2007) HEADLAMP Diagram
