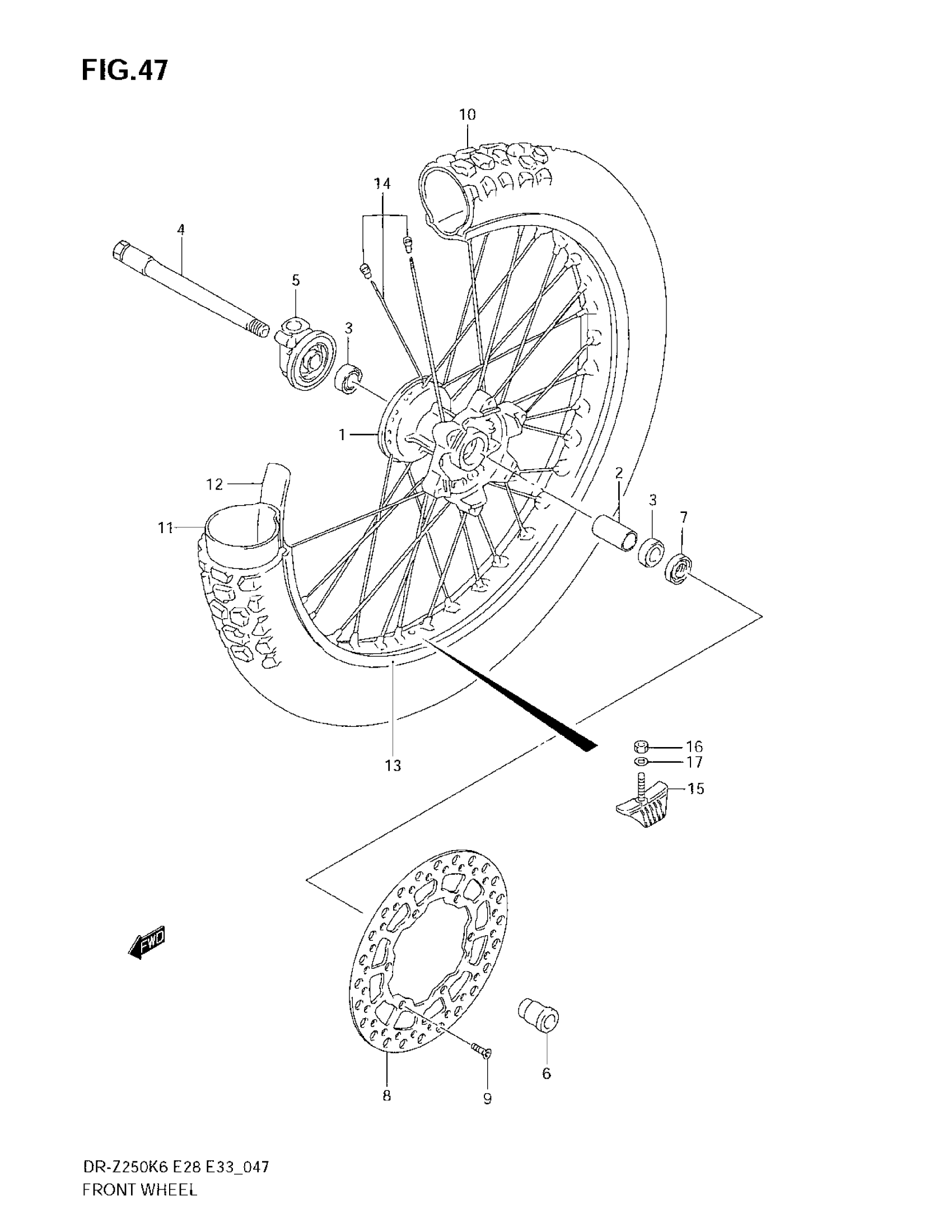

Suzuki DR-Z250 (2007) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-29E00

Unavailable

2

SPACER, BEARING

54730-01B00

$53.92

3

BEARING

08123-60037

$21.77

4

AXLE, FRONT

54711-05D01

$97.62

5

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

$127.20

6

SPACER, FRONT AXLE LH

54751-05D00

$19.55

7

OIL SEAL (23X35X6)

09284-23001

$8.01

8

DISC, FRONT BRAKE LH

59221-29F00

$303.63

9

SCREW, DISC

09120-06014

$2.45

10

TIRE, FRONT, 80/100-21 51M (DUNLOP)

55110-36E10

Unavailable

11

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

$31.37

12

PROTECTOR, WHEEL INNER TUBE

55261-44AF0

$6.88

13

RIM, FRONT WHEEL (1.60X21)

55311-28C01

Unavailable

14

SPOKE SET, FRONT WHEEL

55320-28E00

$137.05

15

STOPPER, BEAD (1.6)

65270-08G00

$54.75

16

NUT This part replaces 08310-00083.

08310-0008A

$1.84

17

WASHER This part replaces 08322-01083.

08322-0108A

$1.92
