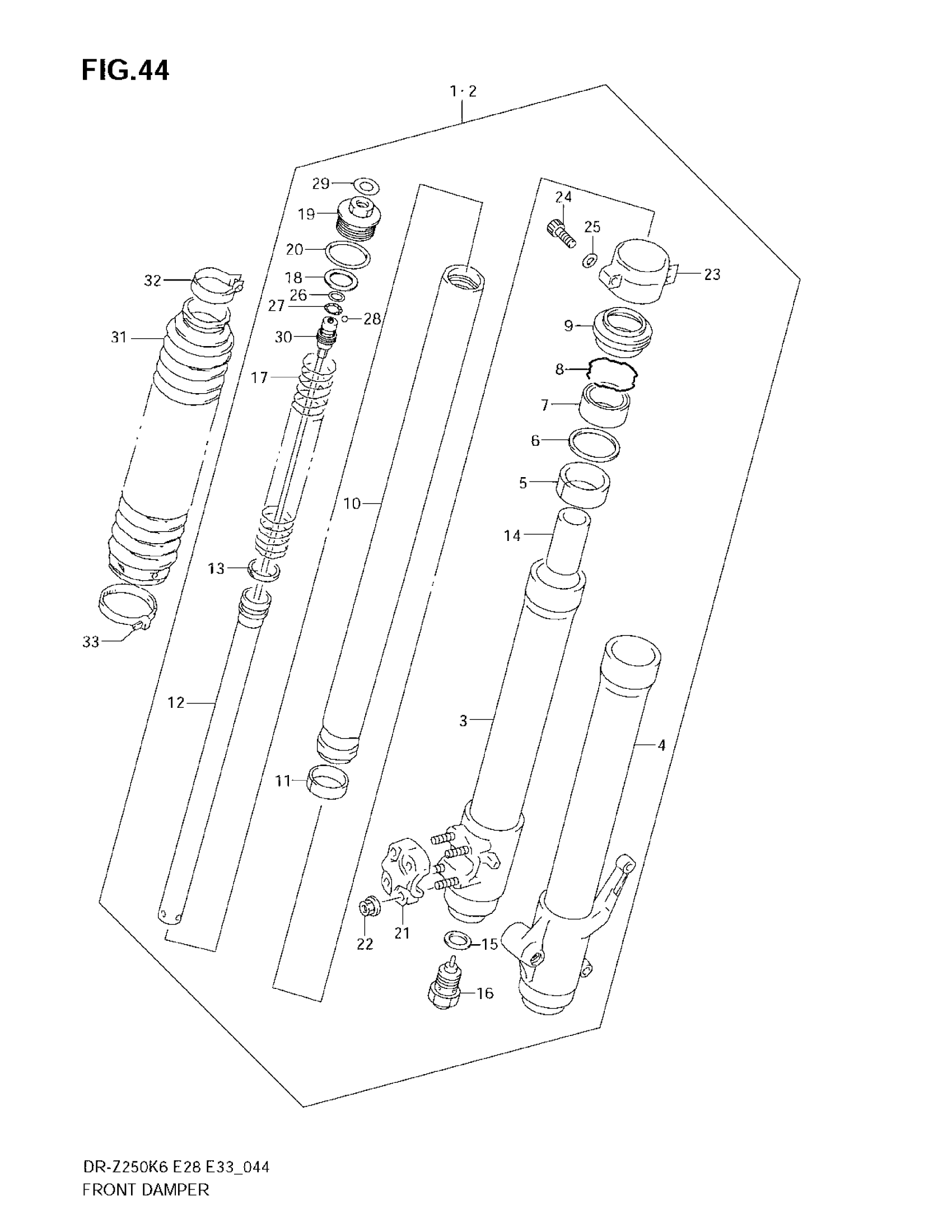

Suzuki DR-Z250 (2007) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-13EB0

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 30

51104-13EB0

Unavailable

3

TUBE, OUTER RH

51130-13EB0

Unavailable

4

TUBE, OUTER LH

51140-13EB0

Unavailable

5

BUSH, GUIDE

51152-13E00

$19.74

6

.SPACER, SEAL

51168-17C00

$6.28

7

SEAL, OIL

51153-14D00

$22.96

8

RING, STOPPER

51556-38B00

$7.22

9

SEAL, DUST

51173-14D00

$30.53

10

TUBE, INNER

51110-13EB0

Unavailable

11

BUSH, SLIDE

51121-13E00

$18.28

12

ROD, FRONT DAMPER

51190-13EB0

Unavailable

13

BUSH, SLIDE

51197-14E30

Unavailable

14

PIECE, OIL LOCK

51195-13E00

Unavailable

15

GASKET

51148-08D00

$7.63

16

BOLT, CENTER

51170-08D00

Unavailable

17

SPRING, FRONT

51171-13EB0

Unavailable

18

SEAT, SPRING

51186-17C00

$7.53

19

BOLT, FORK

51351-14E90

Unavailable

20

O RING

51117-17C00

$5.95

21

HOLDER, AXLE RH

51132-13E00

Unavailable

22

NUT, AXLE HOLDER

08319-31067

$2.03

23

HOLDER

51203-13E00

$52.92

24

BOLT

07130-05207

$3.03

25

WASHER

09160-05044

$2.02

26

O RING

09280-14011

$4.77

27

EXPANDER

51836-17C00

Unavailable

28

BALL

51835-17C00

$3.28

29

LABEL, S-H

51149-34E00

Unavailable

30

CASE, ADJUSTER

51389-13E00

Unavailable

31

BOOT This part replaces 51571-14D00-019.

51571-14D01-019

$70.55

32

BAND, BOOT UPPER

51575-14D00

$12.57

33

BAND, BOOT LOWER

51576-42AA0

$13.28
