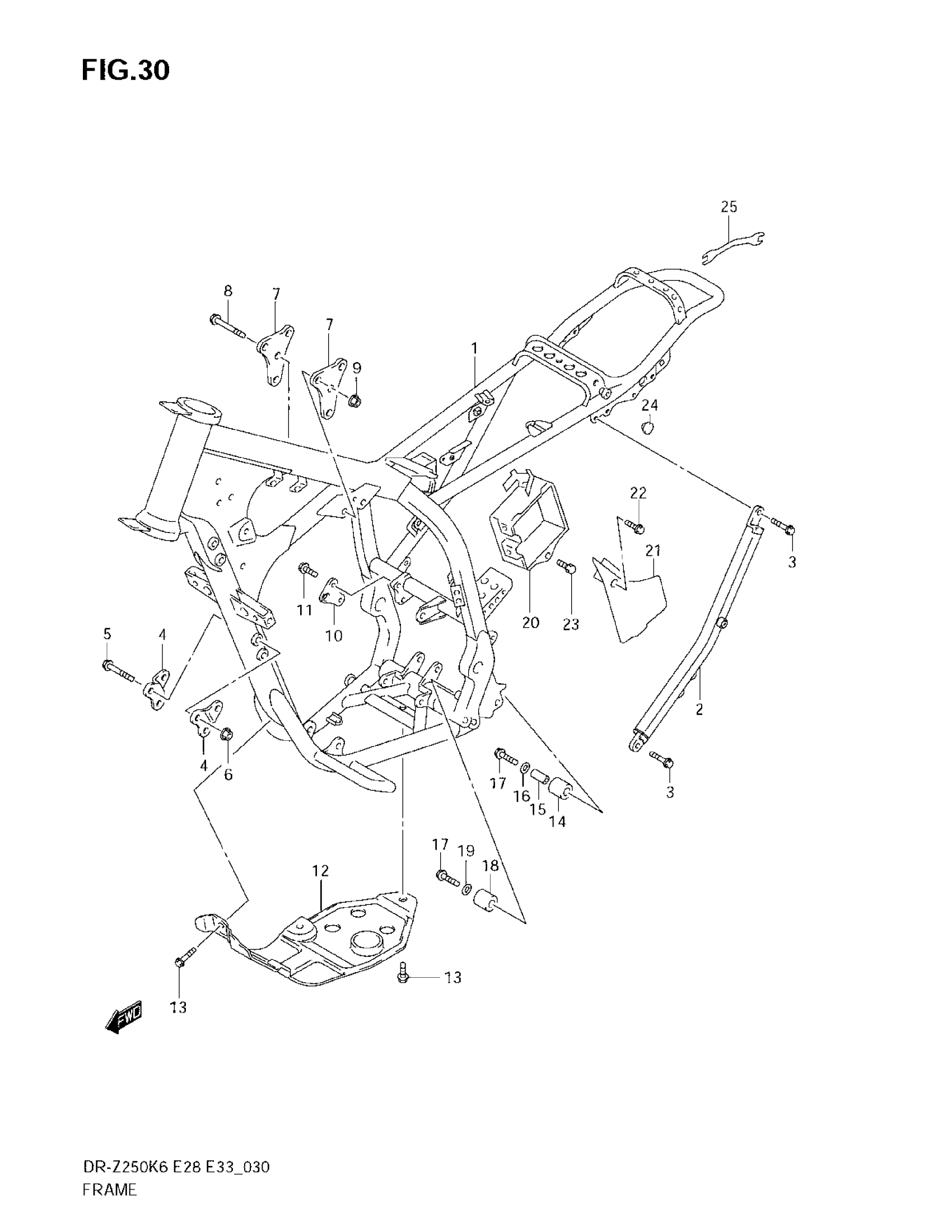

Suzuki DR-Z250 (2007) FRAME Diagram

#

Description
Price

1

FRAME (GRAY)

41100-13E40-YU8

Unavailable

2

TUBE, FRAME SIDE LH

41670-13E10

Unavailable

3

BOLT (8X20) | MODEL K6

09103-08266

$2.71

3

BOLT (8X20) | MODEL K7

09103-08430

$3.15

4

PLATE, HEAD MOUNT FRONT

41911-13E00

Unavailable

5

BOLT

09103-08141

Unavailable

6

NUT

09159-08034

$1.62

7

PLATE, HEAD MOUNT REAR

41993-13E02

Unavailable

8

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.49

9

NUT This part replaces 08319-31088.

08319-3108A

$2.32

10

PLATE, MOUNT REAR RH

41921-13E01

Unavailable

11

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

12

PROTECTOR, ENGINE

42510-13E00

Unavailable

13

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

14

ROLLER CHAIN CONTROL UPR

43911-13E00

$21.84

15

SPACER | MODEL K6

09180-08156

$6.70

15

SPACER | MODEL K7 This part replaces 09180-08119.

09180-08156

$6.70

16

WASHER

08211-08201

$2.03

17

BOLT

09103-08178

$4.69

18

ROLLER, CHAIN CONTROL LOWER

43910-27C11

$64.67

19

WASHER

09181-08111

$1.93

20

HOLDER, BATTERY

41540-13E00

Unavailable

21

CAP, BATTERY HOLDER

41545-13E01

$22.25

22

BOLT

09113-06001

$2.73

23

BOLT

09111-06057

$5.00

24

CAP (OD:20)

09250-08005

$2.45

25

OPEN SPANNER

09813-00039

Unavailable
