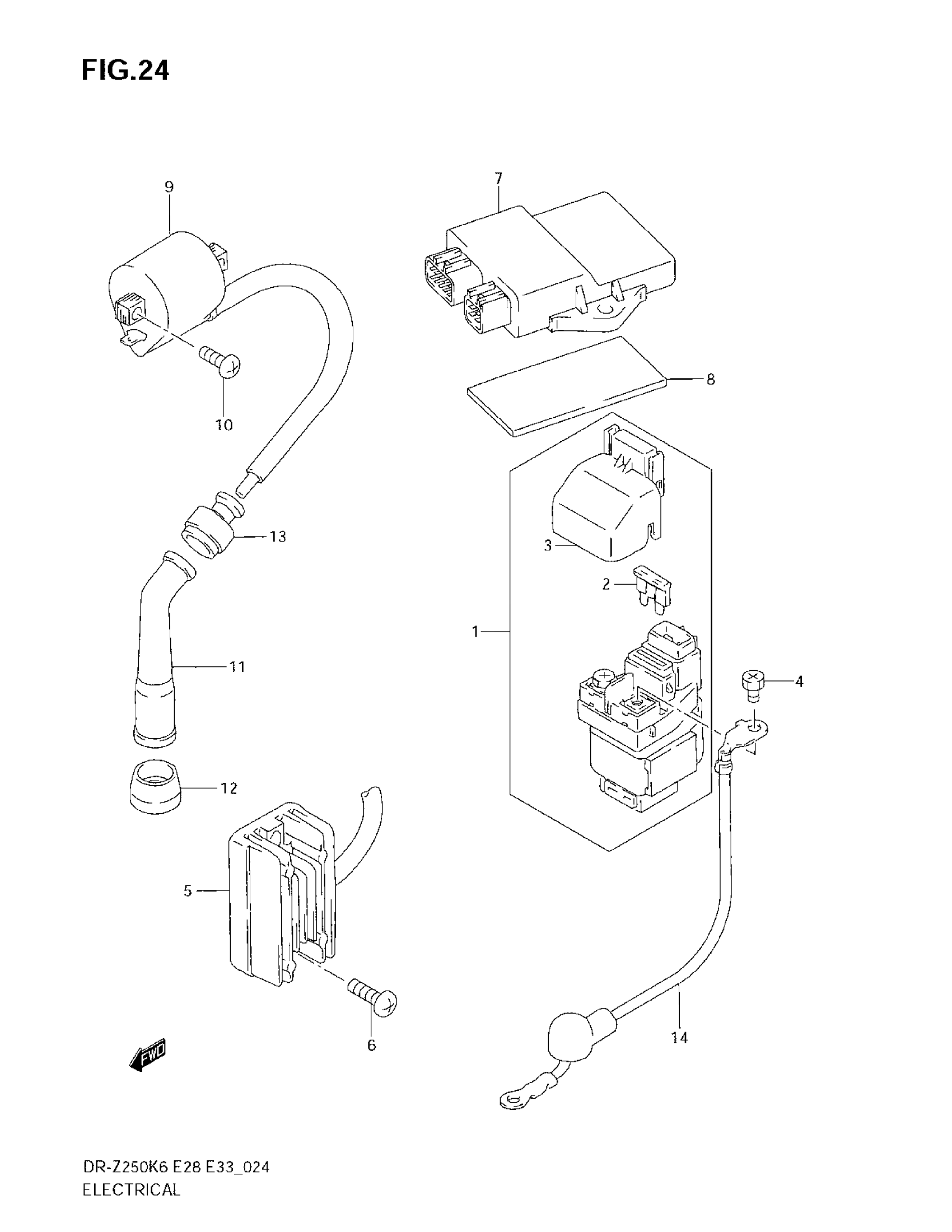

Suzuki DR-Z250 (2007) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-13E00

$123.45

2

FUSE (10A)

09481-10101

$2.07

3

COVER

31861-13E00

Unavailable

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-13E10.

32800-13E11

Unavailable

6

SCREW

02162-0620C

$1.71

7

CDI UNIT

32900-13EA0

$988.23

8

PROTECTOR (170X95X3.0) | CUT AS REQUIRED (20X90)

33651-37000

$4.48

9

COIL ASSY, IGNITION

33410-13E00

$121.20

10

SCREW

02112-0616A

$1.49

11

CAP, SPARK PLUG

33510-45010

$24.99

12

SEAL, SPARK PLUG

33541-47D00

$7.83

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

14

WIRE, STARTER MOTOR

33810-13E00

Unavailable
