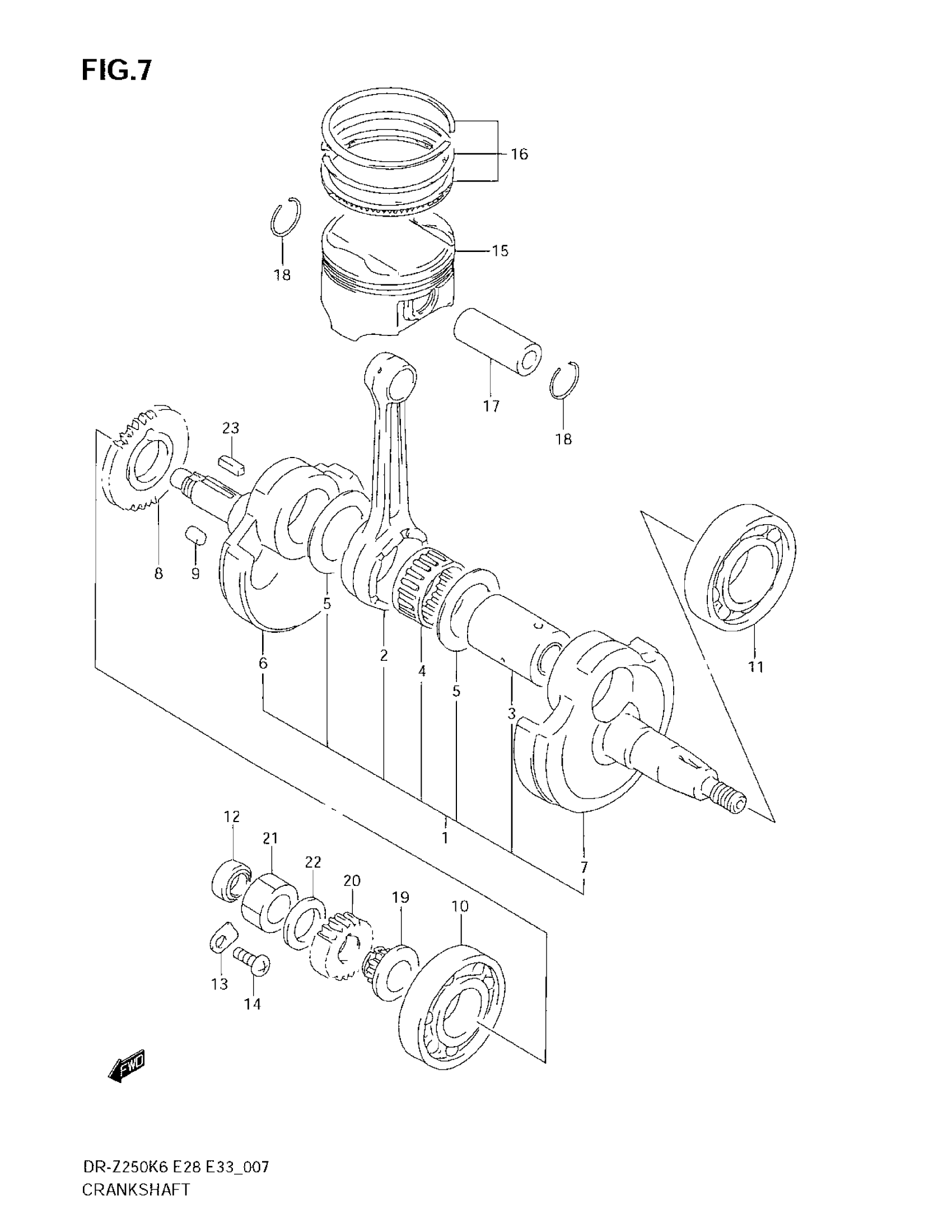

Suzuki DR-Z250 (2007) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-13E01

Unavailable

2

CONNECTING ROD

12161-13E00

Unavailable

3

PIN, CRANK

12210-14D03

$86.13

4

BEARING (34X43X20)

09263-34007

Unavailable

5

WASHER (34X52X1)

09160-34003

$8.62

6

CRANKSHAFT, RH

12221-13E00

Unavailable

7

CRANKSHAFT, LH

12261-13E00-0A0

Unavailable

8

GEAR, CRANK BALANCER DRIVE (NT:34)

12661-13E00

Unavailable

9

PIN

09261-08006

Unavailable

10

BEARING (28X68X18)

09262-28014

$57.95

11

BEARING (28X68X18)

09262-28031-0B0

Unavailable

12

OIL SEAL (14X24X6)

09282-14003

$8.24

13

RETAINER, BEARING

24742-18A00

$4.35

14

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

15

PISTON

12111-13E00-0F0

$101.20

16

RING SET, PISTON

12140-13E00

$74.27

17

PIN, PISTON

12151-17C00

$18.43

18

RING,SNAP

09381-19001

$2.29

19

SPROCKET, CAM CHAIN DRIVE

12731-13E00

Unavailable

20

GEAR, PRIMARY DRIVE (NT:21)

21111-13E01

Unavailable

21

NUT

09140-18004

$3.23

22

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

$3.24

23

KEY

09421-05009

$9.55
