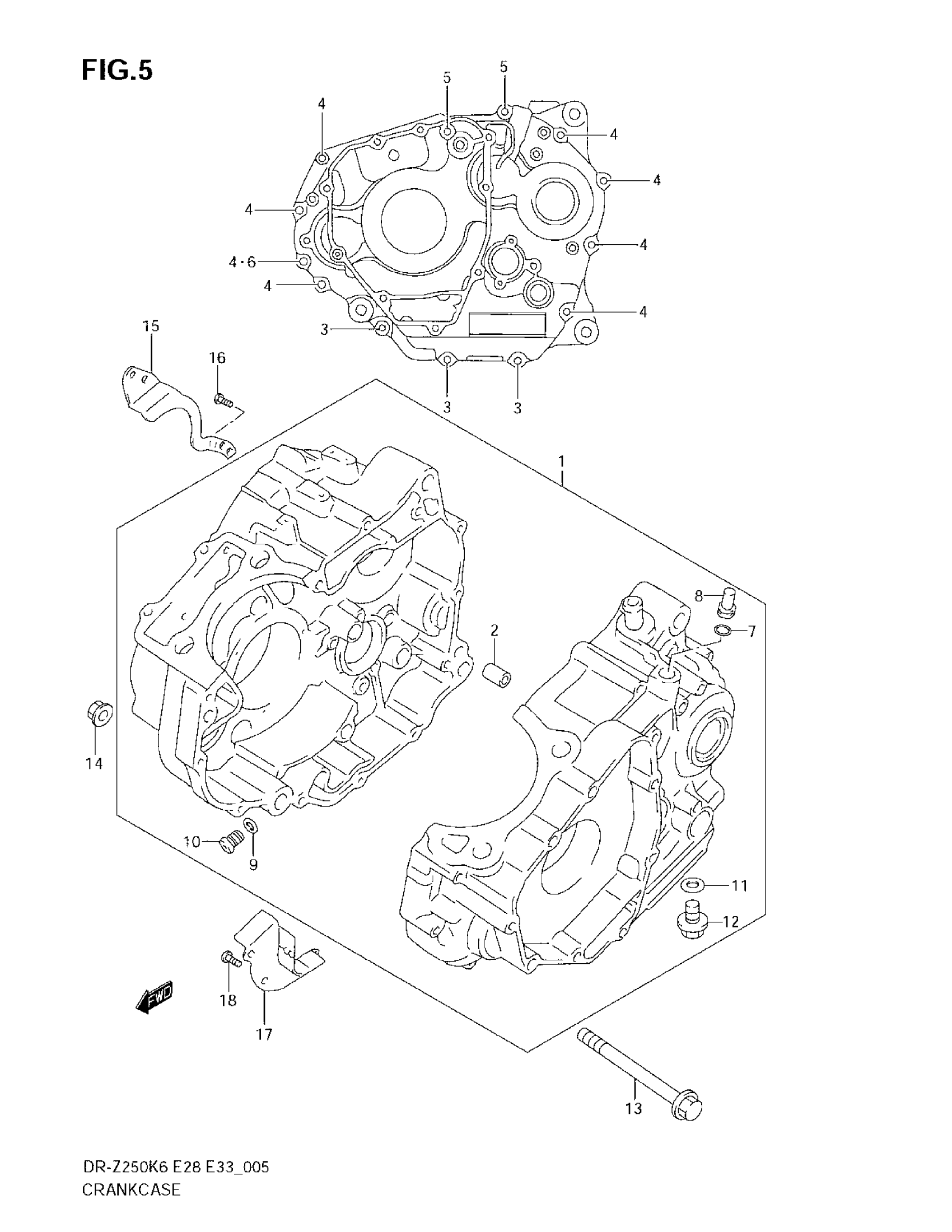

Suzuki DR-Z250 (2007) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K6 This part replaces 11301-13840.

11301-13841

Unavailable

1

CRANKCASE SET | MODEL K7; Includes Item(s) 2 - 12

11301-13841

Unavailable

2

PIN, IDLE GEAR NO.2 (L:27)

09202-10006

Unavailable

3

BOLT | MODEL K6 This part replaces 01547-06403.

01547-0640B

$2.75

3

BOLT | MODEL K7

01547-0640A

$2.32

4

BOLT | MODEL K6 This part replaces 01547-06503.

01547-0650B

$2.75

4

BOLT | MODEL K7

01547-0650A

$2.46

5

BOLT | MODEL K6 This part replaces 01547-06653.

01547-0665B

$3.18

5

BOLT | MODEL K7

01547-0655A

$2.42

6

GASKET, CRANKCASE BOLT

09168-06023

$2.35

7

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

8

JET

09493-24012

Unavailable

9

GASKET (10X14X3.6)

09168-10002

$2.13

10

PLUG

09248-10010

$4.17

11

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

12

PLUG

09247-12106

$2.73

13

BOLT (10X100)

09103-10242

$8.50

14

NUT, REAR SWGARM BRACKET | MODEL K6 This part replaces 09159-10058.

09159-10115

$3.55

14

NUT | MODEL K7

09159-10115

$3.55

15

PLATE, BREATHER OIL RETURN

11317-13E10

Unavailable

16

SCREW | MODEL K6 This part replaces 02112-06123.

02112-0612A

$1.49

16

SCREW | MODEL K7

02112-0612A

$1.49

17

SEPARATOR, CRANKCASE OIL

11323-13E01

Unavailable

18

SCREW (6X12)

09125-06110

$2.12
