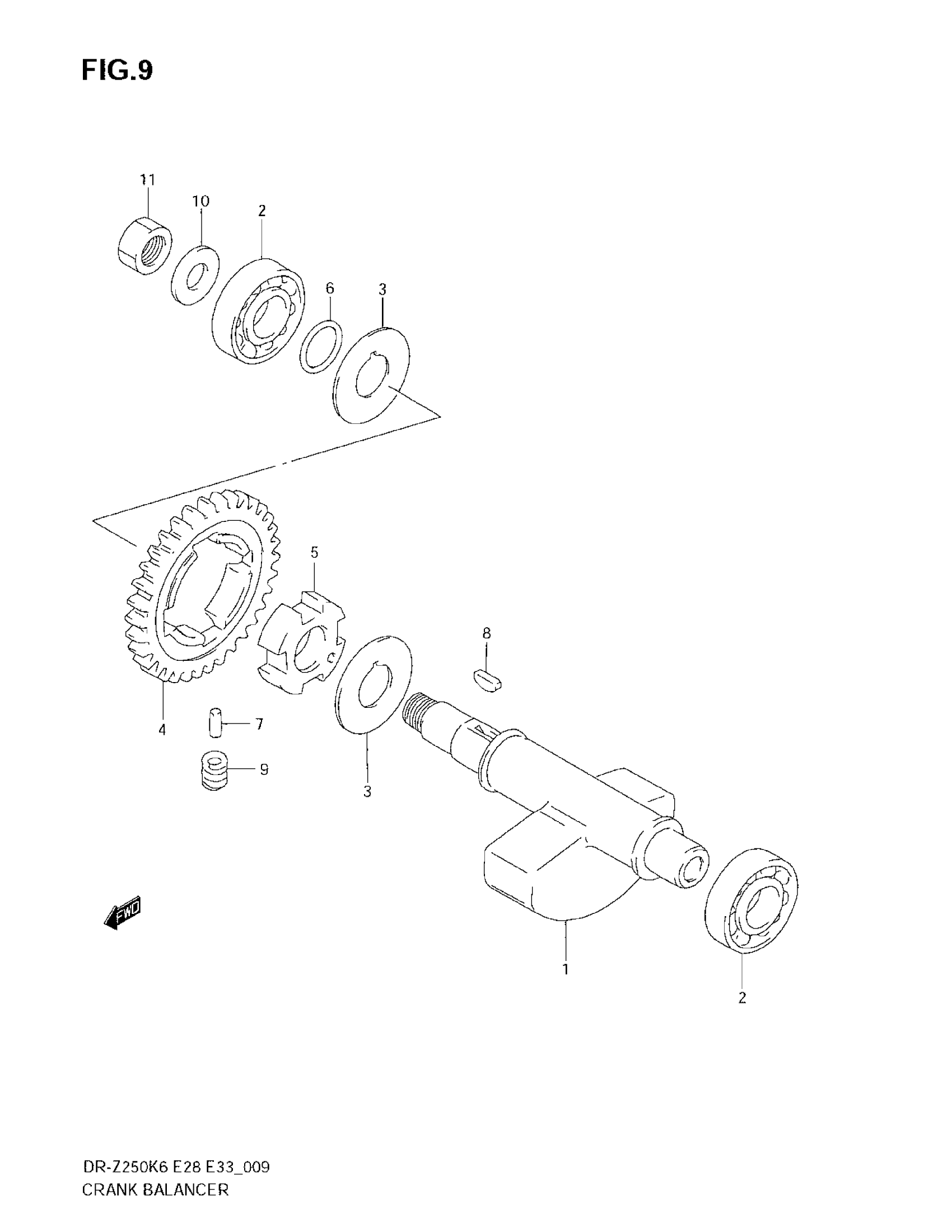

Suzuki DR-Z250 (2007) CRANK BALANCER Diagram

#

Description

Price

1

BALANCER, CRANK

12651-13E01

Unavailable

2

BEARING (15X42X13)

09262-15027

$23.39

3

WASHER (16X38X2)

09166-16019

Unavailable

4

GEAR, CRANK BALANCER DRIVEN (NT:34)

12666-13E00

Unavailable

5

RACE, CRANK BALANCER DRIVEN GEAR INNER

12666-12E01

Unavailable

6

SHIM (16X22X0.5)

09181-16130

Unavailable

7

PIN (D:4.5,L:9.5)

09202-04017

$3.78

8

KEY

08341-31039

$1.89

9

SPRING

09440-09031

$2.98

10

WASHER

08211-12255

Unavailable

11

NUT

09159-12048

Unavailable
